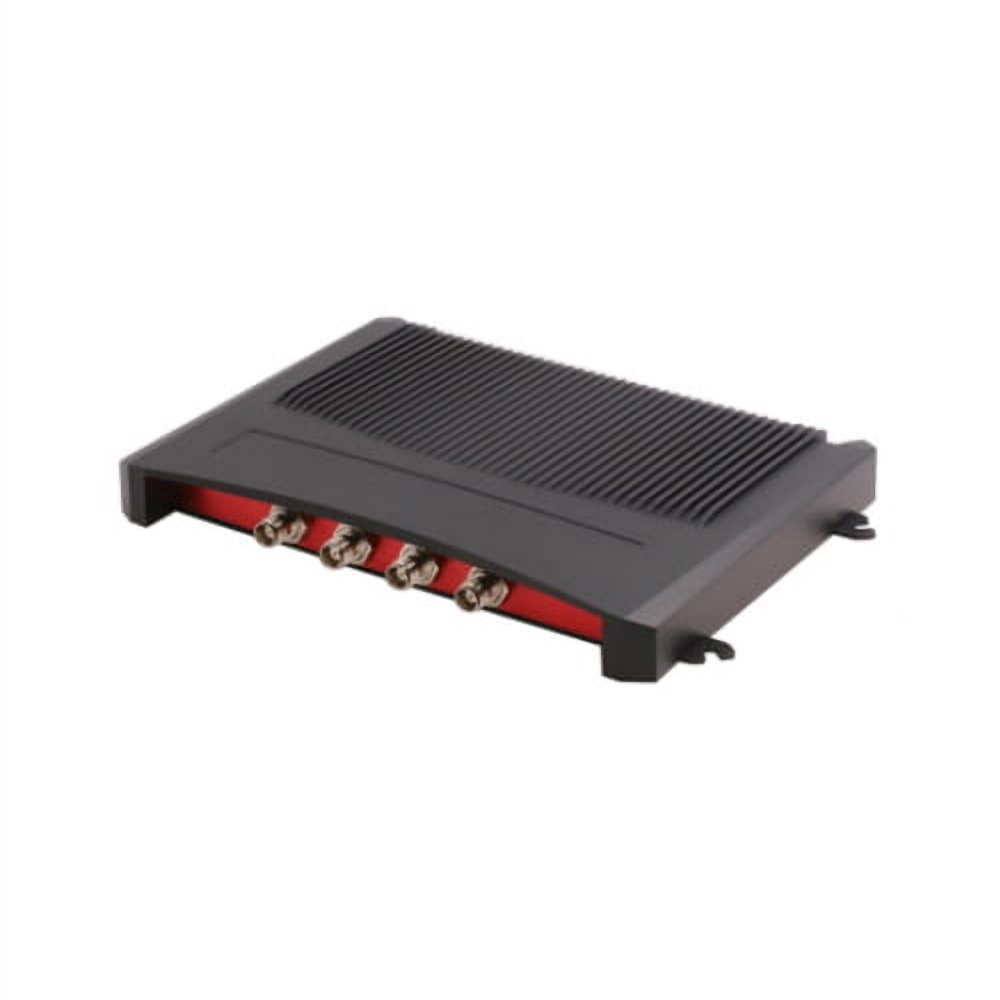

Four-channel UHF RFID reader

High-performance UHF RFID reader based on the Impinj R2000 chip. The offered central unit allows you to connect up to four RFID antennas. An ideal solution for implementing RFID identification on entrance gates and monitoring larger areas.

Range: 1 - 15 m (depending on the antennas, tags and environmental conditions used)

Maximum reading speed: up to 700 tags / s

Buffer: 1000 96-bit tags EPC

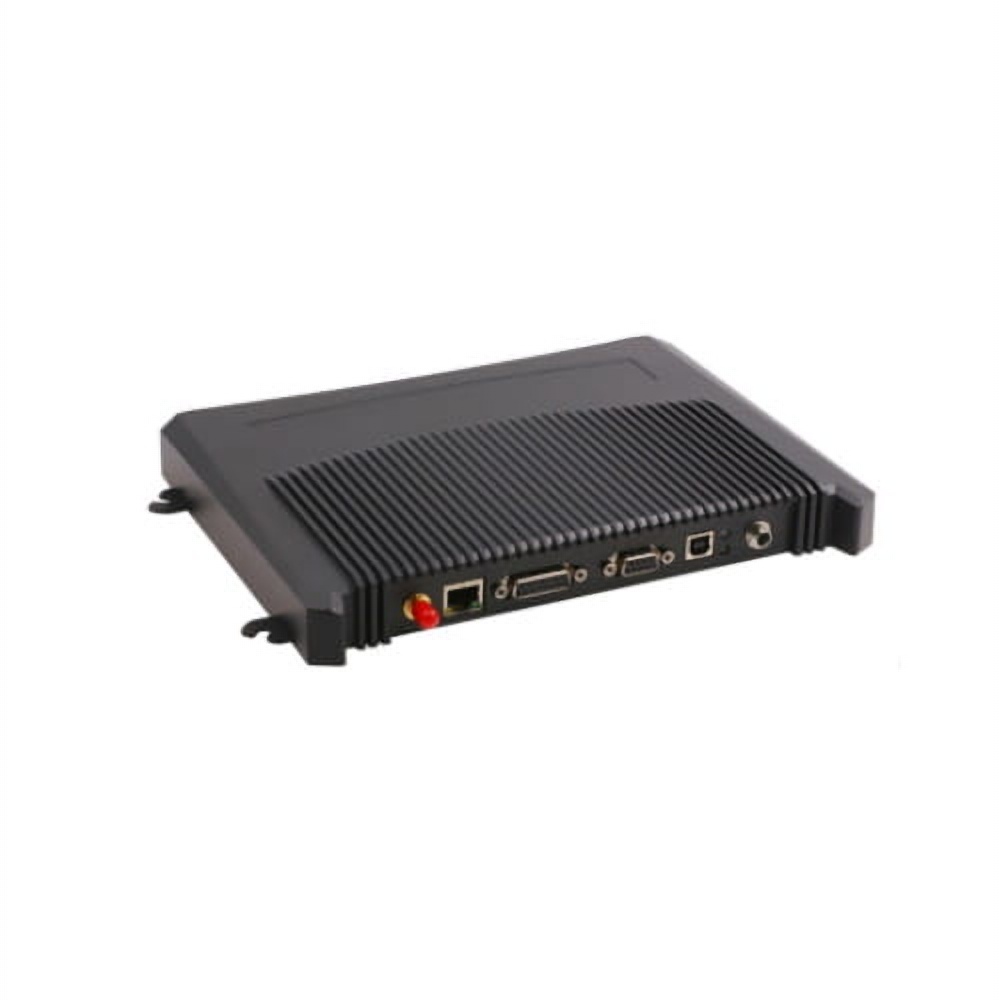

Communication: COM / USB / RJ45

RFID antennas: 4 TNC connectors

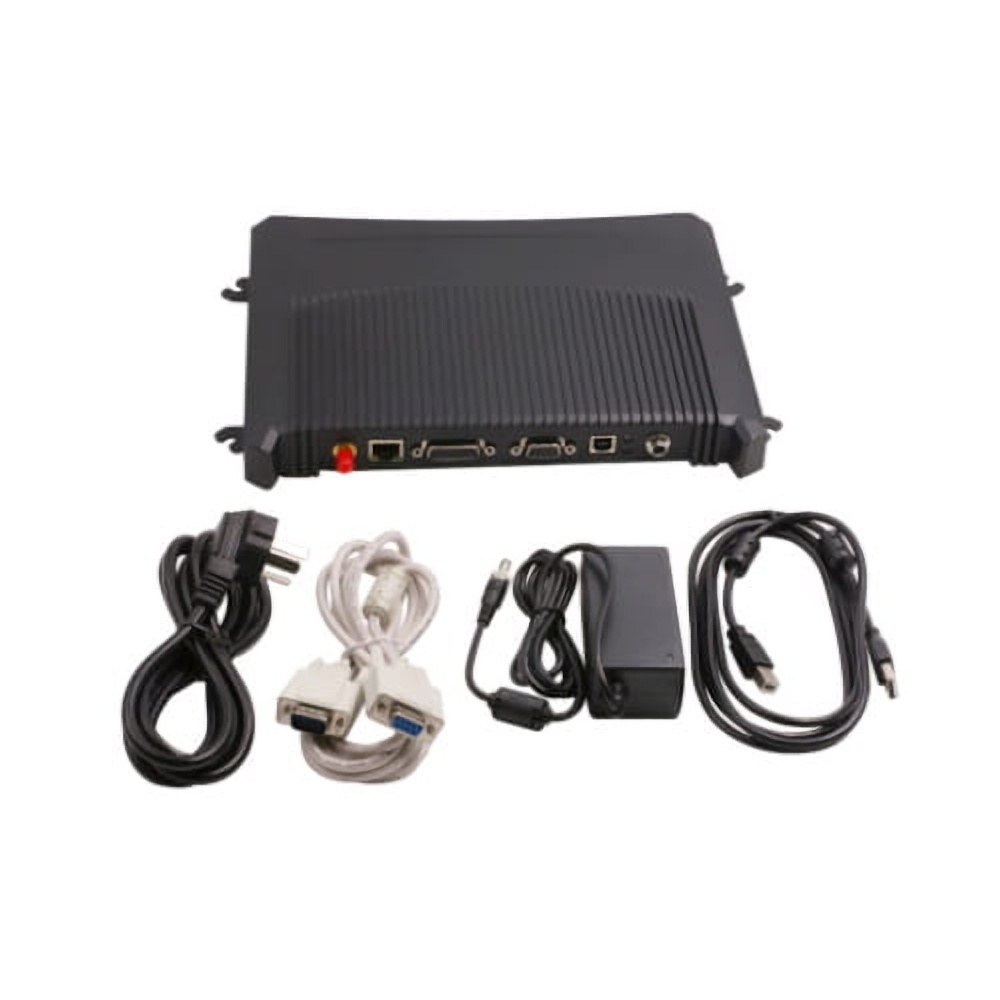

The purchased set includes:

- central unit of the stationary UHF RFID reader based on the Impinj R2000 chipset

- cabling (USB, COM)

- AC adapter

- SDK / API (documentation in English)

- application demonstrating the operation of the SDK / API (Windows) with documentation in English

- source codes of the application demonstrating the operation of the reader

The reader is not equipped with an antenna. External RFID antennas must be purchased for the R2000 stationary unit.

UHF RFID identification

Very fast long-range identification allows you to use the offered UHF RFID reader for:

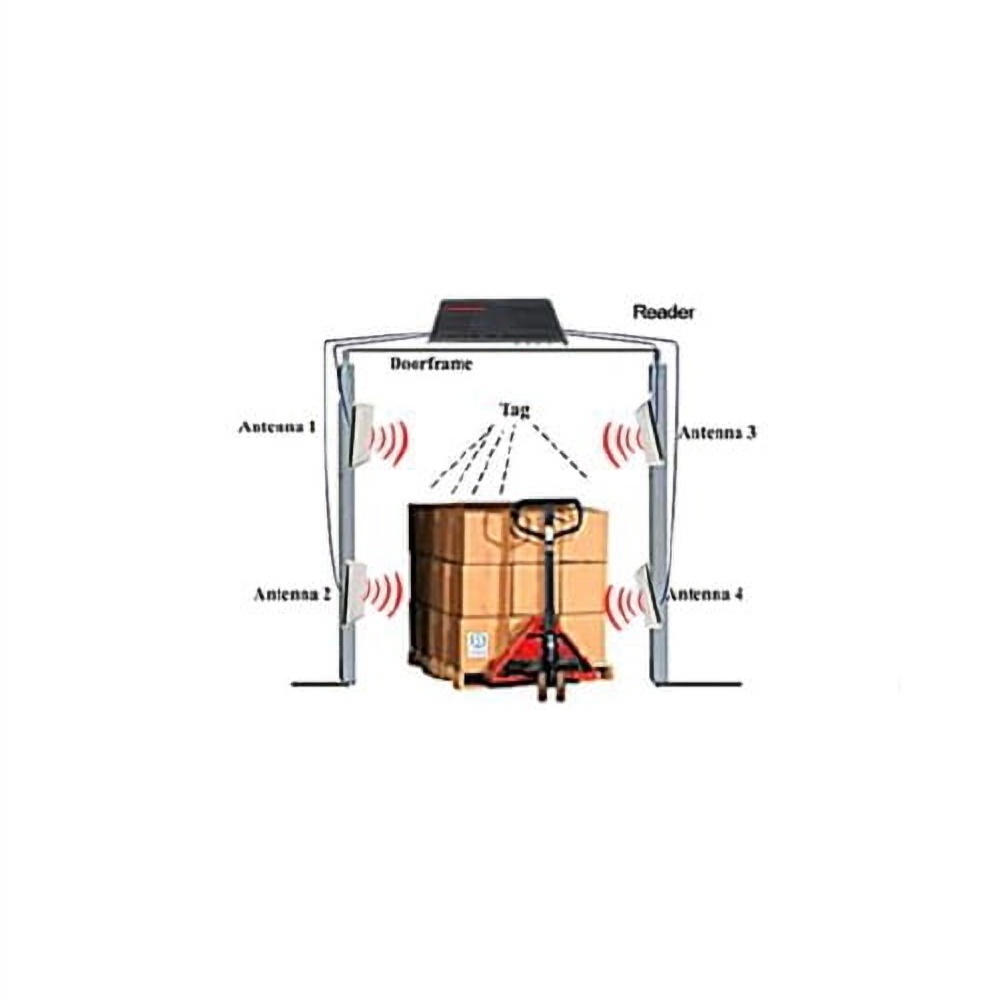

- wireless identification of a large number of products at entry/exit gates/intermediate points

- detection of stored goods and products

- inventory control and monitoring

We offer UHF RFID tags compatible with the R2000 reader from PLN 0.19 net / pc.

Integration of the RFID UHF SDK / API

Together with the UHF reader, we provide source codes demonstrating the use of the SDK / API:

Windows: C#, C++, Delphi, JAVA

Specifications of the Impinj R2000 4-channel UHF RFID reader

RFID: ISO18000-6B/6C EPC GEN2

Power: 33 dbi (adjustable)

Range: 1 - 15 m (depending on the antennas, tags and environmental conditions used)

Maximum reading speed: up to 700 tags / s

Buffer: 1000 tags (96bit EPC)

Operating frequency: 865 - 868 MHz (EU standard)

Connection interface: RS232 / USB / TCPIP

Built-in antenna: none (need to purchase external antennas)

Antenna ports: 4 x TNC with automatic antenna tuning and failure detection

Power supply: 9V (mains adapter included)

Dimensions: 270mm x 180mm x 27mm

Weight: 1.3kg

Operating temperature range: -10 - 60 °C

NFC24 quality

The device sold is covered by a twelve-month manufacturer's warranty, implemented through us.

Do you have an idea for using UHF RFID technology? You are not sure whether implementation will be possible?
