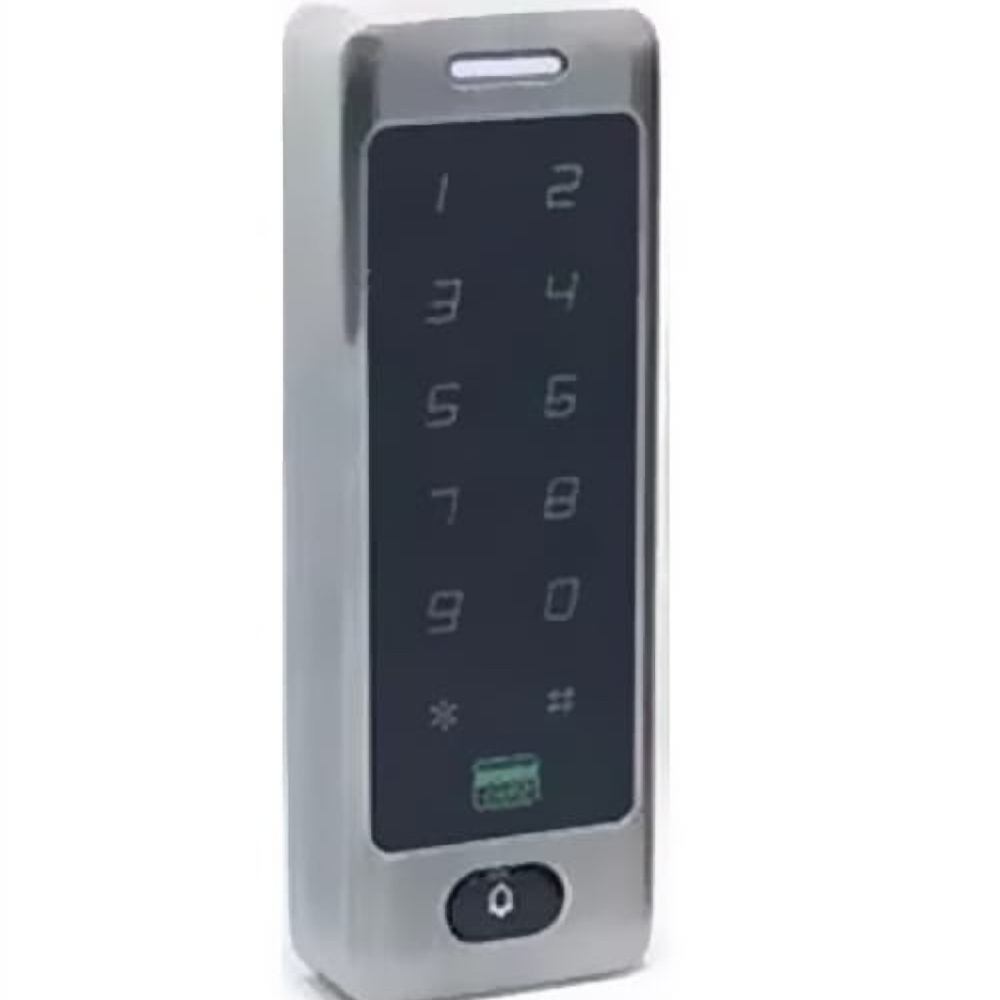

Access controller

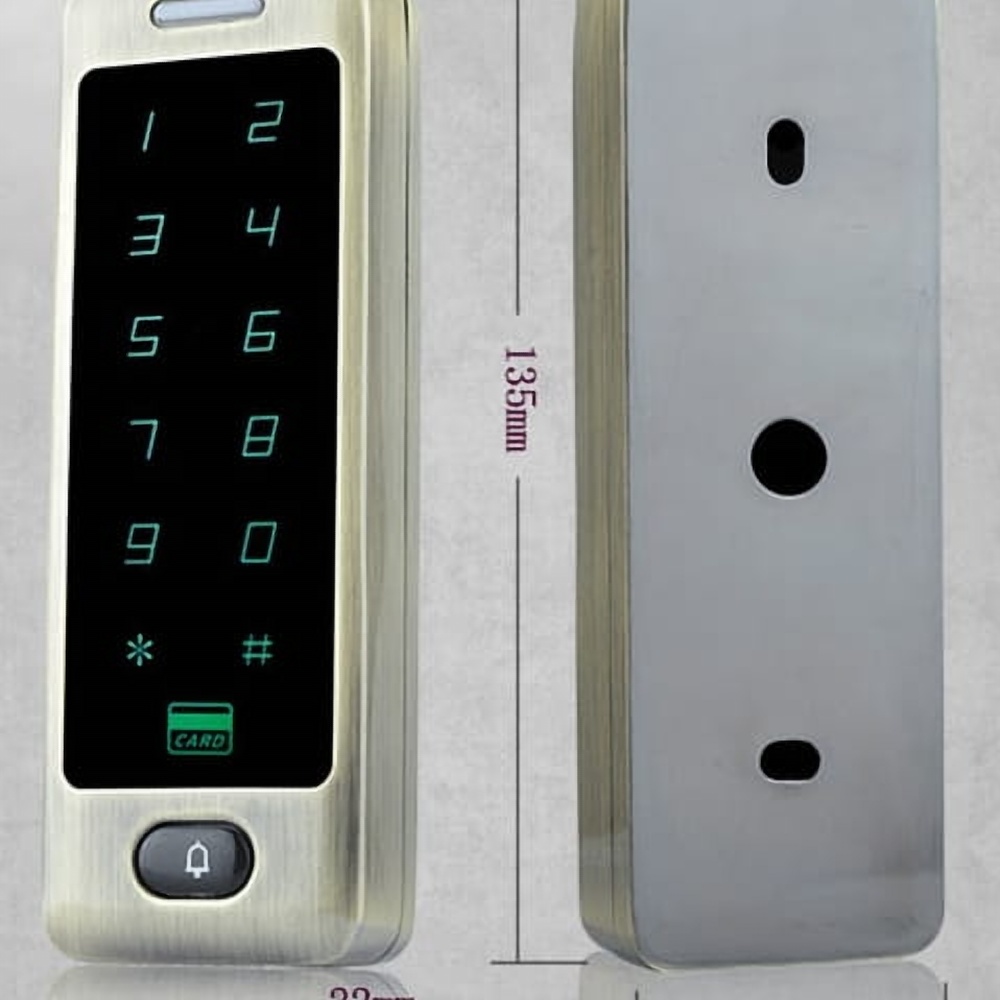

The access controller is a fully autonomous device that does not require connection to a computer or an external access control controller. The offered slim version device has compact dimensions and a built-in proximity card reader. The fully metal casing has an aesthetic function and increases resistance to mechanical damage.

The most important advantages of the device:

Access controller and proximity card reader in one device

Power outage-resistant memory for 8,000 users

Access control based on a proximity card and/or access code

Cooperation with the cheapest Unique 125 kHz RFID proximity cards on the market

Very simple installation and programming of access control

Support for the most popular WIEGAND 26 and 34 communication standards

Durable housing made of metal

Scratch-resistant touch panel

Modern design

Attractive price

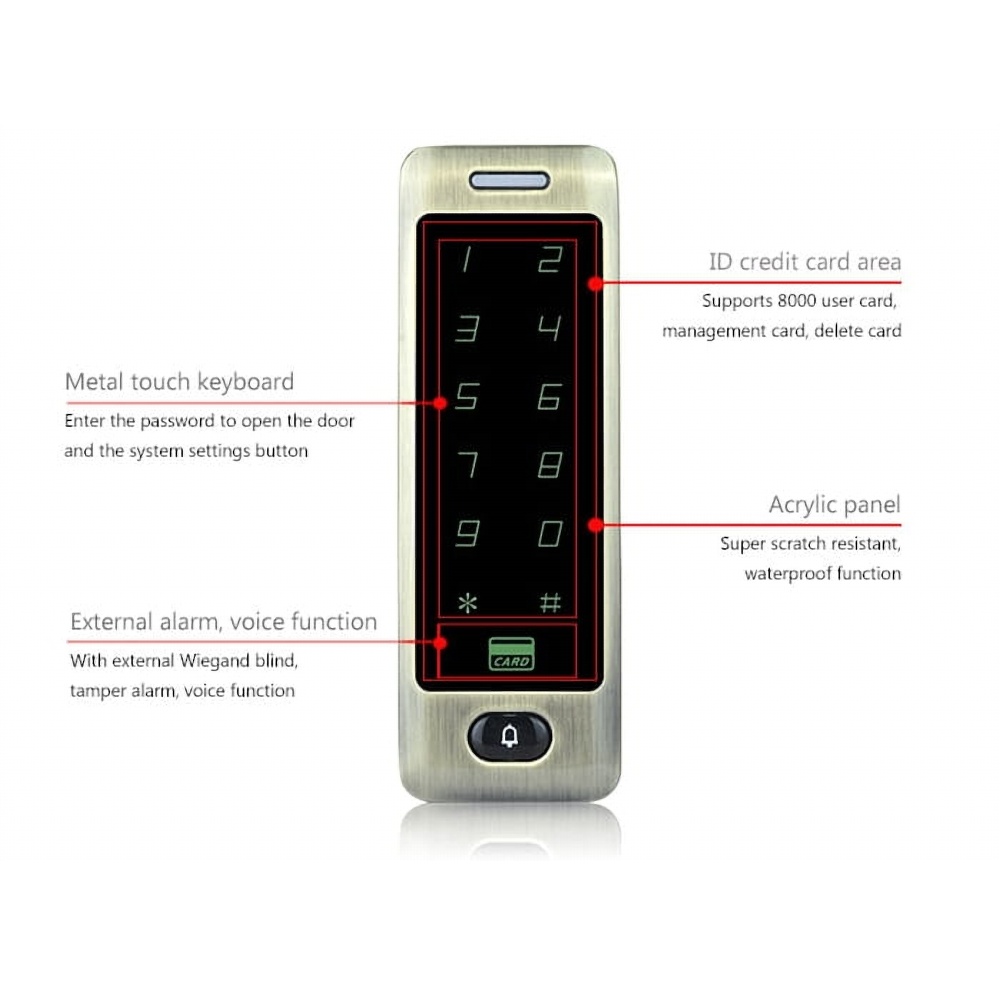

Keyboard with a proximity card reader

Access control is based on verification of the RFID card or/and the entered PIN code. The device allows you to configure access for 8,000 users. Connection to external software, computer or access control controller is not required.

The offered access controller allows you to build a fully functional electronically controlled lock using minimal resources. Installation of the system is limited to mounting the controller and connecting it to the power source and electric lock.

Access control configuration

The device is programmed by entering the administration code or using the so-called master cards. The operations of adding/removing users are carried out at the controller level by entering data using the keyboard and registering proximity cards.

Access control configuration allows for:

- adding users with access based on card and/or PIN

- deleting users

- modifying users

- configuring the door opening delay

- configuration door opening code

- master card registration

- administration code configuration

Access control

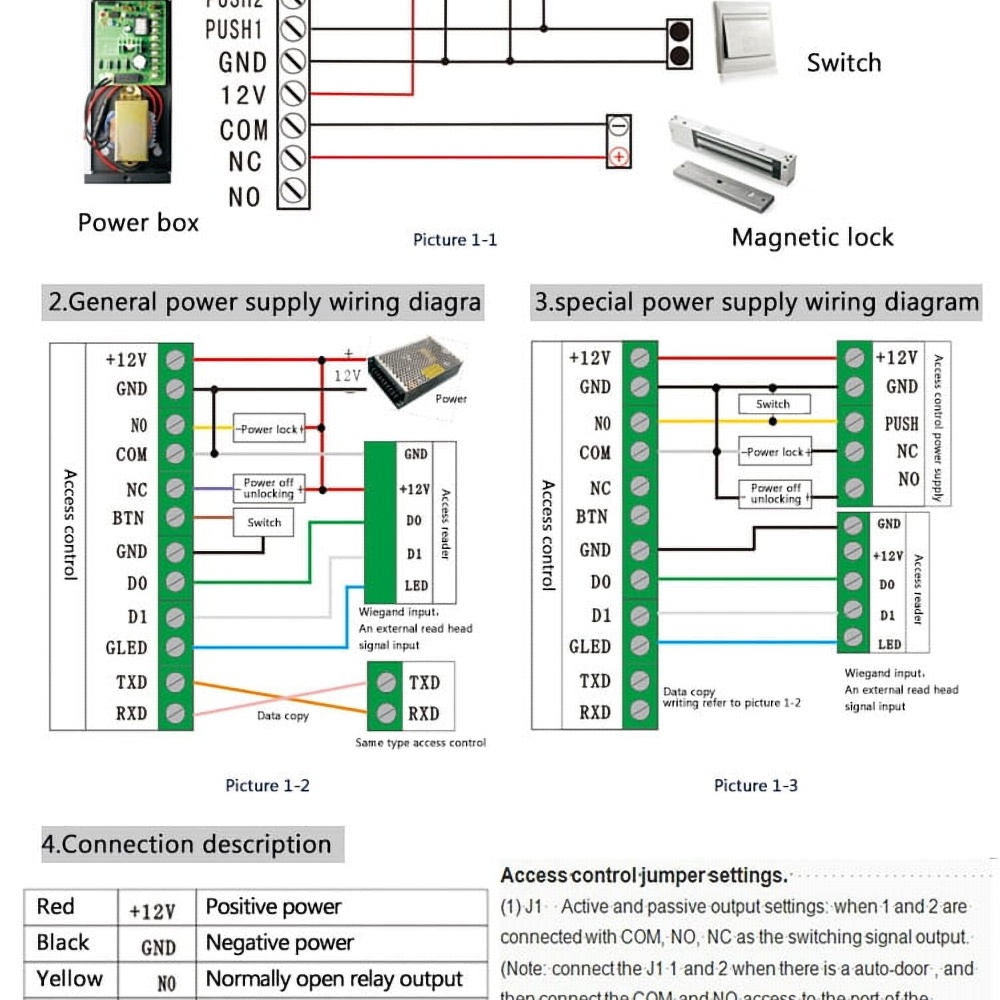

The reader works with both active and passive electronic locks. The device can be powered by a specialized access control power supply as well as by a basic DC 12V 3A power supply. The controller can be connected to another access control reader or time and attendance recorder, thanks to full compatibility with the WIEGAND standard (24 and 36).

Package contents

The set includes accessories necessary to implement the access control system:

Silver access controller

Installation and configuration instructions in electronic form in English. English

Mounting pins

Quality

Access controller manufactured to the highest quality control standards. We provide a 12-month warranty for the device through the manufacturer. We are a direct importer.
