Desktop RFID UHF USB reader
Programming and reading tags in RFID UHF technology

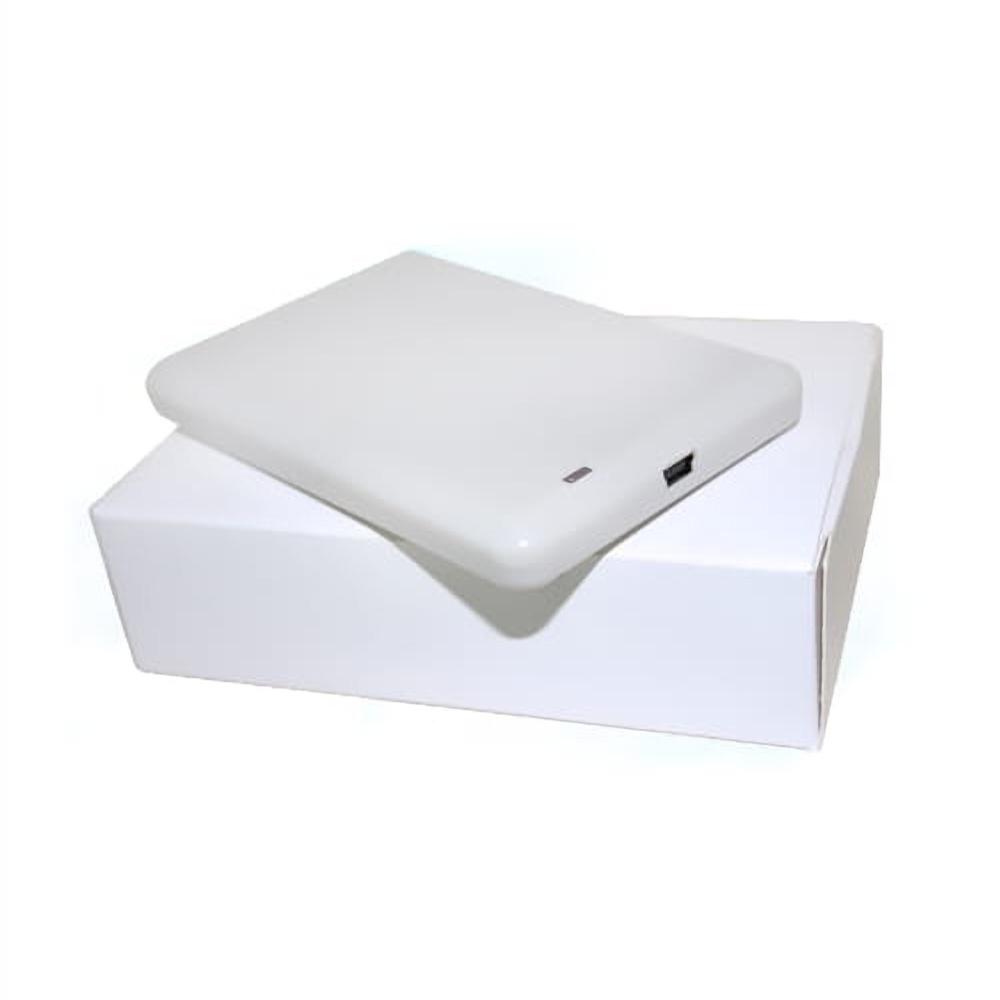

UHF RFID reader
The RW201UHF UHF RFID reader allows reading and programming UHF RFID tags. The maximum range of the device is 20 cm. Data exchange and power supply are carried out via the USB port. The UHF reader works in the ISO 18000-6B and ISO 18000-6C (EPC Class1 GEN2) standards, so it is adapted to work with UHF RFID tags such as ALIEN H3, IMPINJ MONZA, or NXP UCODE.
The successor of the offered RW201UHF model is next generation UHF USB reader RW202UHF. The device is characterized by higher efficiency and a large, configurable reading range of UHF RFID tags.
The device is equipped with an LED diode and a speaker emitting a sound signal to inform about the status of reading/writing data.
Warehousing and logistics
Tags High-frequency (UHF) RFIDs are widely used in warehousing and logistics to wirelessly identify and monitor goods. UHF tags can be wirelessly read/programmed from distances up to 10m using stationary long-range ISO18000 readers.
EAS anti-theft system
The UHF RFID reader allows programming RFID tags to work in wireless anti-theft protection systems commonly used in retail (clothing, jewelry, books, cosmetics, etc.).
Technical specifications of the UHF USB RFID reader
Model: RW201UHF
RFID standard: ISO18000-6B, ISO18000-6C (EPC C1 G2)
Operating frequency: 902 ~ 928MHz, 860 ~ 868MHz (FHSS or Fixed Frequency)
Maximum RF Output Power: 10dBm
Maximum Reading Range: 20cm
Connection Interface: USB
Power Supply: USB Port
Included
The purchased set includes:
- RFID UHF reader
- USB connection cable
- Drivers for Windows
- Application for reading and programming RFID tags with documentation in English
- SDK (API C# and VC library) with documentation in English
- Source codes of the reader support application in C# and Delphi
- Technical documentation of the communication protocol with a description of the available commands in English
NFC24 quality
The sold device is covered by a twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control both during the production process and before shipping the goods.

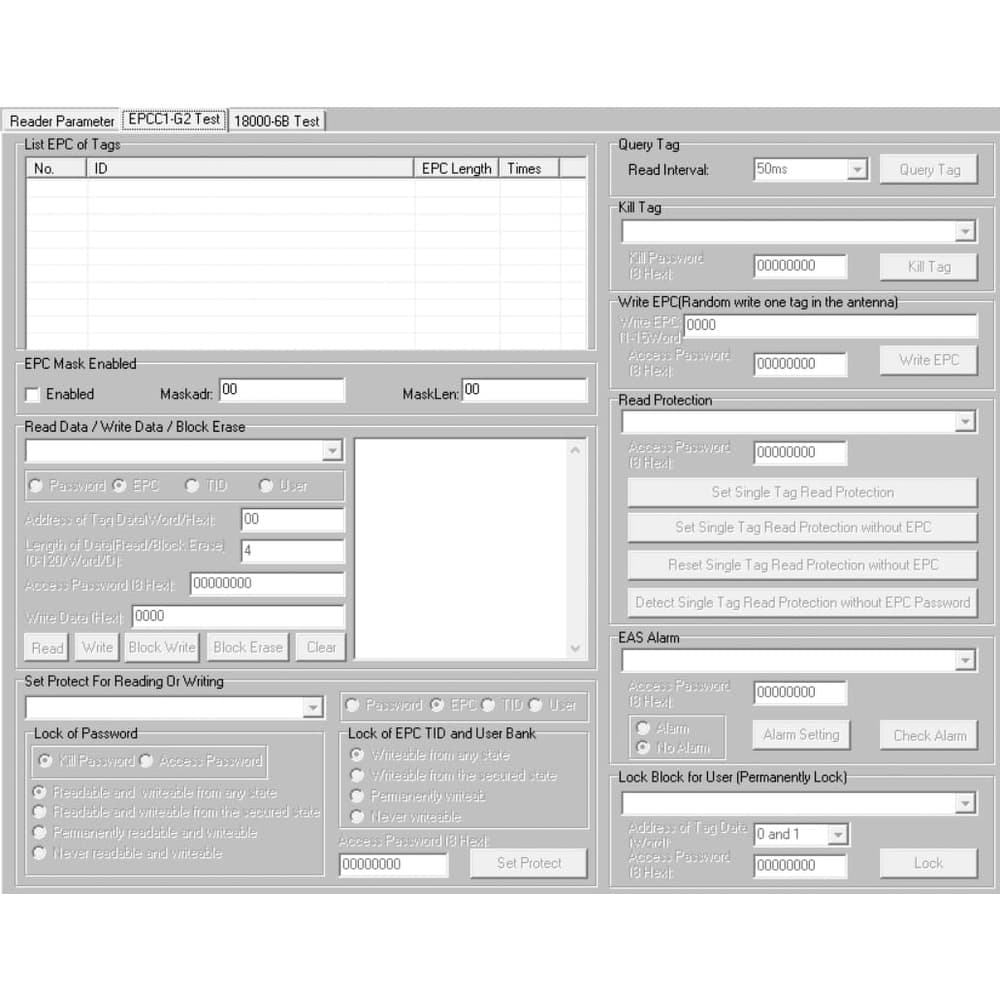

Capabilities of the UHF RFID reader
The software supplied with the UHF RFID reader allows:
- establishing a connection with the device and its configuration
- automatic detection of UHF RFID tags
- EPC reading, TID, user data, passwords
- Write EPC, user data, passwords
- Tag write protection
- Tag reading protection
- alarm trigger configuration for EAS systems
- Permanent blocking of memory areas
- execution of kill tag operation (destruction of tag)
More information about NFC technology can be found on our blog.
