Durable UHF EPC RFID TAG for metal IP68

RFID UHF TAG

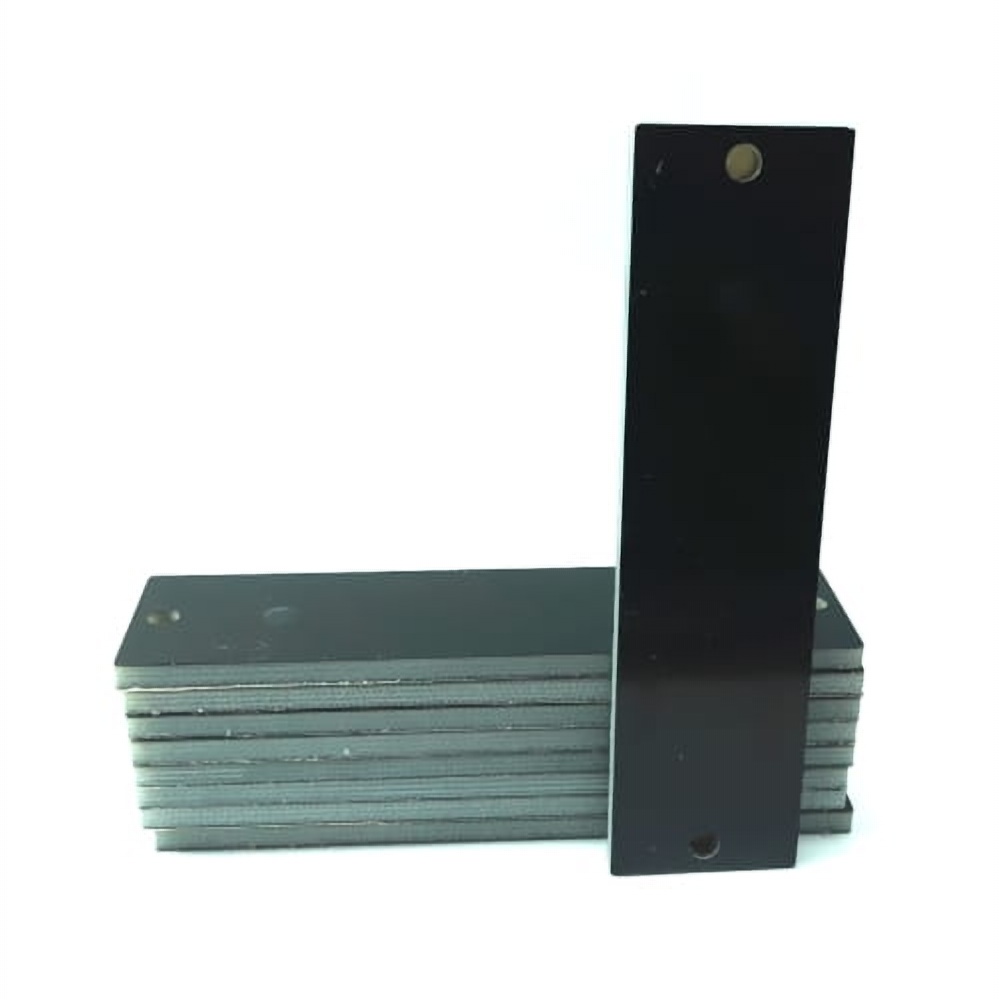

High frequency RFID tags made of glass fiber reinforced epoxy laminate, a material commonly used for the production of electronic printed circuit boards (PCB).

Basic advantages of the product:

✅resistance to mechanical damage

✅resistance to the negative effects of: moisture, acids, aggressive chemicals

✅resistance to high temperatures

✅possibility of application on metal

✅possibility of use indoors and outdoors

To facilitate application, RFID UHF tags are equipped with both 3M adhesive tape and mounting holes. The size of the RFID tags (95mm x 25mm) guarantees a long reading range (exceeding up to 6m) using high-power active UHF RFID devices. The reading range obtained depends on the power of the reader used and the actual environmental conditions.

The product is available in two variants (offered at different prices):

Tags with a maximum range achieved at 866 MHz

Tags with a maximum range achieved at 902 MHz

Technical data

RFID chip: Alien Higgs 3

Operating frequency: 860-960 MHz

Work on metal surfaces: yes

Operating temperature: -40℃ - +150℃

Short-term resistance to high temperatures exceeding even 200℃

Tightness: at the level of IP65/IP68 standards

Dimensions: 95x25x3mm

Weight: 20g

Use of RFID UHF PCB labels

Due to resistance to high temperatures and aggressive chemicals, the offered UHF RFID tags are ideal for identifying items whose life cycle requires intensive cleaning and sterilization procedures.

Asset monitoring:

- tools

- heavy equipment

- metal containers

- products / semi-finished products

Management production

Warehouse management automation

Supply chain management

TAG RFID 9662 Alien H3

RFID UHF tags are equipped with an RFID Alien H3 chip operating in the frequency range of 860 - 960 MHz. Amount of memory available in the UHF system:

96b - EPC
512b - memory available to the user
64b - UID
32b - access configuration

The devices do not have an internal power supply. Information is read/written when the RFID tag is wirelessly powered by the active device.

Compatibility with UHF RFID standards

EPC Gen2

ISO/IEC 18000-6C

RFID software

Are you interested in dedicated software using RFID technology?

Do you have an idea for using RFID technology, but you are not sure whether it will be possible to implement it?

Contact us

Quality

We guarantee PLN 100,000. records on RFID tags.

Data retention is 10 years.
