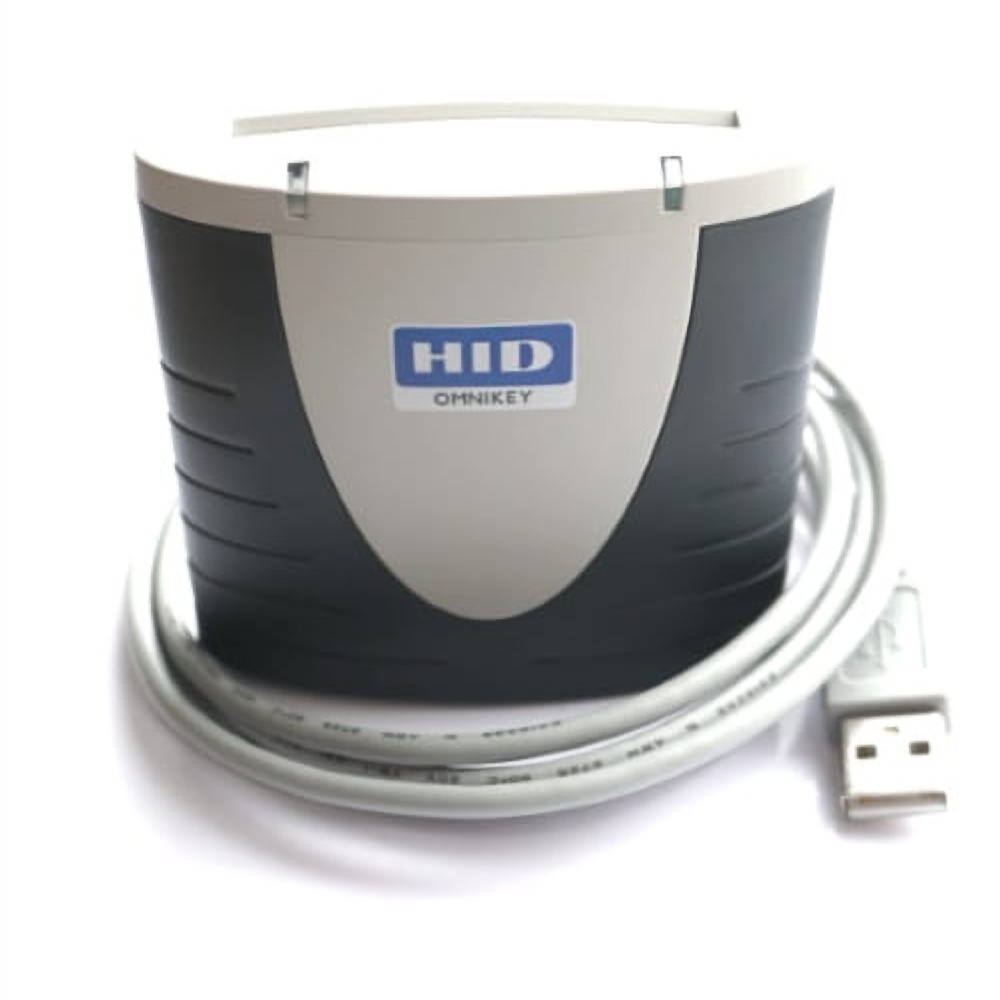

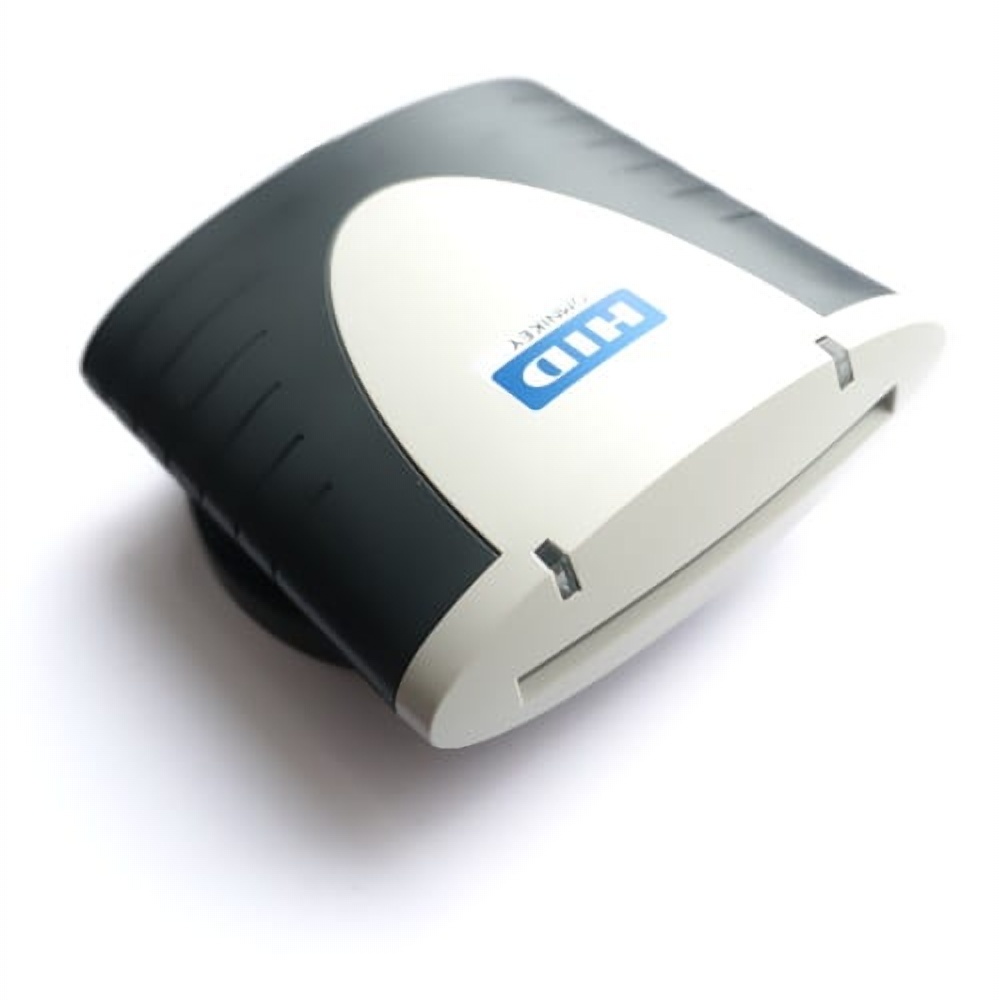

HID Omnikey 3121 USB reader

HID Omnikey 3121 card reader

The most popular microprocessor card reader on the market, operating in the ISO 7816 standard. A device commonly used in electronic banking, solutions using the digital signature functionality and implementations of the single sign-on mechanism. The smart card reader works with most contact electronic cards available on the market.

Smart Card reader

Smart Card reader supporting the most important communication standards with microprocessor cards. The device works with operating systems from the Windows, Mac OS, Linux and Android families. Card reader equipped with a two-color LED indicating the operating status and a number of mechanisms ensuring trouble-free reading of microprocessor cards.

Standards and certificates

ISO 7816
USB CCID (native operating system driver - no need to install drivers)
PC / SC API
HBCI (Home Banking Computer Interface)
EMVCo Terminal Level 1 USB 2.0; YEAH; GSA Fips 201 approved list
CE, FCC, UL, VCCI, KCC, MIC, RCM (C-Tick)
WEEE, RoHS, Reach

HID Omnikey 3121 - technical specification

Microprocessor card support:
Class A: 5V @ 60 mA; Class B: 3V @ 60mA; Class C: 1.8V @35 mA ATR response time up to 1.6 s

Communication protocols:
Asynchronous: T=0; T=1 Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire)

Automation:
card movement detection, power off, card type detection, short circuit protection, overheating protection

8 PIN contact interface: C4 / C8

Operating systems:
Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2
Windows CE (5/6/7) depending on hardware
Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+, Open SUSE 11.4+
Mac OS X; AndroidTM

Dimensions: 80 x 67 x 28 mm
Weight: 110g
Operating temperature: 0-55°C
Humidity: 10-90% rH
Average operating time without failure: 500,000. hours

Quality

We offer high-quality devices covered by a manufacturer's warranty (24 months), carried out through us. All HID readers undergo detailed quality control during the production process.
