HITAG 2 ATS1475 RFID cards
HITAG2 125 kHz programmable proximity cards - ATS1190 reader
Variant
HITAG 2 RFID card

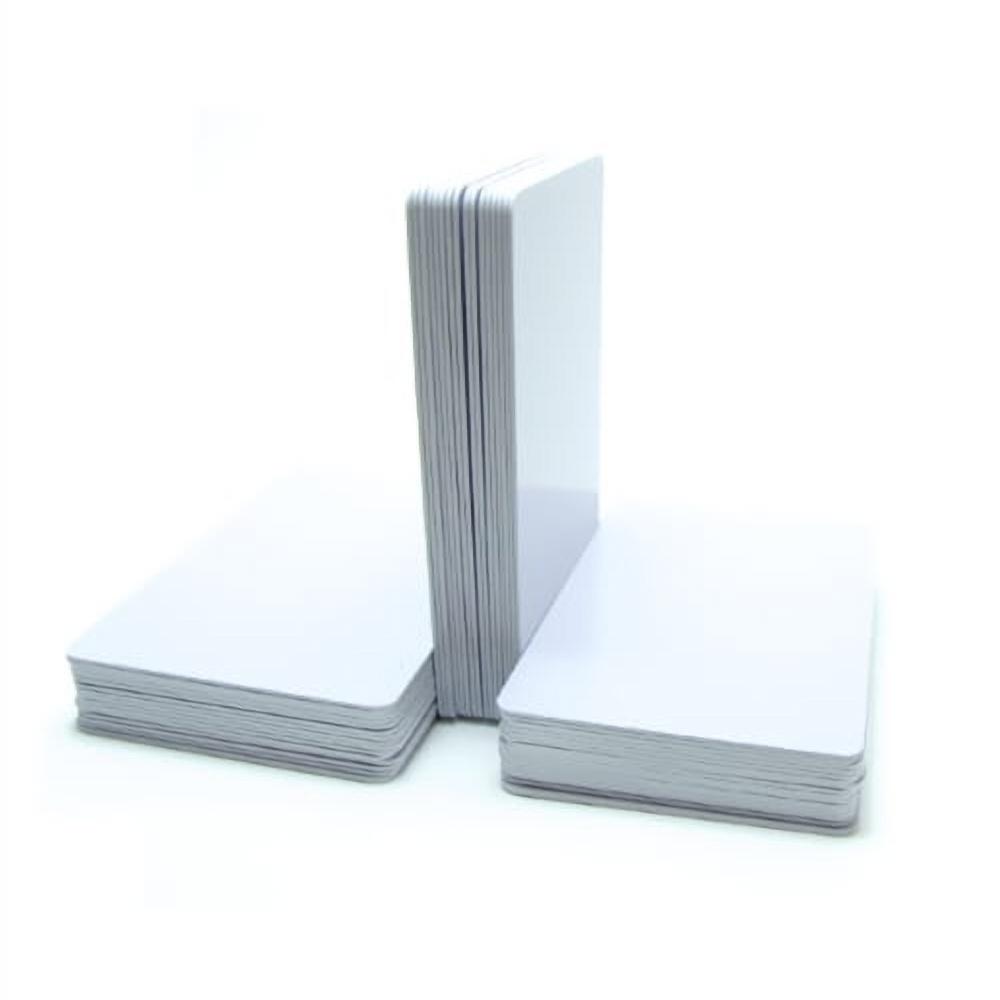

Original HiTag 2 (ATS1475) proximity cards operating at a frequency of 125 kHz, equipped with security mechanisms such as password protection and data transmission encryption. The cards offered enable reading and writing of data. Data transmission between the active device and the HITAG 2 RFID system can be bidirectional (half duplex). We offer white cards or cards with a UID number printed on them.
Hitag 2 proximity cards are covered with a specialized membrane that guarantees improved printing quality in dye-sublimation plastic card printers.
RFID HITAG 2
HITAG2 proximity cards have 256b of memory (8 pages each 32 bit), of which 128 bits are available for writing user data. Cards are identified by a unique 32 bit serial number.
HITAG 2 technical data
Standard: ISO 11784 / ISO 11785
Operating frequency: 125 kHz
Coding (reading): Manchester / Biphase
Modulation: ASK
Number of write operations: 100,000
Data retention: 10 years
Compatibility HITAG2 ATS1475 / ATS1470
The cards can be programmed with the programmer: ATS1621
Reading programmed cards is possible using readers: UTC/GE ATS1190, ATS Master
We deliver brand new cards. Selected implementations of systems compatible with ATS1745 cards may require pre-programming of Hitag2 cards by the system supplier or specific factory serial number values for the card. We are not responsible for the security measures used within specific RFID system implementations. Therefore, we do not guarantee cooperation with specific implementations of access control systems. If in doubt, ask your supplier about compatibility with original NXP Hitag2 cards. Alternatively, we recommend purchasing individual pieces of cards for testing purposes.
Application of HITAG 2 RFID systems
The most popular areas of application of HITAG2 RFID systems:
- logistics
- animal monitoring
- goods monitoring
- industrial automation
- combat with counterfeits (brand protection)
Personalization
This product can be personalized by printing on both sides in full color from edge to edge, printing identification data, applying an invoice, applying decorations made of brushed stainless steel, etc.
Quality
We guarantee PLN 100,000. trouble-free reading/writing on HITAG 2 RFID cards.
More information about NFC and RFID technology can be found on our company's blog.
