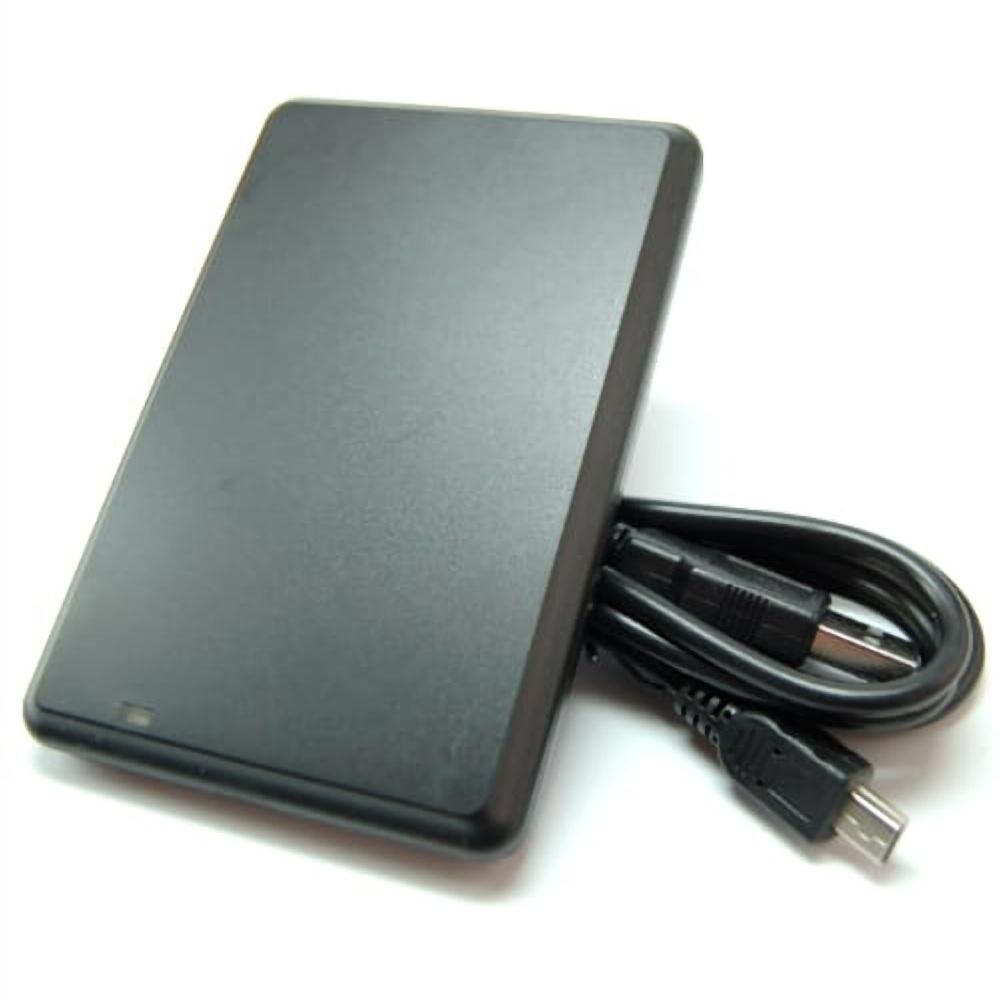

ICODE RFID ISO15693 USB programmer

The RFID programmer enables reading and writing data on proximity RFID tags operating in the ISO19693 standard (ICODE family systems). Data transmission is carried out via proximity, at a frequency of 13.56MHz.

Programming of ICODE RFID systems is possible via SDK / API, provided with source codes presenting its use. Together with the device, we also provide an application demonstrating the possibilities of programming ICODE systems and reading their data.

The Inventory function allows the simultaneous detection of several cards placed on the reader (maximum three).

The ICODE RFID programmer is equipped with an LED and a loudspeaker emitting a sound signal, which can be triggered using the included software and interface programming API.

The offered ICODE programmer is characterized by a compact size (height of only 11 mm) and a classic design.

ICODE OS programmer

The ICODE RFID programmer can be operated from the following operating systems:

- Windows

- Linux

- Android

ICODE programming

The COM programming library (API / SDK) supplied with the programmer allows:
- device configuration (saving user data in the programmer's memory, LED control, speaker control...)
- reading ICODE tag memory blocks
- writing tag memory blocks ICODE
- blocking tag memory blocks ICODE
- writing and blocking the AFI identifier
- writing and blocking the DSFID identifier

Together with the RFID NFC reader, we provide demonstration source codes in the following technologies:

- .NET Framework C#
- VB
- VC 6.0
- Delphi 7.0
- JAVA (Linux)
- Qt (Linux)
- JAVA (Android)

Technical specification of the ICODE RFID programmer

Dimensions: 104mm x 68mm x 11mm

NFC standard: ISO15693

Connection interface: USB

Supported operating systems: Windows / Linux / Android

The set includes

The purchased set includes:

- RFID ICODE programmer

- USB cable

- SDK / API

- software demonstrating the capabilities SDK / API

- technical documentation in English

NFC24 quality

The device sold is covered by a twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control during and after the production process.

Application of the RFID NFC reader

The RFID ICODE programmer is used in business areas specific to the ISO15693 standard, such as:

Fixed assets management

Tracking and monitoring supply chains

Monitoring documents and checking their authenticity

Electronic protection of EAS products

Monitoring production processes

Identification of goods in the healthcare / pharmaceutical industry

Management of archives and libraries

Identification of products

Identification of people

More information about technology RFID can be found on our blog.

Do you have an idea for using RFID technology, but you are not sure whether it will be possible?

ICODE ISO15693 programmer
