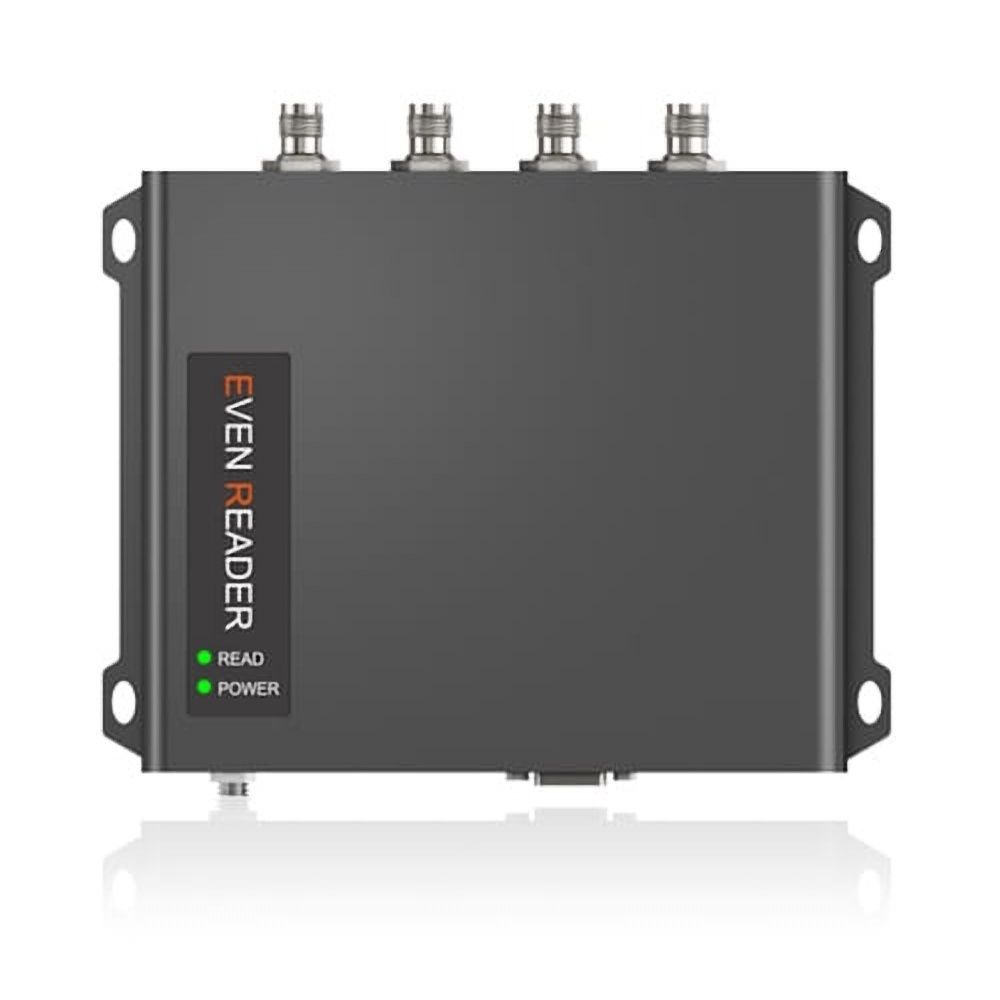

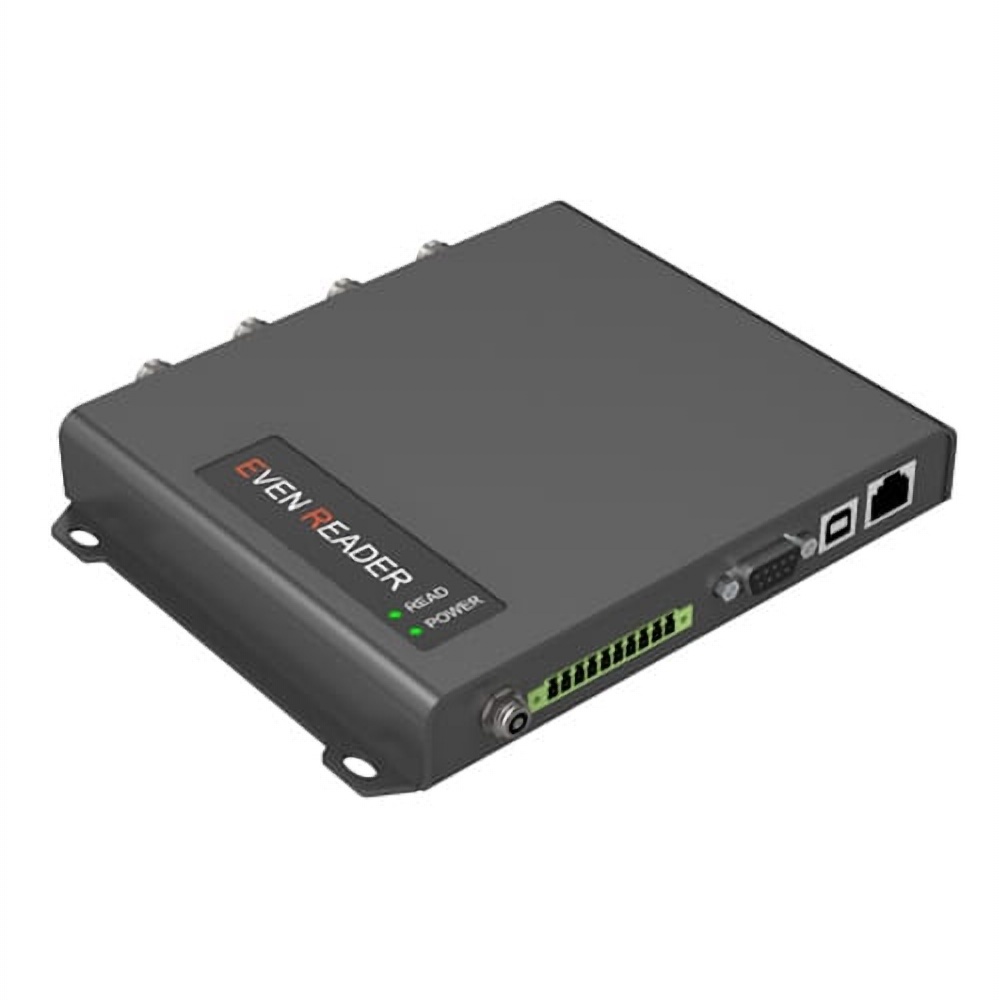

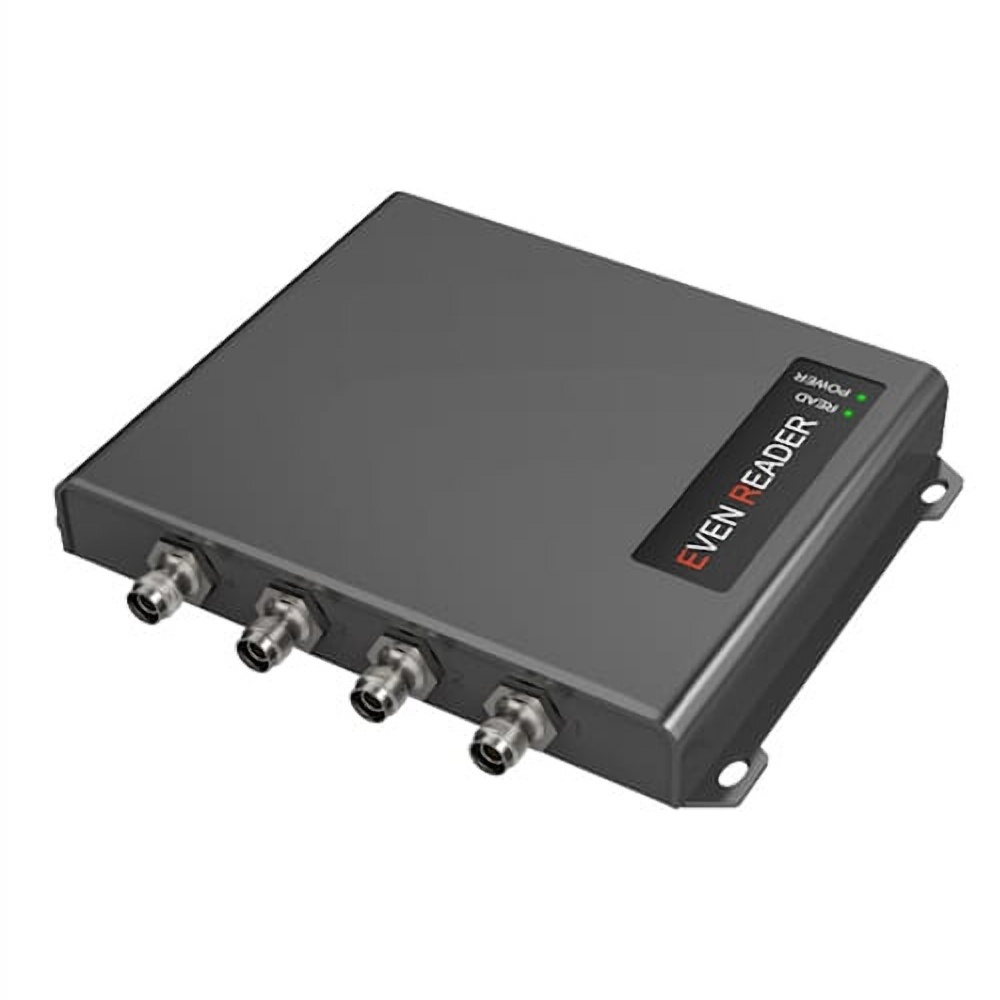

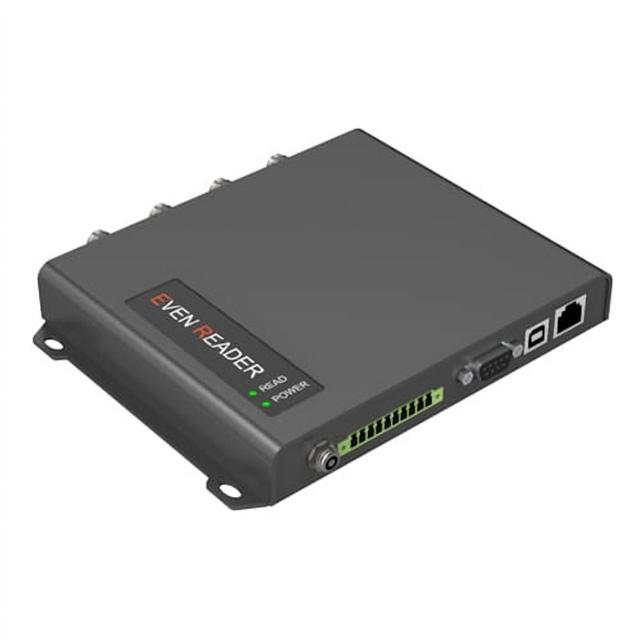

Central RFID UHF reader Impinj E710

Stationary UHF RFID central unit based on the new generation Impinj E710 system. High efficiency of RFID UHF detection, a range of up to 25m and the ability to connect four UHF antennas allow the use of an RFID UHF reader to implement:

- RFID UHF gates (monitoring the entry/exit of goods)

- covering a large area with an area of RFID UHF wireless detection

Range: 1 - 15 m (depending on the antennas, tags and environmental conditions used)

Maximum reading speed: up to 800 tags / s

Buffer: 600 tags 128bit EPC

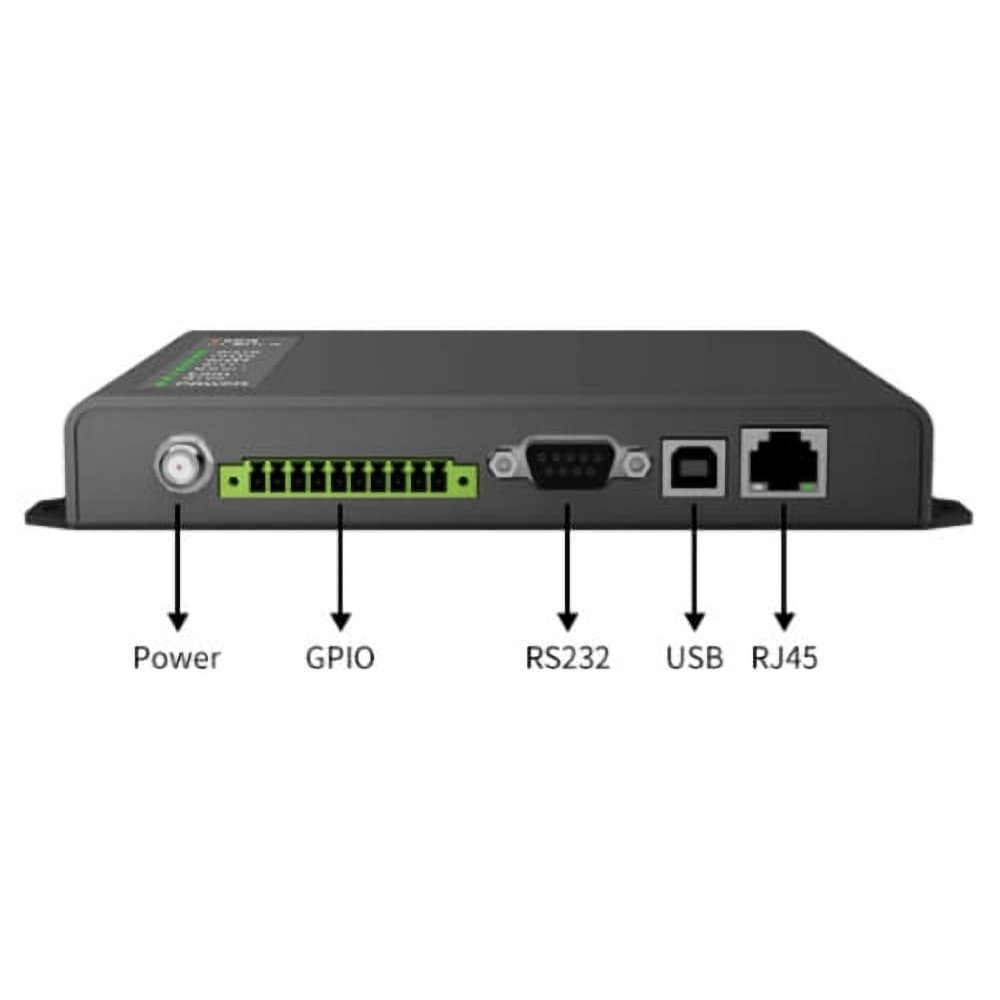

Communication interfaces: RS232 / RS485 / USB / TCP-IP (RJ45)

Possibility of cooperation with external devices: GPIO (2 x GPI, 2 x GPO)

UHF antennas: 4 TNC connectors

The purchased set includes:

- RFID UHF central unit based on the Impinj E710 chipset

- cabling (USB, COM)

- power supply

- SDK / API (documentation in English)

- application demonstrating the operation of SDK / API (Windows) with documentation in English

- documentation of the documentation protocol with the UJF RFID reader in English

- demonstration source codes (C#, C++, JAVA Windows, JAVA Android)

You must purchase UHF RFID antennas for the reader, which we offer. The product comes in two colors, after placing the order, the product will be delivered in the currently available color.

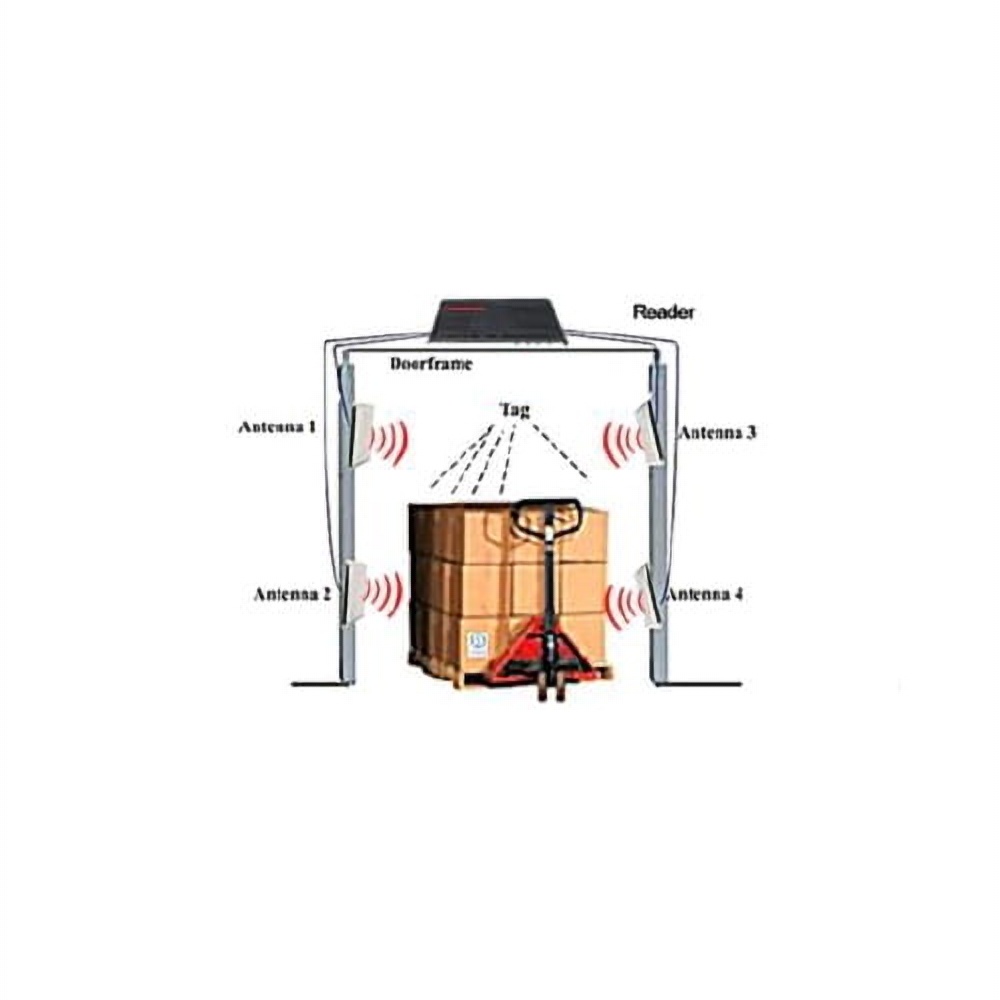

RFID UHF Gateway

The RFID UHF Gateway, through the use of a central RFID UHF unit, allows for quick wireless identification / detection / monitoring of:

- large amounts of products at entry/exit gates / at intermediate points

- stored goods and products

- states warehouse

We offer UHF RFID tags compatible with the offered stationary readers from PLN 0.19 net / pc.

UHF RFID stationary reader software

The central RFID UHF unit is delivered with the manufacturer's software demonstrating the capabilities of the included SDK / API.

In particular, the following projects are included:

- Windows Visual Studio C#

- Windows Visual Studio VS

- Android JAVA

- JNI JAVA

For the development of your own software / communication interfaces, you can use any software language thanks to the open, documented communication protocol with the central RFID unit UHF.

Integration of the RFID UHF SDK / API

The included RFID UHF SDK / API central station and demo source codes allow you to integrate the UHF RFID wireless identification point with any software. Detection of UHF RFID tags involves reading their EPC identifiers, which can be transferred to the company's existing IT systems via intermediary interfaces.

The SDK / API libraries included with the UHF RFID reader have been prepared for the following operating systems:

- Windows

- Linux

- Android

Specification of the RFID UHF Impinj E710 central unit

RFID: ISO18000-6B/6C EPC GEN2

Power: 33 dbi (adjustable)

Range: 1 - 15 m (depending on the antennas, tags and environmental conditions used)

Maximum reading speed: up to 800 tags / s

Buffer: 600 tags (128bit EPC)

Operating frequency: 865 - 868 MHz (EU standard)

Connection interface: RS232 / RS485 / USB / TCPIP

Built-in antenna: none (need to purchase external antennas)

Ports antenna: 4 x TNC female port

Power supply: 12V (mains adapter included)

Dimensions: 184mm x 162mm x 26mm

Color: graphite / gray

Weight: 0.6kg

Operating temperature range: -10 - 60 °C

NFC24 quality

The device sold is covered by a twelve-month manufacturer's warranty, implemented through us.

You have an idea for using RFID UHF technology in your company, but you are not sure whether it will be possible?
