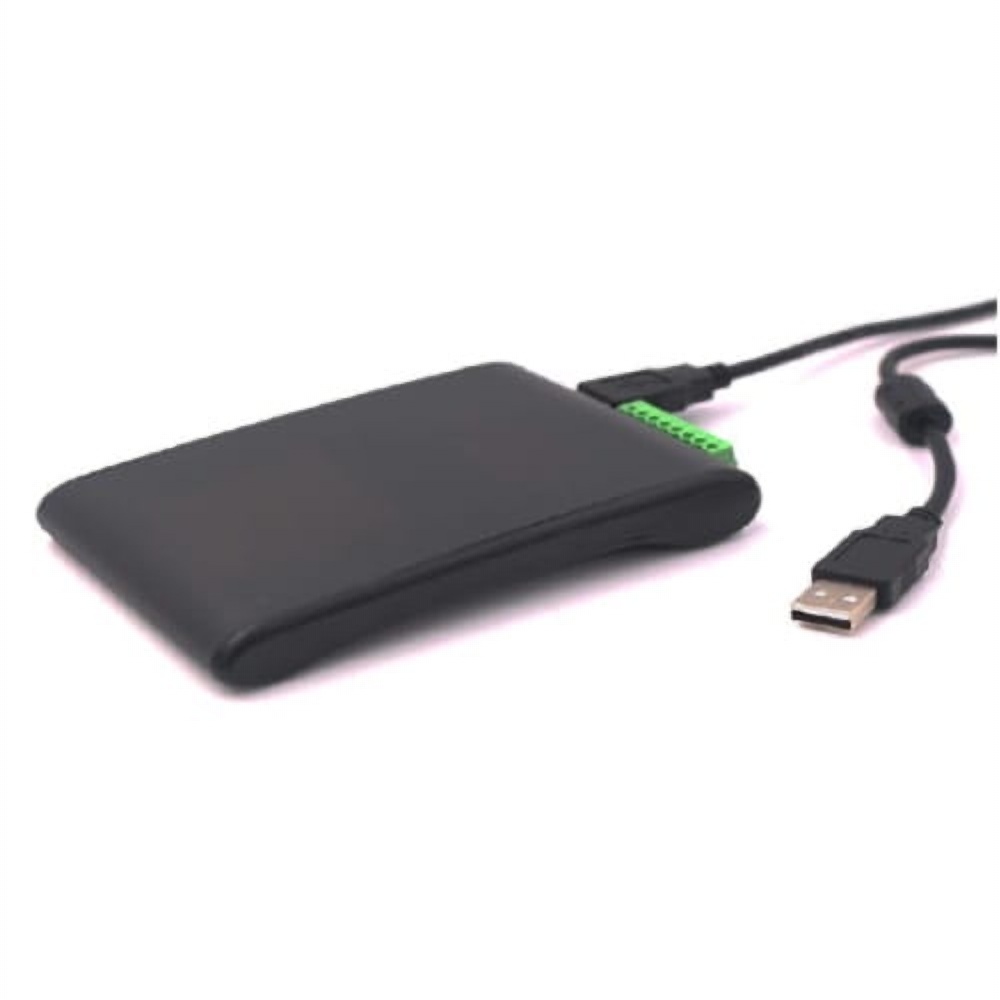

Long-range UHF RFID reader
USB RFID UHF programmer with a range exceeding 1m
USB UHF RFID reader
The UHF RFID reader allows read and write information on RFID UHF tags. The offered device is distinguished by a long reading range (exceeding even 100 cm) and above-average efficiency thanks to high operating speed (max. 50 UHF RFID tags / s).
The basic advantages of the RW202UHF RFID UHF reader:
- adjustable power
- large maximum range
- Reading max. 50 / s tags
- internal buffer for storing read data (370 128bit EPC tags)
- USB or RS232 interface allows communication with a PC
The RW202UHF UHF RFID reader can be used in systems based on UHF RFID wireless identification, e.g.:
- logistics and transport
- warehouse management
- production process supervision
Warehouse management automation
UHF RFID tags are used for identification and monitoring goods. High speed and significant communication distance enable automatic control of the receipt of goods into the warehouse and the issue of goods from the warehouse.
Programming and reading UHF tags
Together with the UHF reader, we provide an API and software demonstrating its operation. The application enables, among others:
- configuration of the UHF RFID reader
- automatic, continuous identification of a large number of tags
- reading data from UHF tags
- writing data on tags (EPC, TID, user data)
The application is additionally provided in the form of source codes in C# and DELPHI.
Technical specifications of UHF USB RFID reader
Model: RW202UHF
RFID standard: ISO18000-6C (EPC G2)
Operating frequency: 902 ~ 928 MHz, 860 ~ 868 MHz (FHSS or constant frequency)
Maximum RF output power: 26 dBm (configurable)
Maximum number of tags read: 50 pcs / s
Maximum Reading range: 100 cm (actual reading range may vary and depends on the UHF tags used and environmental conditions)

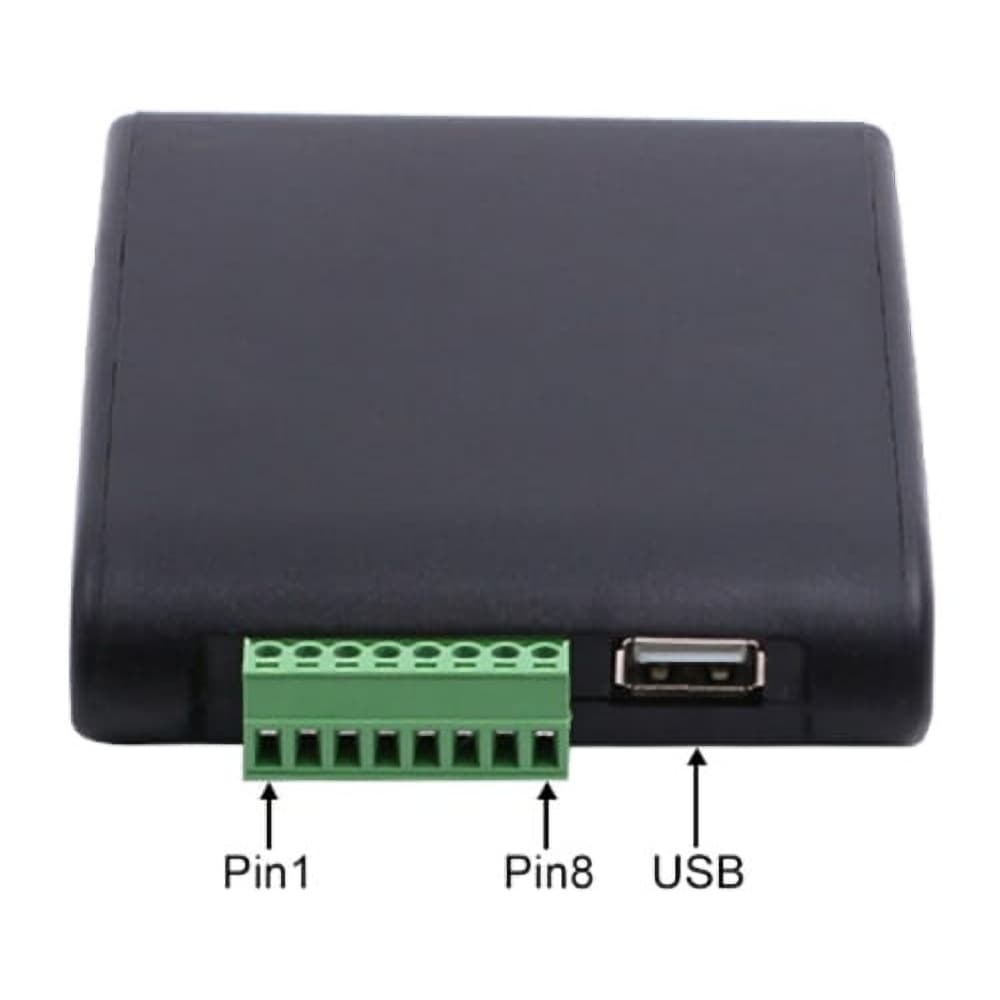

Connection interface: USB or RS232
Power supply: USB or external power supply
Dimensions: 122.4 mm x 84 mm x 20 mm
The purchased set includes:
- instructions for reading/programming EPC identification numbers of UHF tags in Polish
- RFID UHF reader RW202UHF
- USB connection cable
- Drivers for Windows
- Application demonstrating the capabilities of the RFID UHF SDK with documentation in English
- Application source codes in C# and Delphi
- SDK (DLL) with documentation in English
Quality NFC24
The device sold is covered by a twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control both during the production process and before shipping the goods.
Do you have an idea to use UHF RFID technology in your own business, but you are not sure whether it will be technologically possible?
