MA300 TCPIP IP65 biometric access controller
Autonomous TCPIP fingerprint reader and Unique RFID cards
RFID reader for proximity cards and fingerprints

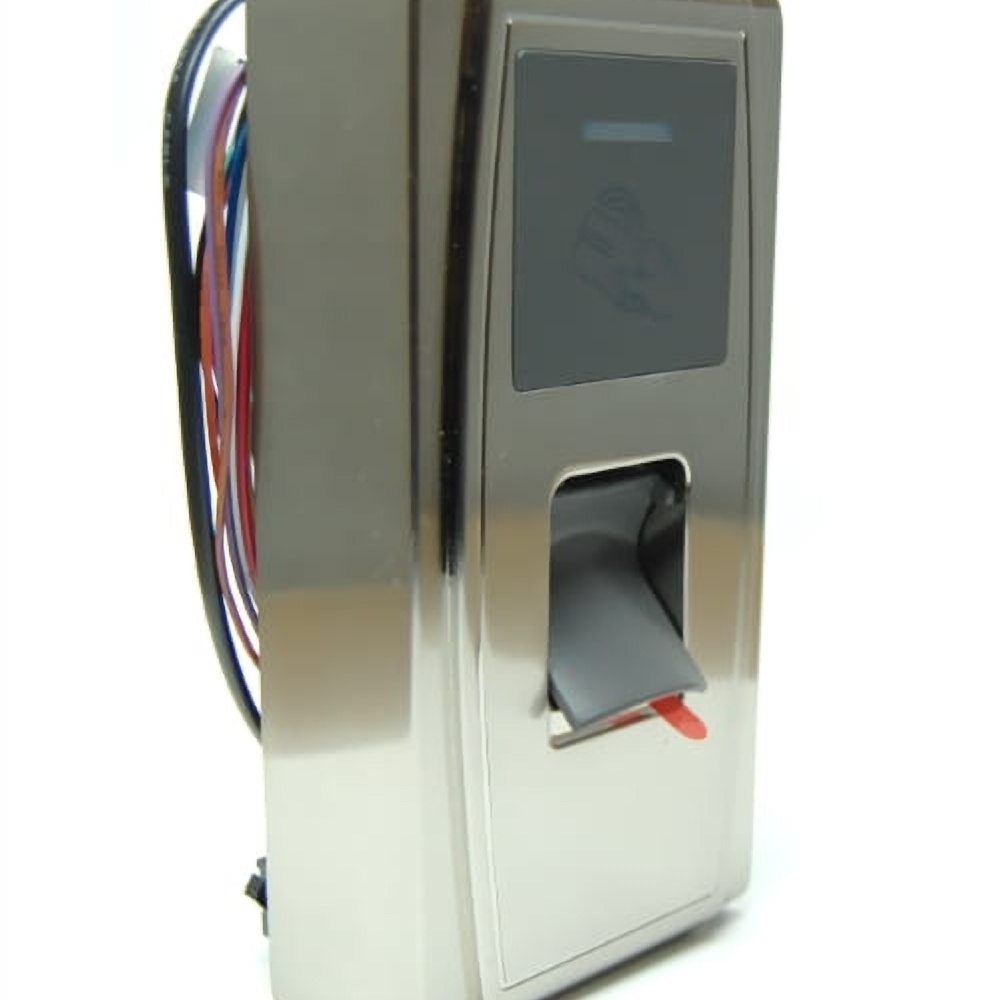

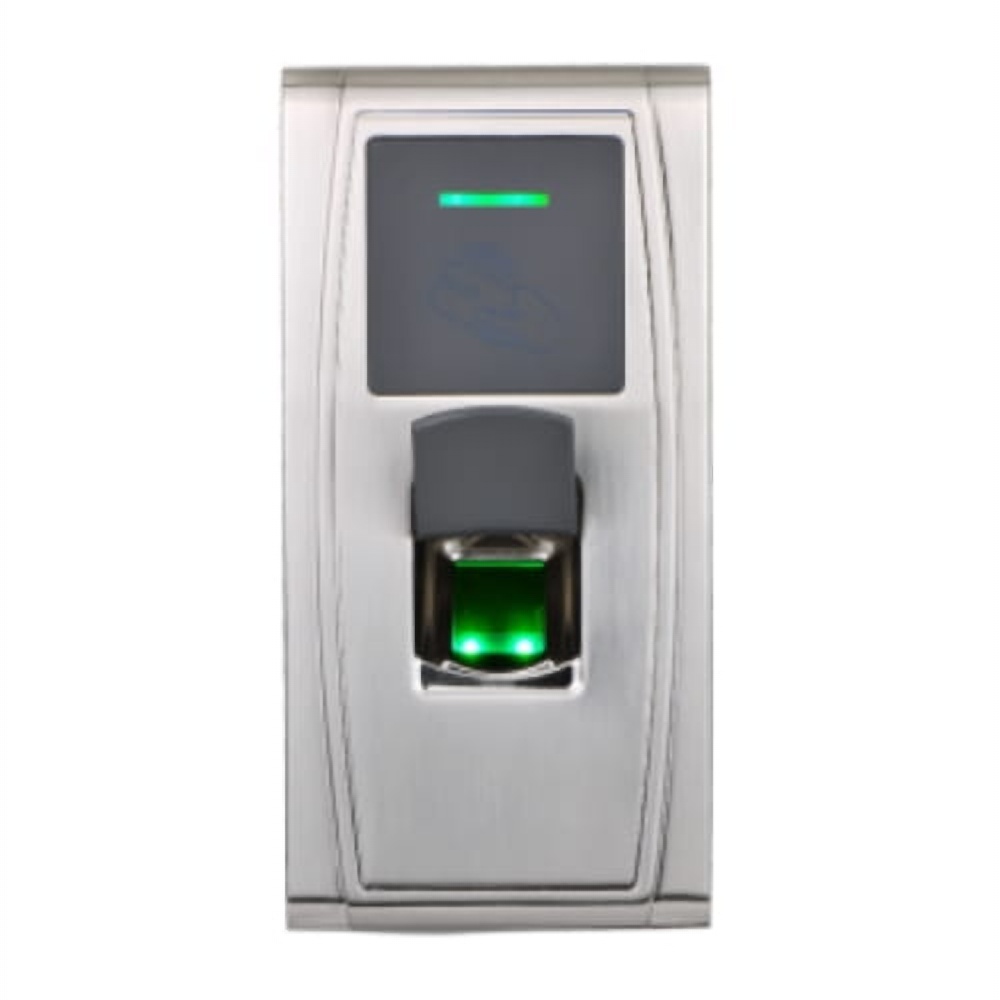

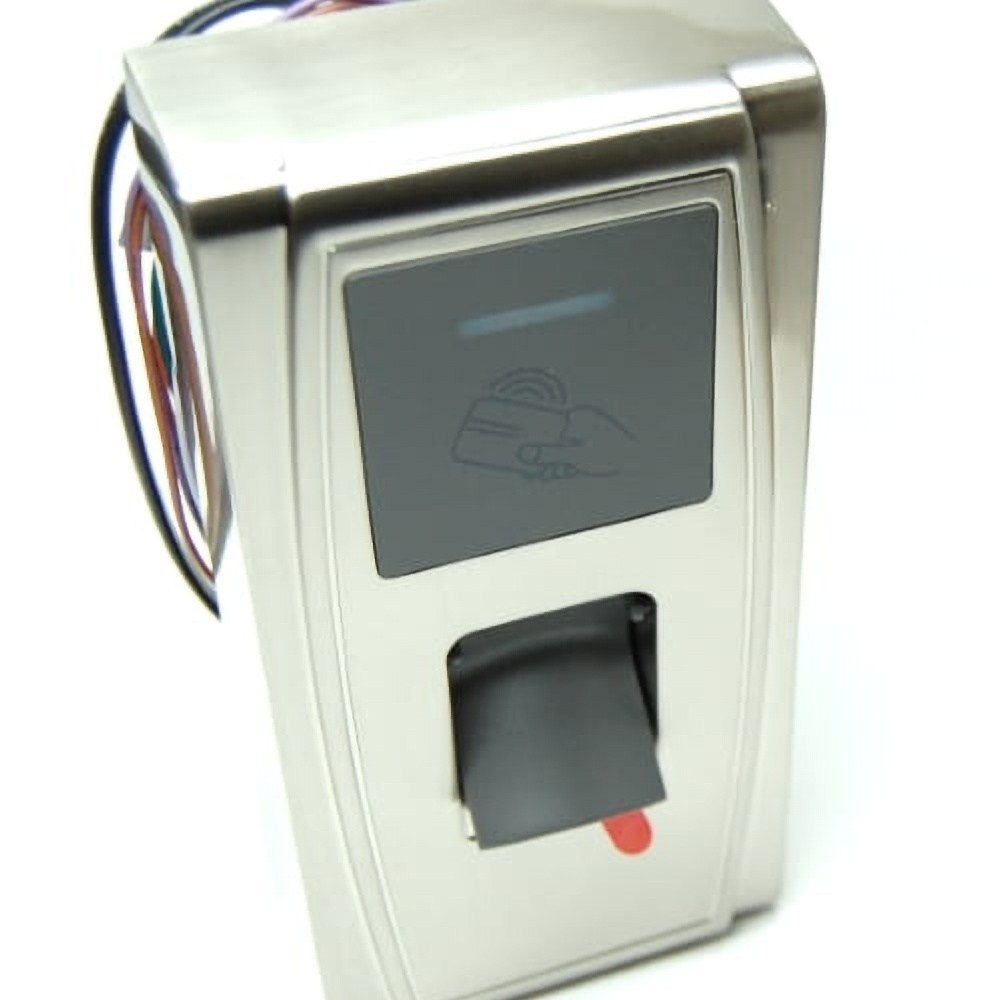

Biometric 125 kHz RFID fingerprint and proximity card reader with TCP/IP interface is the simplest solution for building your own access control or work time registration system. The autonomous reader does not require additional controllers for proper operation. Access control is carried out based on the configuration saved in the device, based on a proximity card and/or fingerprint. Reading a finger's fingerprint takes less than 1 second.

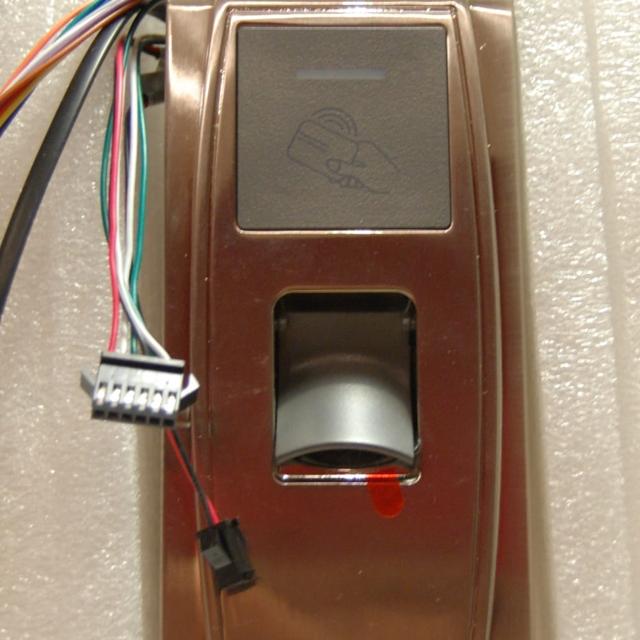

The access control reader has interfaces for controlling external devices, such as: electronic lock, alarm, exit button, or door opening alarm sensor. The device can be mounted outdoors thanks to its resistance to moisture and dust (IP65).
Autonomous access control system
The access control reader verifies the possibility of opening the door based on reading a fingerprint or/and a proximity access card in the UNIQUE ID standard. Authorization data (1,500 fingerprints, 10,000 cards) are saved in the device's memory. Each operation performed by the reader is recorded in the device log (maximum 100,000 operations). Configuring access data and downloading the operation log is possible using a PC (TCP/IP, RS232/485) and the supplied software.
Access control

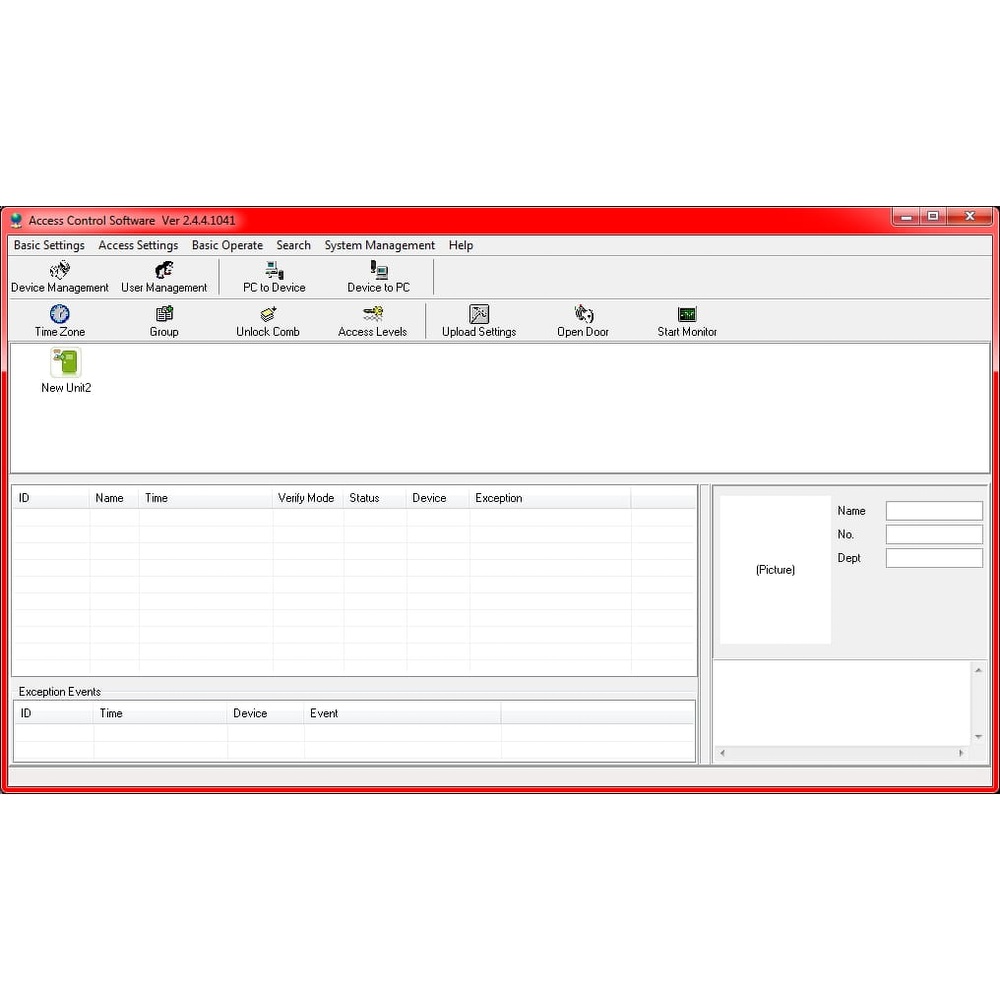

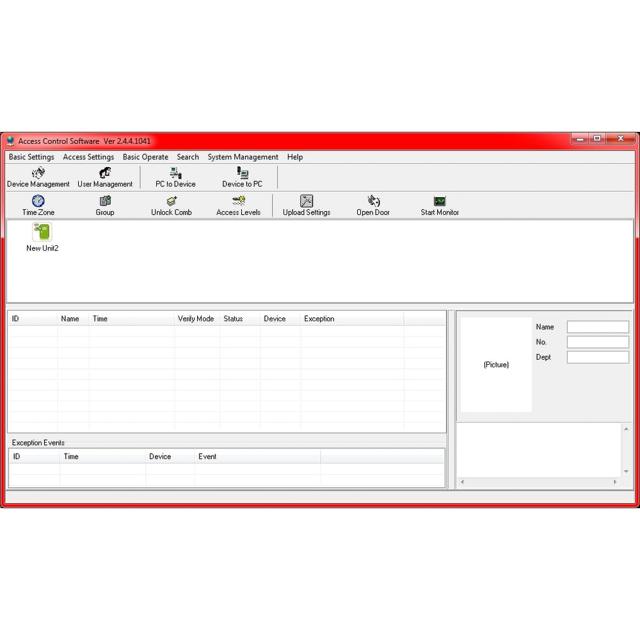

The device comes with fully functional access control software along with instructions in English (93 pages).
Working time records

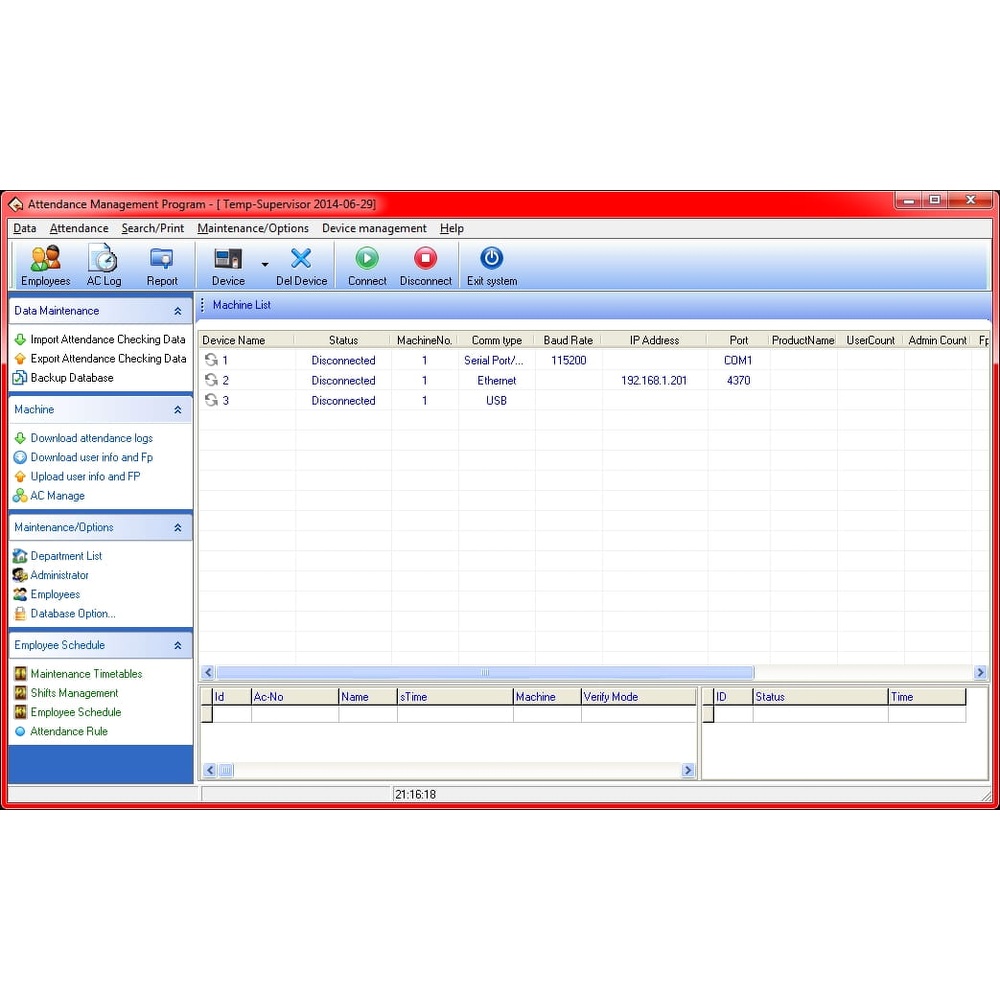

The device comes with fully functional software free of charge working time control (attendance management) with instructions in English (247 pages). The software allows you to use the reader as a work time recorder.
SDK programming interface
The device is supplied with an SDK programming interface containing:
High-quality documentation in English (111 pages)
Libraries for RS, USB, TCP/IP communication
C# and VB.NET source codes - 11 projects illustrating the performance of key operations: working with logs, managing proximity cards, device configuration, authorization management, user data management, etc...
Communication interfaces
The access control reader is a fully autonomous device. Access control is possible without a permanent connection to the computer. The device can be controlled using the supplied software and one of the following communication interfaces:
- TCP/IP (standard network connection)
- RS485 (serial communication port)
- USB host
The reader is compatible with the Wiegand communication standard (I/O).
Included
Included in the kit everything necessary to implement your own access control system:

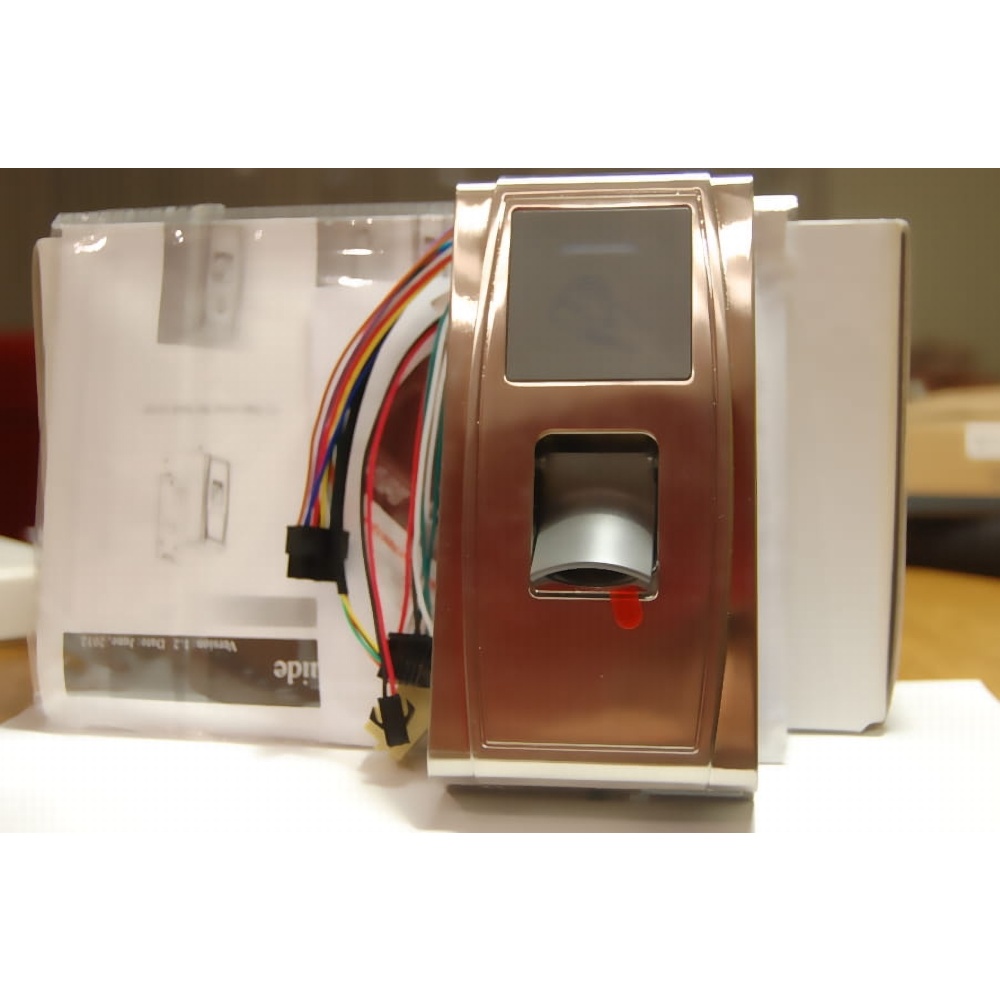

Biometric fingerprint and RFID card reader
Installation manual in paper form in English
Detailed user manual in electronic form in English
Access control software
Working time registration software
Connection cables with connectors
Mounting pins
USB cable
Screwdriver
Test proximity card
RFID software
Are you interested in creating custom software for this device?
Quality
The product is manufactured in accordance with the highest quality control standards. The reader has CE, FCC, IP65 certificates. We provide a 12-month warranty for the device through the manufacturer.
