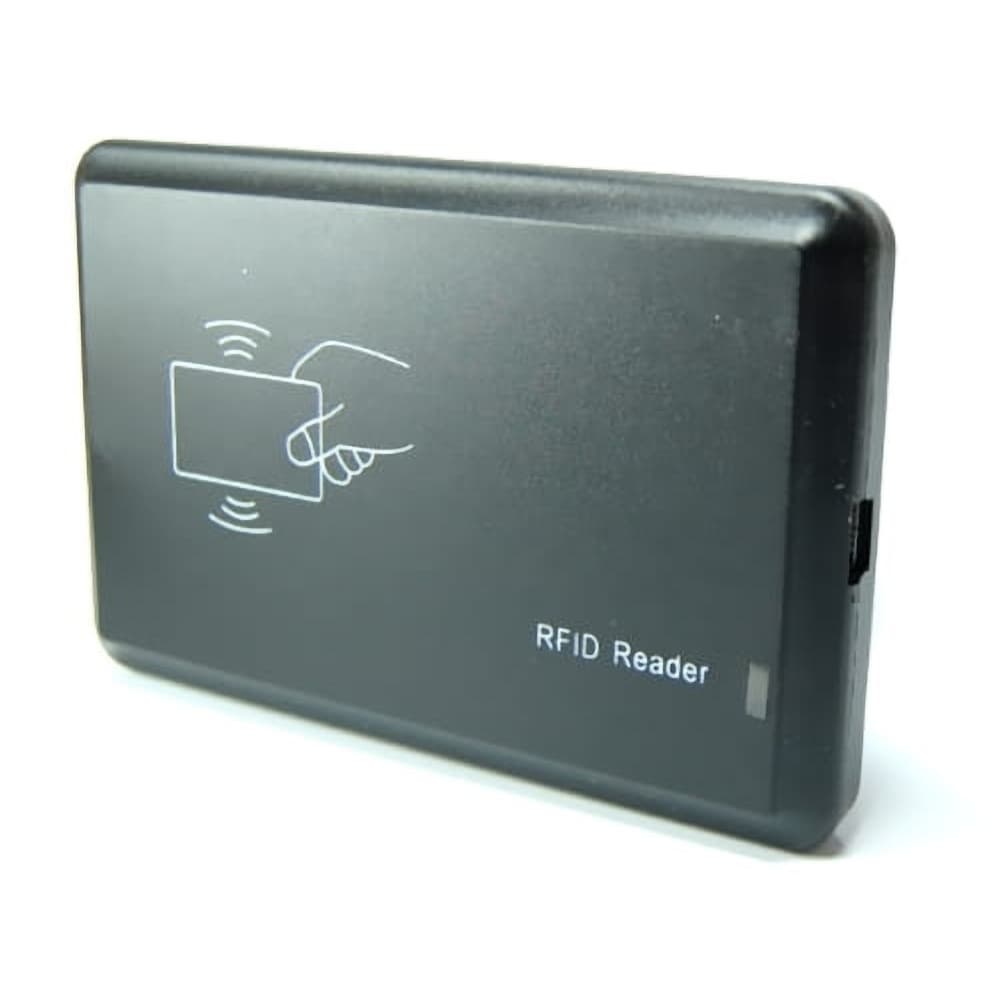

MIFARE RFID reader

We present a new generation of the flagship 13.56 MHz RFID reader in our offer. Compared to its predecessor, the reader has been miniaturized, making it even more compact (100mm x 65mm x 15mm).

The device allows reading 4B long identification data from proximity cards and NFC tags operating at a frequency of 13.56 MHz. The NFC reader we offer does not require drivers. Data exchange and power supply are carried out via the USB port.

Cooperation with the device is fully automatic due to the keyboard emulation functionality. The reader collects data from RFID cards and outputs them to the computer screen in a similar way as if they were entered using a keyboard. Thanks to this, it can be used with any software.

The device is equipped with an LED and a loudspeaker emitting a sound signal to inform about the correct execution of the data reading operation.

It is not a programmer. The device does not support data recording on NFC accessories. The reader also does not allow reading data stored outside the factory block no. drivers and is ready for operation immediately after connecting to a computer with the Windows / Linux operating system. It is possible to connect the reader to a device with Android OS.

Reading RFID / NFC data

The device works in the ISO 14443A standard and allows reading...

Full UID (4B) from RFID systems:
Mifare Classic 1k
Mifare Classic 4k

The first 4B factory UID from NFC chips:
Mifare Ultralight
NTAG203, NTAG213, NTAG215, NTAG216, etc...

Data reading format

Together with the 13.56 MHz RFID card reader, we provide software that allows you to configure the format of the read data. The configuration is stored in the device, which means that once the reader is configured, it does not require re-configuration when connected to another computer.

Example data reading formats for the MIFARE 1k card with UID:77F6A854 (factory block:77F6A8547D0804006263646566676869):

10 DEC: 1420359287
10 DEC reverse: 2012653652
8 HEX: 54a8f677
8 HEX reverse: 77f6a854
8 DEC (3B): 11073143
00 + 8 DEC (3B): 0011073143
8 DEC (4B): 20359287
5 DEC: 63095
18 DEC: 142035928716863095
10 HEX: 0054a8f677

It is possible to configure the end character of the read information:

;

Enter - switch to a new line

Technical specification of 13.56 MHz RFID reader

Dimensions: 100mm x 65mm x 15mm

NFC standard: ISO14443A

Connection interface: USB

Supported operating systems: Windows (also Windows 10), Linux

The set includes

The purchased set includes:

- NFC reader

- USB cable

- application for configuring the format of the read data (Windows)

Installation and configuration

The installation procedure is limited to connecting the reader to a PC with the Windows or Linux operating system. The device also works with the latest Microsoft Windows 10 operating system. The device can also work with Android OS.

The NFC reader, as one of the few devices of this type, allows configuration of the format (HEX / Decimal) and the range of read NFC data. Configuration can be performed using the Windows application supplied with the device.

NFC24 quality

The offered device is covered by a twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control both during the production process and before shipping the goods.

Use of an RFID HF 13.56 MHz reader

Thanks to simple installation, keyboard emulation function and attractive price, the device is ideal for all solutions using RFID technology, such as:

Loyalty Programs

Record of fixed assets

Identification / monitoring of goods and people

Verification of product authenticity

Electronic tickets

Access, time and attendance control

Many more…

More information about NFC technology can be found on our blog.

Do you have an idea for using NFC technology, but you are not sure whether it will be possible?

MIFARE USB RFID card reader
