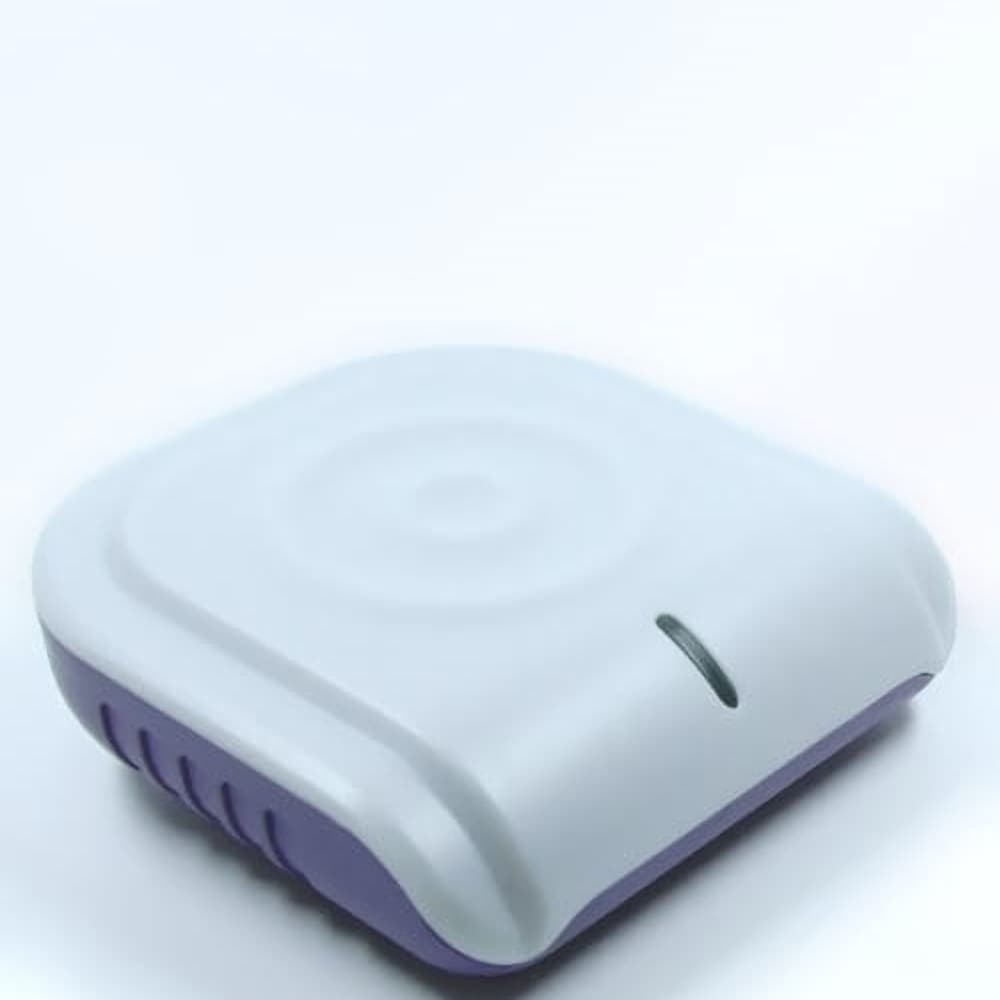

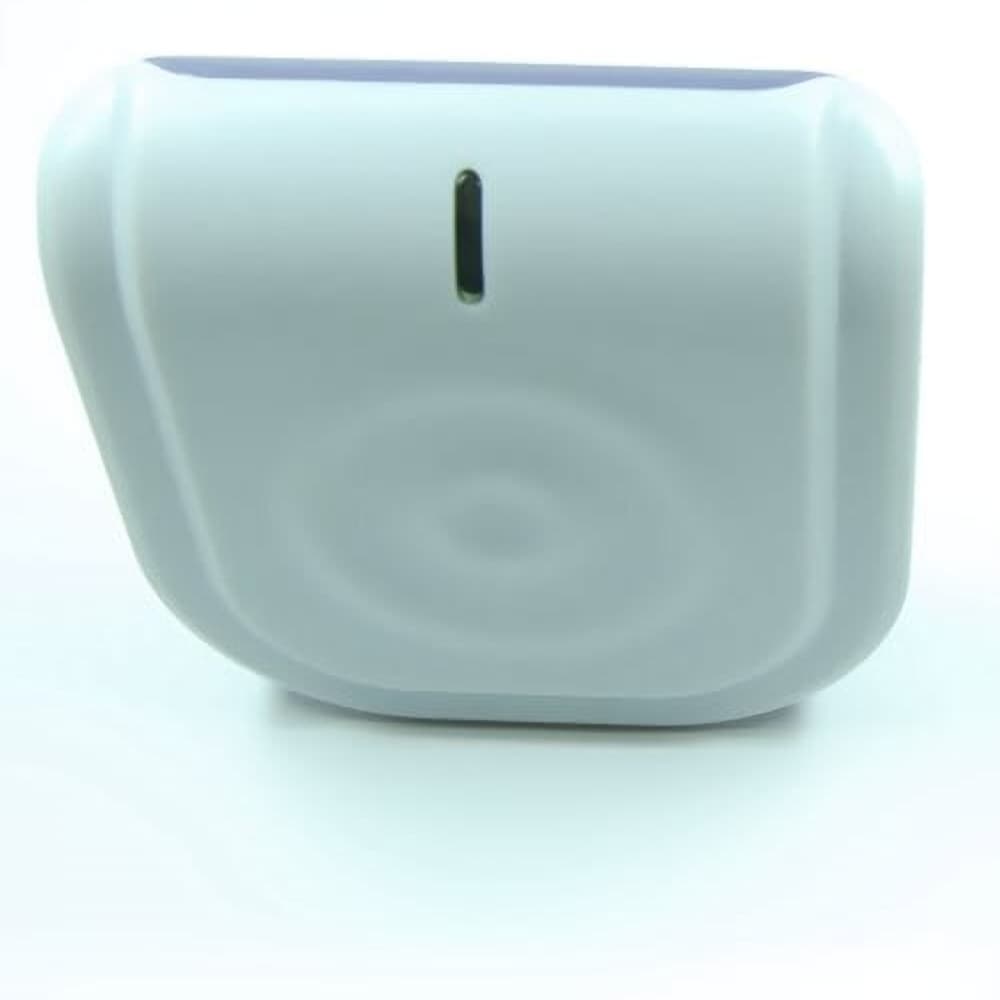

NFC P2P programmer and reader

NFC RFID reader and programmer

The NFC reader, in addition to the standard reading/writing of proximity cards and NFC tags, enables NFC communication in Peer to Peer mode.

An additional advantage of the device is the software that allows, in addition to low-level data writing/reading, also the recording of basic types of NDEF messages (www address, SMS, email, making a call, text, VCard). The application is also delivered in the form of VC++ source codes.

The offered programmer communicates with a PC computer via a USB port. The NFC reader is equipped with a two-color LED and a speaker, which can be operated using software.

The proximity reader is supplied with an SDK / API programming interface, thanks to which the device can be used to create your own solutions using NFC technology.

Reading and writing NFC data

The proximity card and NFC tag reader is compatible with ISO 14443A standard. NFC reader works with the following NFC chips: Mifare 1k Classic S50, Mifare 4k S70, Mifare Ultralight, Mifare DESFire, NTAG 203, NTAG213, etc...

ISO 18092 - NFC Peer to Peer

The NFC reader enables P2P communication with another NFC device in accordance with the ISO standard 18092.

NFC SDK / NFC API

The programming library supplied with the programmer allows:

- detection of NFC chips

- device configuration (LED control, speaker control, determination of data transmission speed, selection of operating mode...)

- reading all data from NFC proximity cards

- writing data to the card NFC proximity card

- protection of the NFC proximity card against writing

- formatting the NFC proximity card to NDEF

- saving data in NDEF format

- cleaning the NFC proximity card (restoring factory settings)

We provide demonstration source codes in the RFID reader in VC++ technology

The API library is delivered in the form of COM components, therefore it can be used in projects created in .NET technology (C#, VB.NET, etc.).

Technical specifications

Dimensions: 110mm x 10mm x 27mm

NFC standard: ISO 14443A, ISO 18092

Connection interface: USB

The set includes

The purchased set includes:

NFC reader/programmer

USB cable

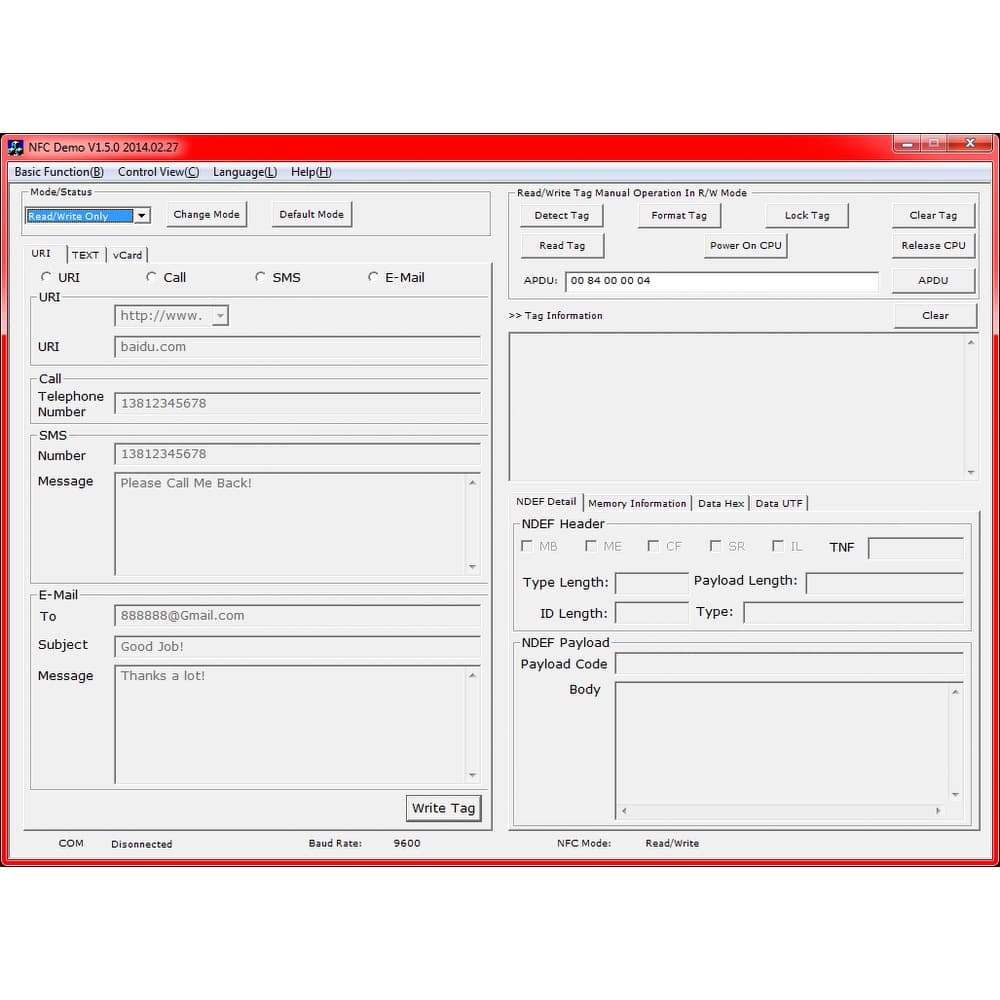

Demonstration application enabling device configuration and reading and writing data

Source codes of the demonstration application

API function documentation

Technical specifications of Mifare S50 / Mifare S70 / Mifare Ultralight NFC systems

Drivers for Windows 10 (64/32 bit), Windows 8/8.1 (64/32 bit), 7 (64/32 bit), Vista (64/32 bit), XP

Installation and configuration

Procedure installation is limited to installing the supplied drivers and connecting the NFC reader to a PC with the Windows operating system.

Quality

The sold device is covered by a twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control both during the production process and before shipping the goods.

Application

Thanks to the exceptionally simple installation and API provided with the demonstration code, the device is ideal for implementing your own solutions using NFC technology, such as:

Solutions using P2P communication (e.g. reader with a mobile phone)

Integration of NFC technology with existing IT systems

Loyalty Programs

Management of fixed assets

Identification / monitoring of goods and people

Confirmation of product authenticity

Control of electronic tickets

Multimedia information stations

Mechanisms of additional security control

Time and attendance control

Automation of recording large quantities NFC tags

Many others…

NFC software

Are you interested in creating custom software using NFC technology? Please contact us.

More information about NFC technology can be found on our company's blog.

Do you have an idea for using NFC technology, but you are not sure whether it will be possible to implement it? Contact us, we will be happy to help.
