NFC software reading MIFARE 1k
Automatic reading of MIFARE 1k card data

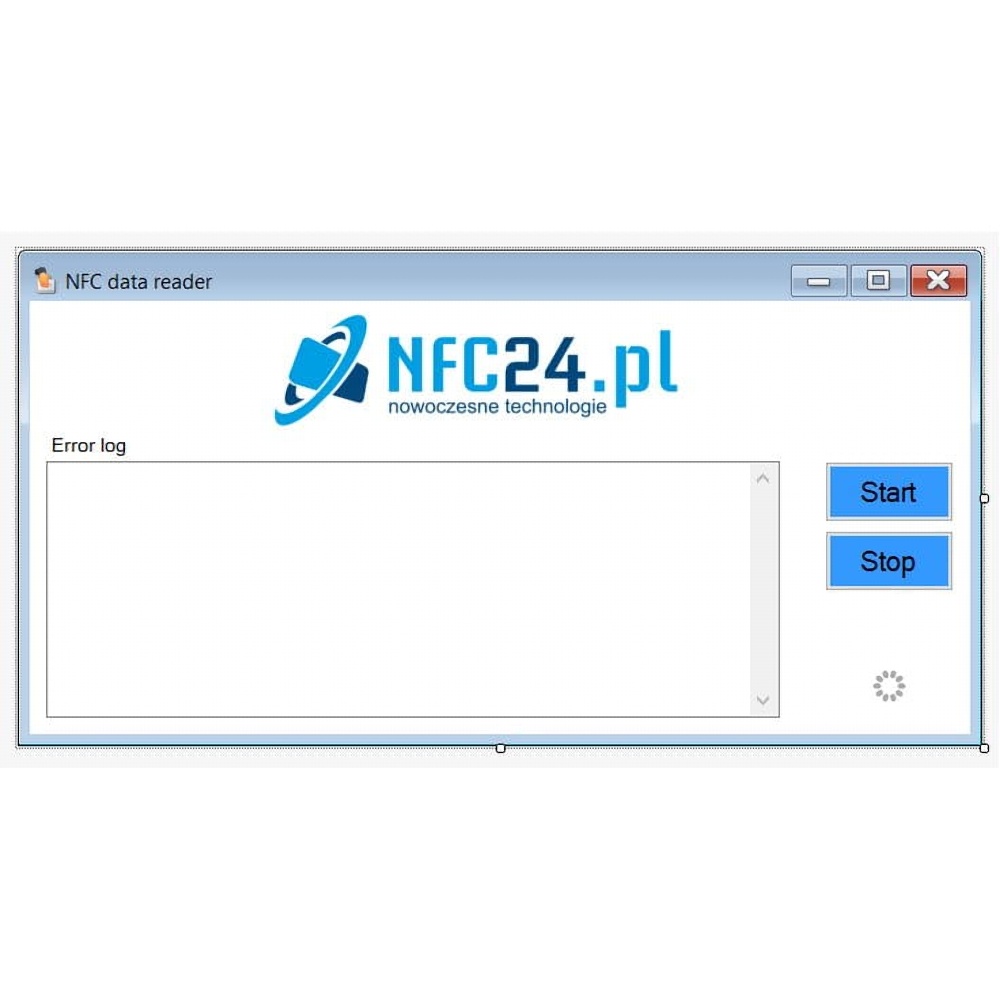

NFC MIFARE data reader software
The software enables automation of data reading from MIFARE S50 1k and MIFARE S70 4k.
The most important features of the product:
Automatic reading triggering after bringing the NFC tag / proximity card closer
Reading any block of NFC memory
Keyboard emulation, i.e. outputting the read data to the screen at the cursor position
Working in the background thanks to and the ability to minimize the application to the notification area of the taskbar
Information about reading problems during application operation
The NFC data reader program works with the NFC W20A programmer available in our offer. The software was prepared for MS Windows.
Fully automatic reading of NFC data
There is no need to manually trigger the reading operation by the user. Simply bring the NFC chip close to the reader and the device will signal the correct reading with a sound signal and output the contents of the memory block in the current position in the currently running application (keyboard emulation function).
Reading the selected memory cell of the NFC chip
NFC data reader software in combination with NFC W20A programmer allows you to read any memory block of the NFC chip. You are no longer limited only to the first block of memory, as is the case with the NFC reader R20C.
Light application for reading NFC data
Working in the background, low demand for RAM and CPU time, as well as the ability to minimize the application to the taskbar, is basic advantages of the offered software. It is quite possible that you will forget that the NFC program is running on your computer. You will remember this fact only after you bring the NFC chip close to the reader and automatically trigger the data reading operation.
Example applications of the NFC data reading application
The application allows the use of NFC technology in any software without the need to change its code. Example applications:
Loyalty programs
Registration of people during mass events
Identification of people
Confirmation of presence at control points at mass events
Control of electronic tickets
Configuration options
The NFC data reader application allows you to configure:
Memory block number for automatic reading
Amount of read memory (1 - 16B)
Values of the data access key
Type of key used KeyA / KeyB
Format of returned data HEX / DEC
Adding a line ending character (ENTER) to the data read from the card
Adding the value of the current time (HH:MM:SS) before data read from the card
NFC software
Are you interested in creating custom software using NFC technology?
Priority support guarantee
We are the manufacturer of the offered software. We guarantee priority technical support for the offered product.
More information about NFC technology can be found on our company's blog.
Do you have an idea for using NFC technology, but you are not sure whether it will be possible?
