HID Omnikey reader

The HID 5022 reader is one of the most versatile RFID / NFC readers in our offer. The reader enables reading and programming of proximity systems in a wide range of supported protocols:

TCL, MIFARE®, iCLASS®
ISO 14443A/B
ISO 15693
NFC Tag Type 1
NFC Tag Type 2
NFC Tag Type 3
NFC Tag Type 4

HID iCLASS reader

This is an original product of HID, a leader in RFID technology with a global reach. The reader works with the following HID solutions:

ActivID® ActivClient
ActivID® Applets
and HID Trusted Tag® Service

iCLASS OMNIKEY Reader

Protocol compatibility T=CL, MIFARE, iCLASS enables cooperation with HID cards operating in the iCLASS standard (loading keys, reading and writing data).

ISO 15693 reader

Compatibility with the ISO15693 protocol guarantees cooperation with ICODE SLI / SLIX cards.

NFC reader

HID Omnikey 5022 reader allows you to read and write data (individual records) of NFC systems (Type 1 - 4). Support for the NDEF format requires its own implementation (no support out of the box).

Proximity cards

The HID OMNIKEY reader allows reading and writing data of, among others, the following RFID systems:

MIFARE Classic, MIFARE Ultralight, MIFARE Ultralight C, MIFARE Plus
MIFARE DESFire, DESFire EV1 / EV2
HID ICLASS
ICODE SLI / SLIX
FIDO NFC, FIDO2 NFC

Technical specifications

Model: HID OMNIKEY 5022

Dimensions: 59mm x 59mm x 11.4mm

Weight: 70g

Work range: < 50mm

Connection interface: USB

Operating systems:

- Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2
- Mac OS X
- Android 4.0
- Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+
- Open SUSE 11.4+
- Windows CE 6/7 (on selected hardware)

NFC / RFID technology

Since 2014, we have been providing business solutions based on the use of RFID and NFC technologies.

Please contact us.

Information about NFC/RFID technology and the projects we have implemented can be found on our company's blog.

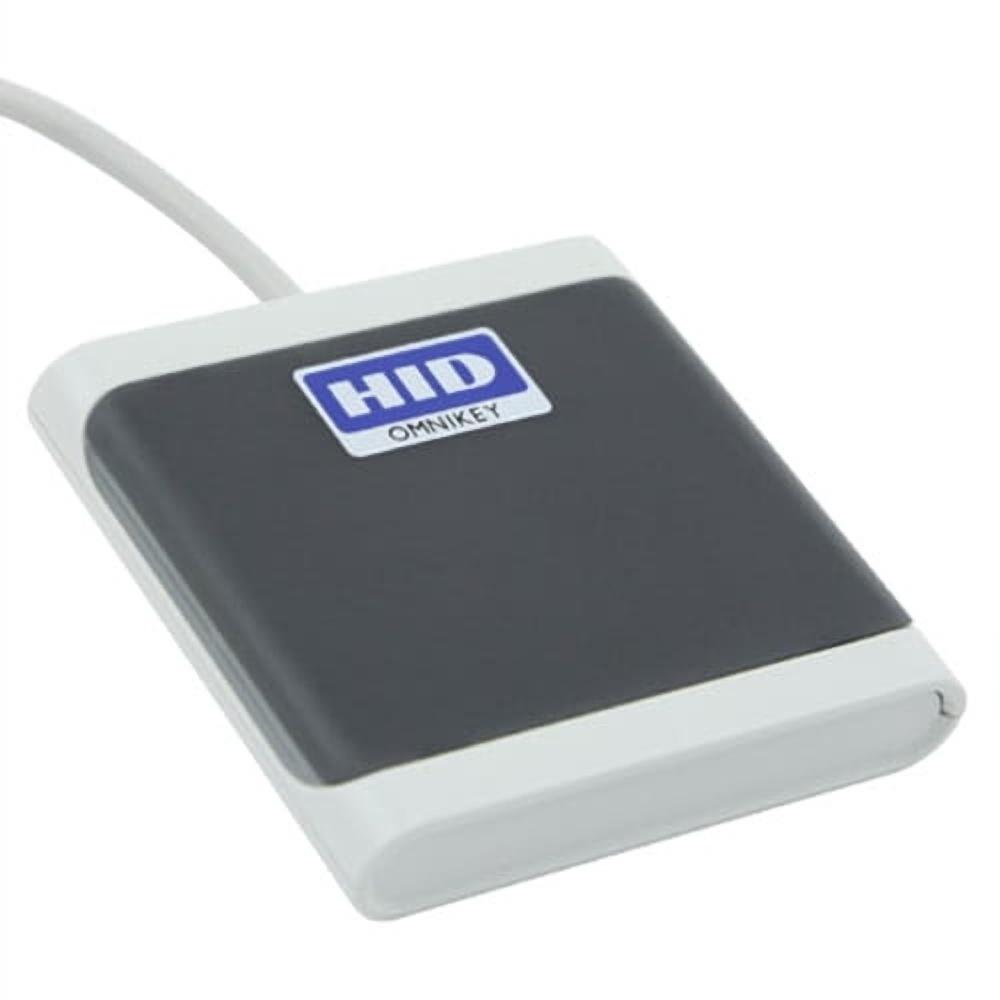

Omnikey 5022 HID reader
