RFID NFC programmer USB + SDK / API
Programming NFC tags and proximity cards

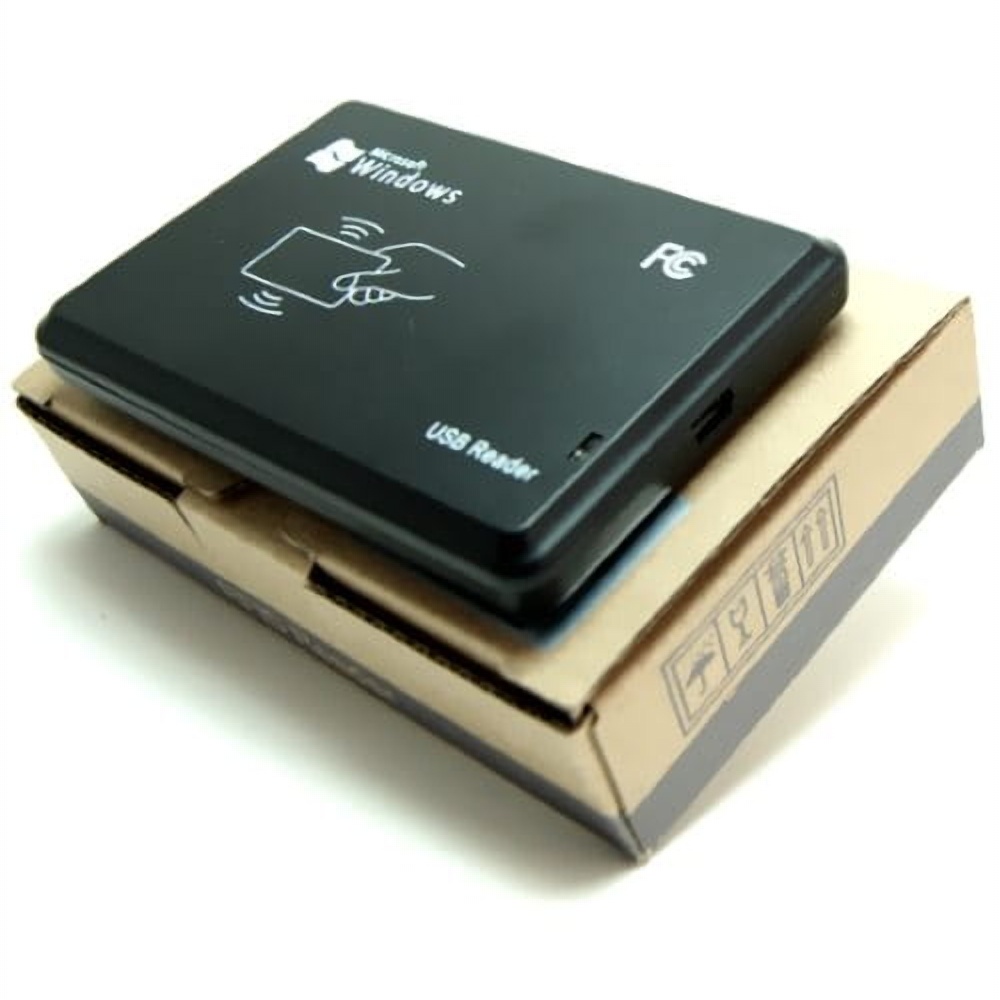

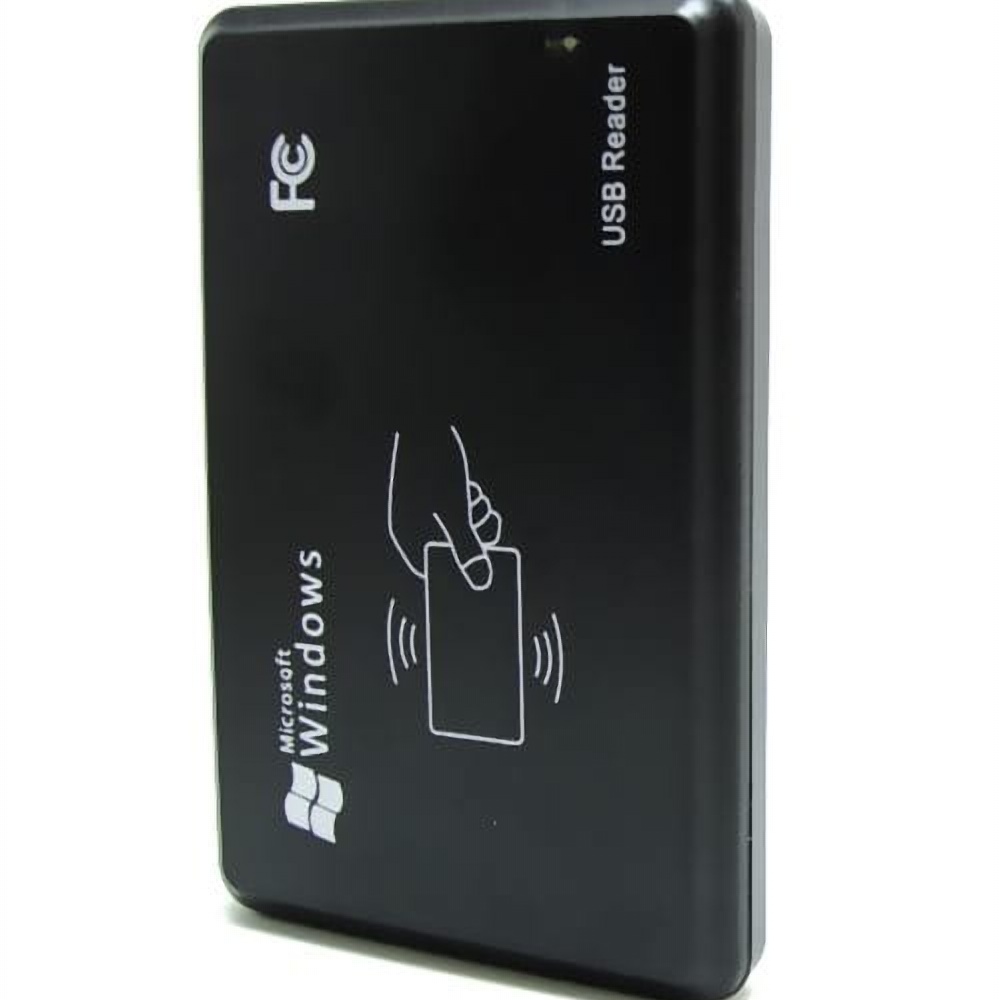

NFC reader and programmer
The device allows reading/writing data of proximity cards and NFC tags. The offered NFC programmer does not require drivers. Data exchange and power supply are carried out via the USB port. The device is ready for use immediately after connecting to the computer. The RFID reader is equipped with an LED and a speaker emitting a sound signal, which can be operated using software.
The proximity reader is supplied with an SDK / API interface and sample source codes in the most popular programming languages, thanks to which the device can be used to create your own solutions using NFC technology.
Reading and writing data NFC
The proximity card and NFC tag reader complies with the ISO 14443A standard. NFC reader works with the following NFC chips: Mifare 1k Classic S50, Mifare 4k S70, Mifare Ultralight, NTAG 203, NTAG213, NTAG215, NTAG216. For NTAG family systems, reading and writing data is limited to the 0x0F memory block.
NFC SDK / NFC API
The programming library supplied with the programmer allows:
- device configuration (saving user data in the programmer's memory, LED control, loudspeaker control...)
- reading selected memory blocks from NFC tags
- recording selected memory blocks on NFC tags
Together with the RFID NFC reader, we provide demonstration source codes in the following technologies:
- .NET Framework C#
- Delphi 7.0
- JAVA (Linux)
- Qt (Linux)
- VB
- VC 6.0
- JAVA (Android)
Technical specifications
Dimensions: 110mm x 70mm x 15mm
NFC standard: ISO14443A
Connection interface: USB
W set
The purchased set includes:
Device - NFC RFID reader/programmer
USB cable
Application demonstrating device configuration and reading and writing data on RFID cards/NFC tags
Source codes demonstrating the use of API functions
API function documentation
Technical specifications of the systems NFC Mifare S50 / Mifare S70 / Mifare Ultralight
Installation and configuration
The installation procedure is limited to connecting the reader to a PC with the Windows operating system and running the supplied application. Installation of additional drivers is not required. The device also works with the latest Microsoft Windows 10 operating system.
Quality
The sold device is covered by a twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control both during the production process and before shipping the goods.
Application
Thanks to the extremely simple installation and API provided with the demo code, the device is ideal for implementing your own solutions using NFC technology, such as:
Integration of NFC technology with existing IT systems
Loyalty Programs
Management fixed assets
Identification / monitoring of goods and people
Confirmation of product authenticity
Control of electronic tickets
Multimedia information stations
Mechanisms of additional security control
Time and attendance control
Automation of recording a large number of NFC tags
Many others…
NFC software
Are you interested in ordering custom RFID software ?
