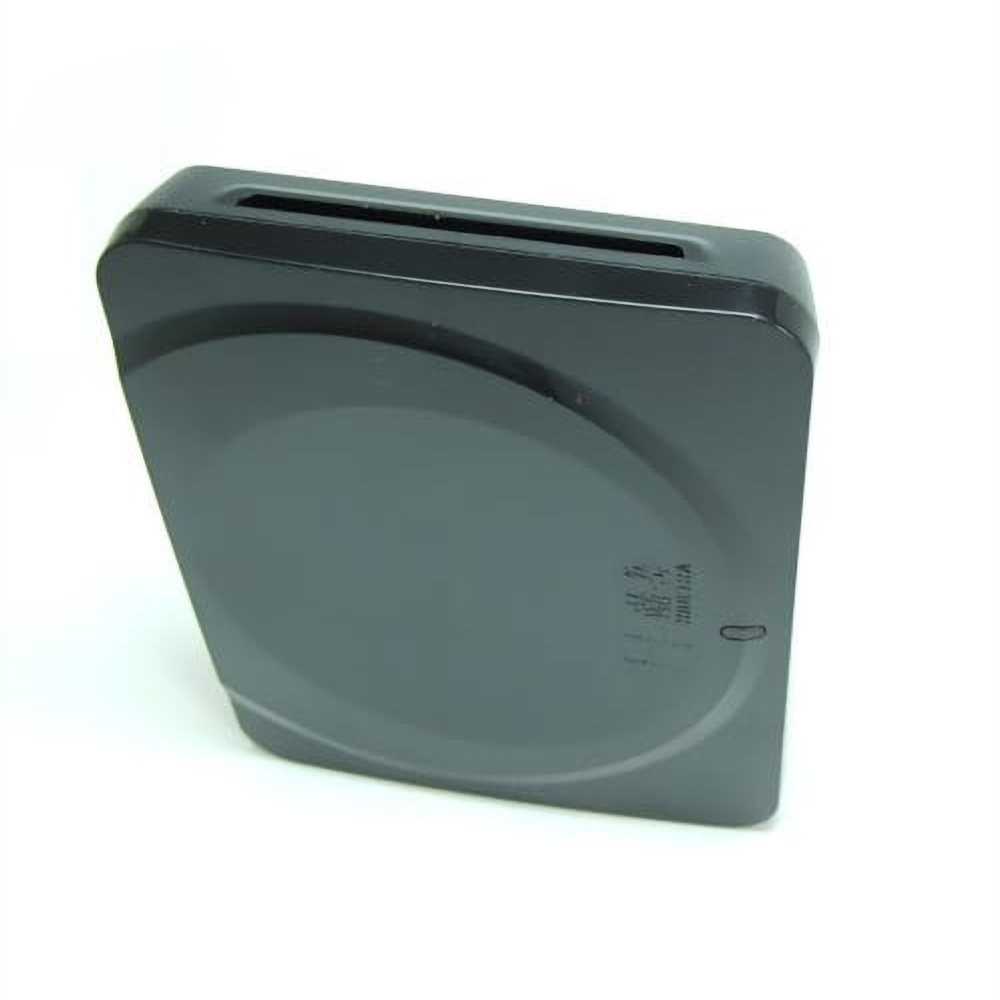

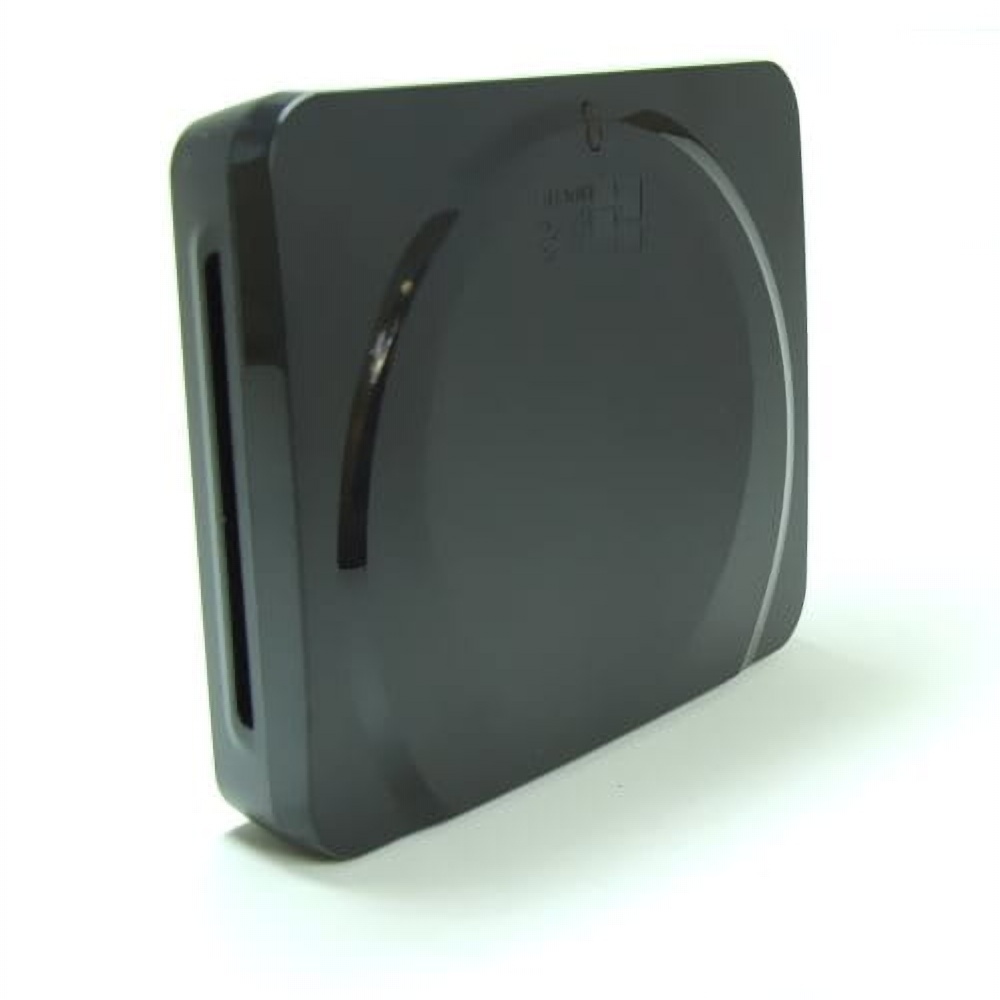

RFID NFC proximity card reader
USB programmer for RFID systems with the ability to read contact chip cards
NFC RFID reader
The proximity card reader enables reading and writing data on the following RFID systems:
- MIFARE S50 1k
- MIFARE S70 4k
- MIFARE Ultralight
- MIFARE DESFire EV1
The offered programmer communicates with a PC computer with the Windows operating system via a USB connector. The reader does not require driver installation.
The proximity reader is supplied with an SDK / API programming interface, so the device can be used to create your own solutions using NFC technology and writing/reading chip cards.

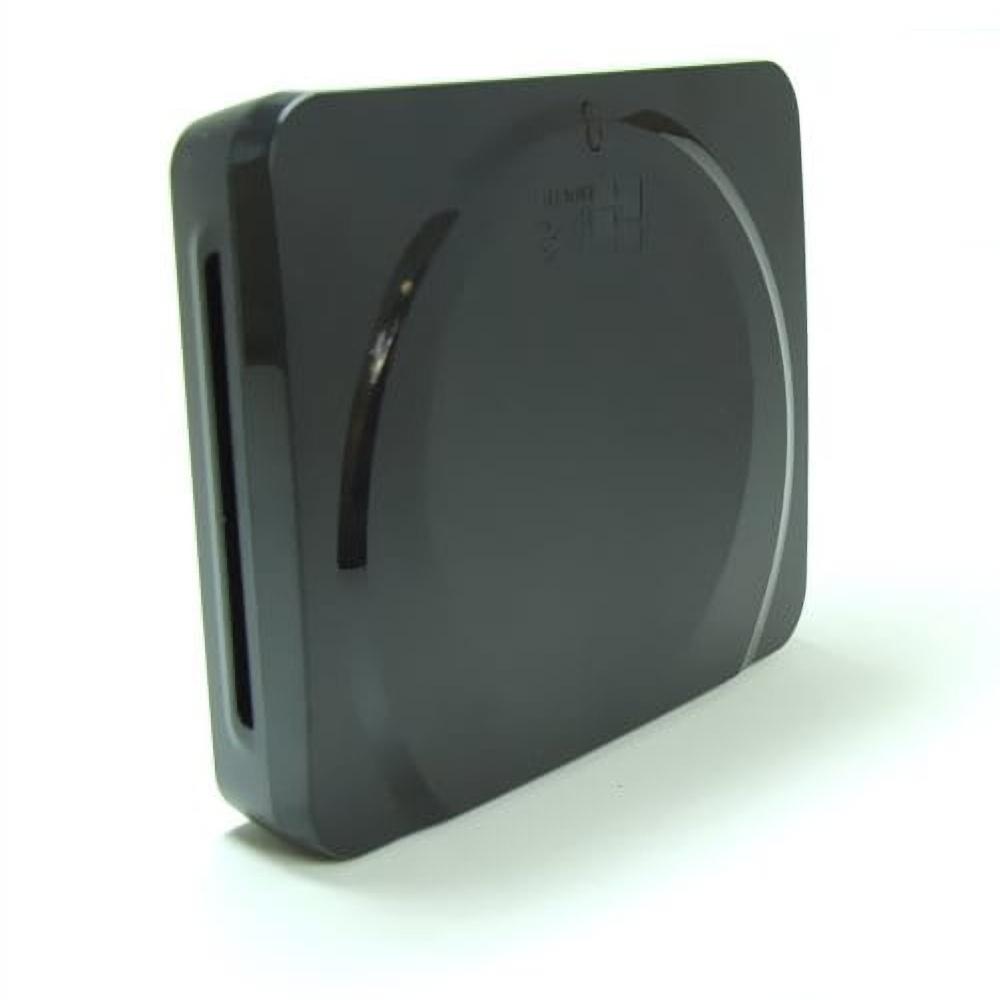

The offered reader is also available with an additional slot for reading chip cards. The chip card reading module is an additional fee and allows support for the following cards: SLE4442, SLE5542, SLE4428, SLE5528.
The presented price includes a standard version reader with the ability to read proximity cards. A hybrid reader enabling communication with proximity cards and chip cards is available on request.
NFC ISO 14443 RFID cards
The NFC reader device meets the ISO 14443A/B standard. The proximity card and NFC tag reader works with the following RFID chips: Mifare 1k Classic S50, Mifare 4k S70, Mifare Ultralight, Mifare DESFire EV1. Communication with the cards takes place by calling the API function (read/write/etc...) or using the APDU standard.
SDK / NFC API for reading proximity and chip cards
The programming library supplied with the programmer contains functions enabling device configuration and work (reading/writing) with proximity cards in the ISO 14443 standard.
Together with the RFID reader, we provide demonstration source codes in C# .NET technology
The API library is delivered in the form of COM components, therefore it can be used in C++ and .NET projects (C#, VB.NET, etc.).
Technical specifications
Dimensions: 120mm x 93mm x 27mm
NFC standard: ISO 14443A, ISO 14443B
Connection interface: USB
Included
The purchased set includes:
13.56 MHz proximity card reader/programmer
USB cable
Demonstration application enabling configuration of the reader and communication with cards contactless
Source codes of the demo application
API library in 32-bit and 64-bit versions
API function documentation
Technical specifications of Mifare S50 / Mifare S70 / Mifare Ultralight NFC systems
Quality
The device sold is covered by twelve-month manufacturer's warranty, implemented via NFC24. All devices undergo quality control both during the production process and before shipping the goods.
Application
Thanks to the extremely simple installation and API provided with the demonstration code, the device is ideal for implementing your own solutions using NFC technology and microprocessor/contact card technology, such as:
Integration of NFC technology with existing IT systems
Programs Loyalty
Electronic signature
Management of fixed assets
Identification / monitoring of goods and people
Confirmation of product authenticity
Control of electronic tickets
Multimedia information stations
Mechanisms of additional security control
Time and attendance control
Record automation large number of NFC tags
Many others…
NFC software
Are you interested in creating custom software using NFC technology? Please contact us.
More information about NFC technology can be found on our company's blog.
Do you have an idea for using NFC technology, but you are not sure whether it will be possible to implement it? Contact us, we will be happy to help.
