RFID TCPIP access card reader
Access control reader, time and attendance recorder

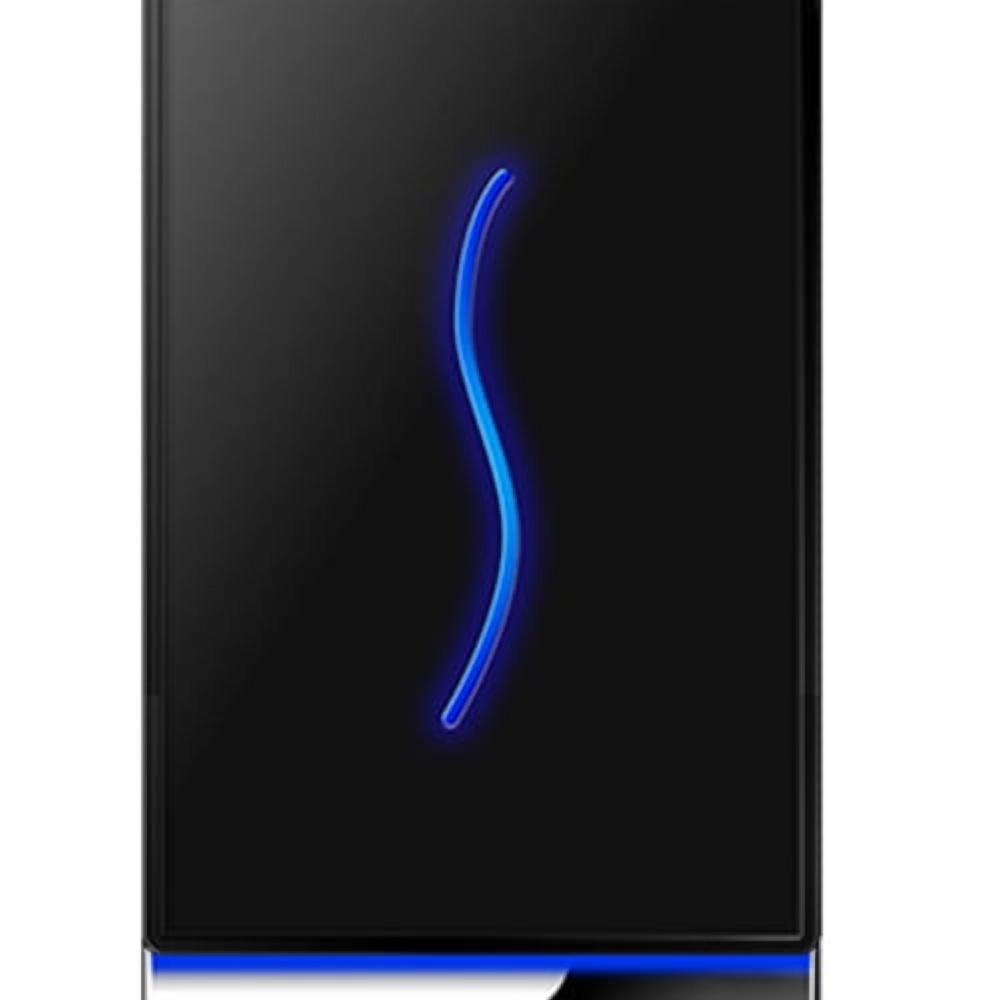

RFID access card reader
An autonomous 125 kHz RFID reader with a TCP/IP interface is the simplest solution for building your own access control or work time registration system. The main advantages of the device are operation without the need to connect additional controllers, amazing design and perfect workmanship. The access control reader has interfaces for controlling external devices, such as: electronic lock, alarm, exit button, door alarm sensor.
The reader has a two-color diode to indicate the operating mode. When the card is read, a confirming sound signal is emitted.
Autonomous access control system
The access control reader verifies the possibility of opening the door based on reading a proximity access card in the UNIQUE ID standard. Authorization data (maximum 30000) are saved in the device's memory. Each operation performed by the reader is recorded in the device log (maximum 50,000 operations). Configuring access data and downloading the operation log is possible using a PC (TCP/IP, RS232/485).
Access control
The device comes with fully functional access control software along with instructions in English (93 pages).
Working time records
The device is supplied free of charge with fully functional working time control software (attendance management) with instructions in English (247 pages). The software allows you to use the reader as a work time recorder.
SDK programming interface
The device is supplied with an SDK programming interface containing:
High-quality documentation in English (111 pages)
Libraries for RS, USB, TCP/IP communication
C# and VB.NET source codes - 11 projects illustrating the performance of key operations: working with logs, managing proximity cards, device configuration, authorization management, user data management, etc...
Communication interfaces
The access control reader has the following connection interfaces:
- Wiegand in: for master-slave communication with an external reader
- Wiegand out: for connecting to an external panel as reader
- TCP/IP or RS232/485 for communication from a PC
In the set
The set includes everything necessary to implement your own access control system:
RFID reader
Installation manual in paper form in English
Detailed user manual in electronic form in English
Software
Connection cables with connectors
Mounting bracket
Mounting pins
USB cable
Screwdriver
RFID software
Are you interested in creating custom software for this device?
Quality
The product is manufactured in compliance with the highest quality control standards. We provide a 12-month warranty for the device through the manufacturer.
