RFID marking of bedding, towels, clothing

RFID UHF laundry tags allow wireless identification of marked items made of textiles from a distance exceeding 4 m. Identification of items made of fabrics is most often used inhotels,hospitals,production plants,nursing homes in order to prevent theft and controlbedding /towels/work clothes issued forwashing.

Laundry tags are OEKO-TEX Standard 100 Class 1 certified.

Durable laundry tags for identifying bedding

The offered laundry tags are distinguished by the highest durability among this type of UHF tags available on the market. Laundry tags are designed to withstand over300 full cleaning cycles, each cycle consisting of:

- wash at 90 ℃ [15 min.]

- dry at 180 ℃ [30 min.]

- ironing at 180 ℃ [10 min.]

- sterilization at 135 ℃ [20 min.]

In addition, laundry tags are resistant to:

- mechanical pressure (60 bar)

- resistance to standard chemicals used in the washing process

- resistance to 24 kV electrostatic discharge

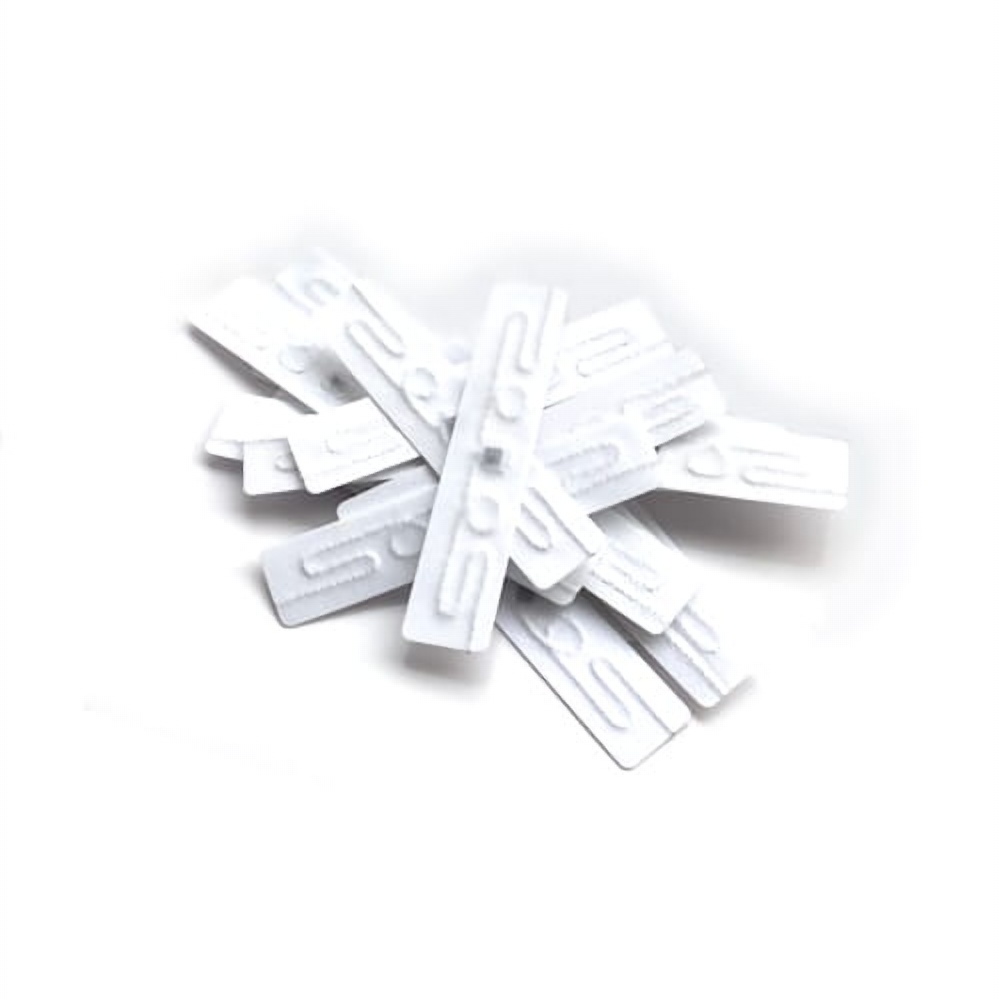

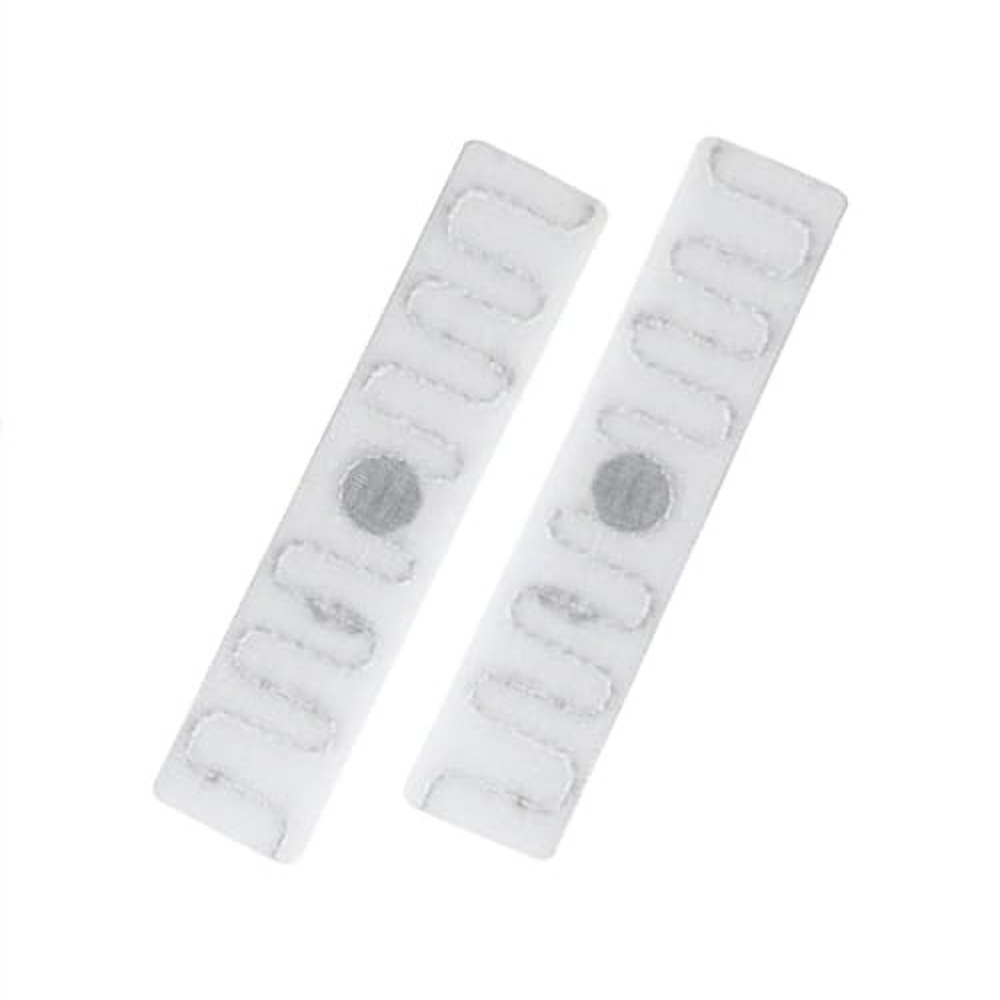

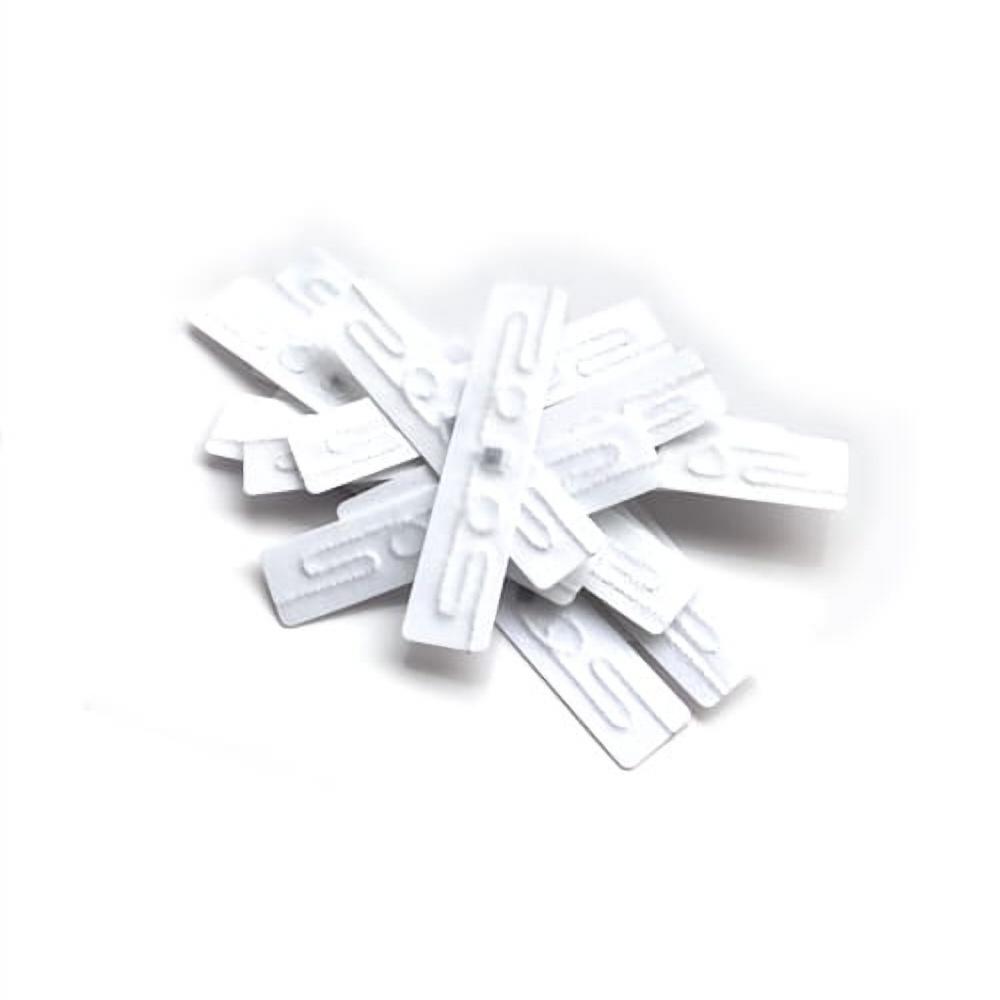

UHF laundry tags

Technical specification of UHF tags for marking bedding, clothing, towels...

RFID standard: EPC Class1 Gen2, ISO18000-6C

Certification: RoHS, SVHC, EECC, OEKO-Tex Std100, GB18401

Frequency: 865-928 MHz

Chip: Impinj M750

Memory: EPC 96-bit, User 32-bit

Data storage: 20 years

Material: Polyester

Suggested installation method: sewn in

Dimensions: 70 x 15 x 1.5mm

Weight: 0.7g

Identification range: over 4m

The achievable reading range depends on the reader used and the prevailing environmental conditions.

Use of laundry NFC tags

Monitoring beddingduring the cleaning process (hospitals)

Monitoring towels, bathrobes and bedding in order to prevent theft (hotels, parks water, spa zones)

Monitoring of work clothes (production plants)

Monitoring of bedding and clothes during delivery to / collection from the laundry (retirement homes / care / retirement)

More information about wireless identification using UHF RFID technology on our blog.
