TCPIP work time recorder with keyboard
Keyboard with RFID card reader - work time registration, access control
Complete work time recording system
Time recorder produced by ZKT, a leader in the access control industry with a global reach. We offer a mature product, offered on five continents and sold in hundreds of thousands of copies. Together with the device, you purchase complete software for work time registration, access control and SDK for integration with your own software. We guarantee free technological support in the manufacturer's API.
The complete work time registration/access control system includes:
- time recorder (access control reader) with LCD display
- complete work time registration software
- complete access control software
- SDK (API) for system integration with any software
RFID UNIQUE 125 kHz and MIFARE 13.56 MHz
The SC103 terminals we offer are available in two RFID variants:
- UNIQUE 125 kHz standard
- MIFARE 13.56 MHz standard

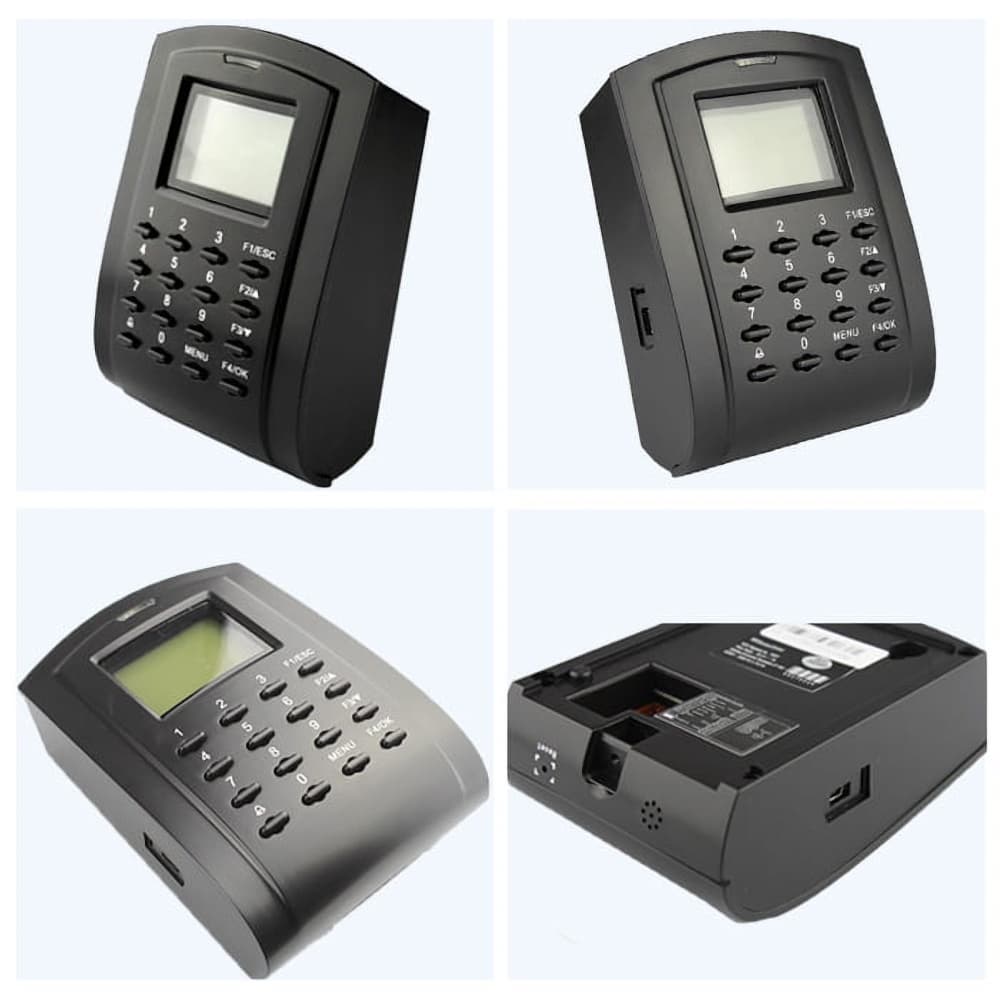

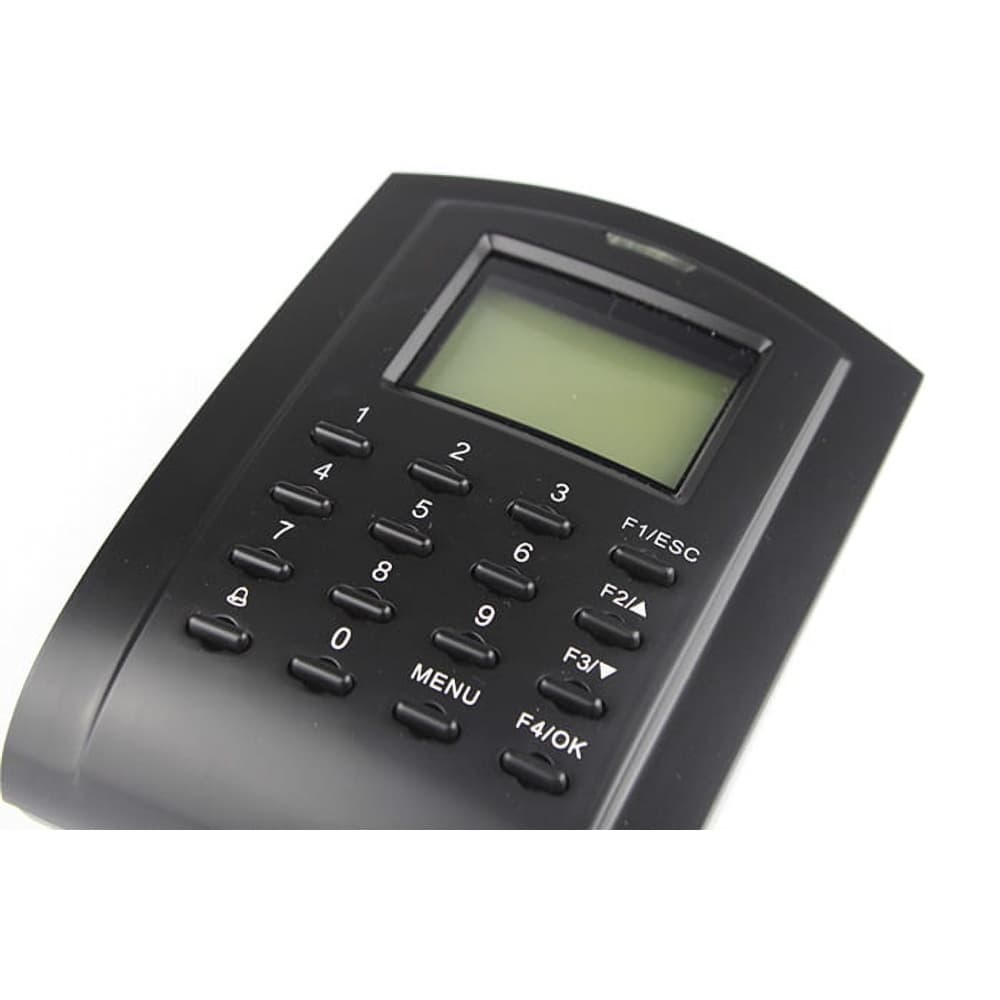

Working time recorder with keyboard

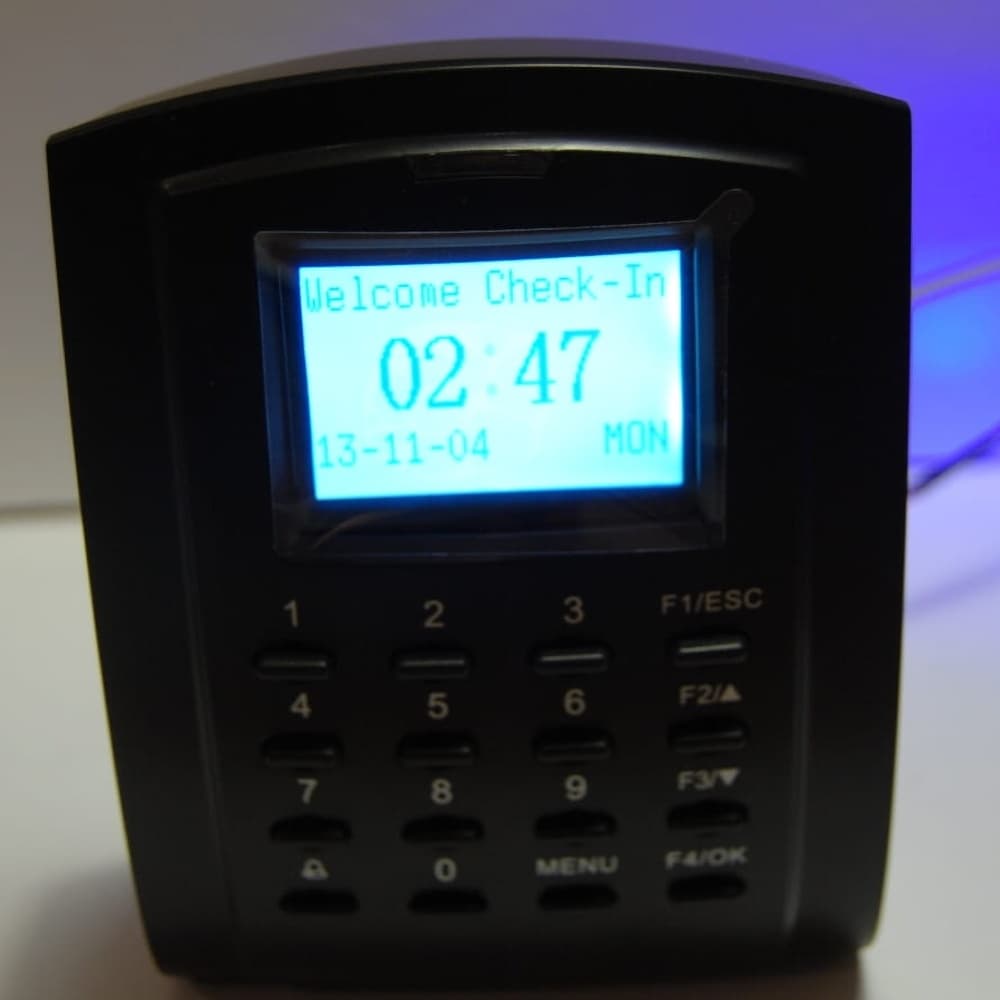

Autonomous access control and work time recording device with a keyboard and LCD display, enabling authorization using:
- PIN code
- RFID proximity card
- PIN code and RFID card simultaneously
The device can work autonomously, without connection to a computer, due to the built-in software responsible for entry authorization and logging in workflow. Communication with the device from a personal computer takes place via the network communication protocol - TCP-IP.

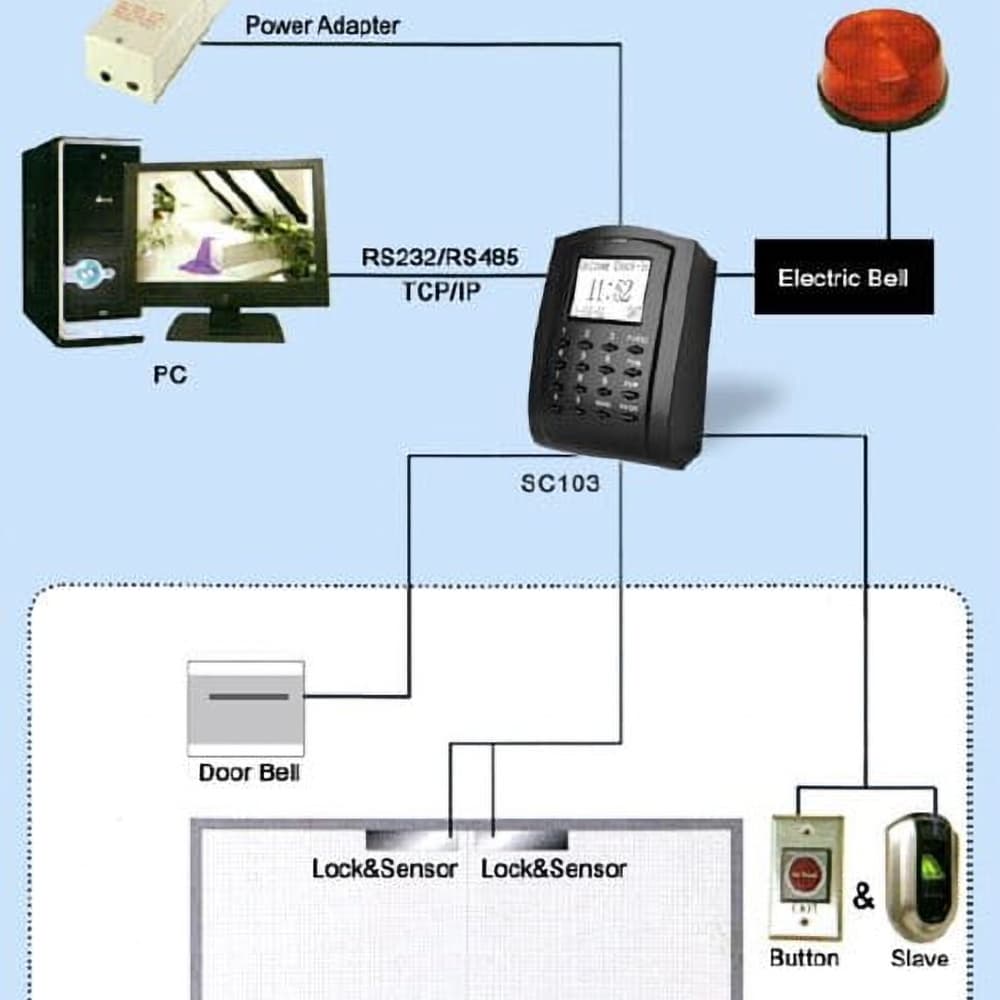

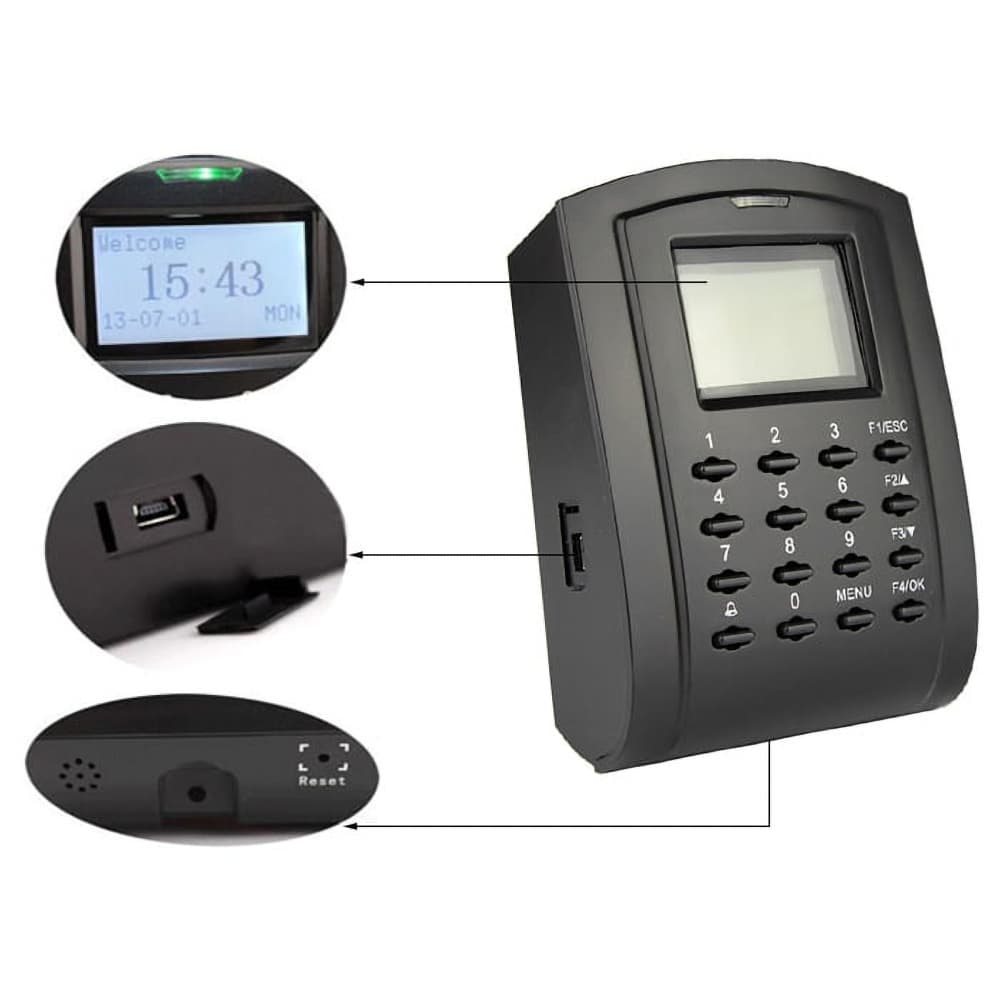

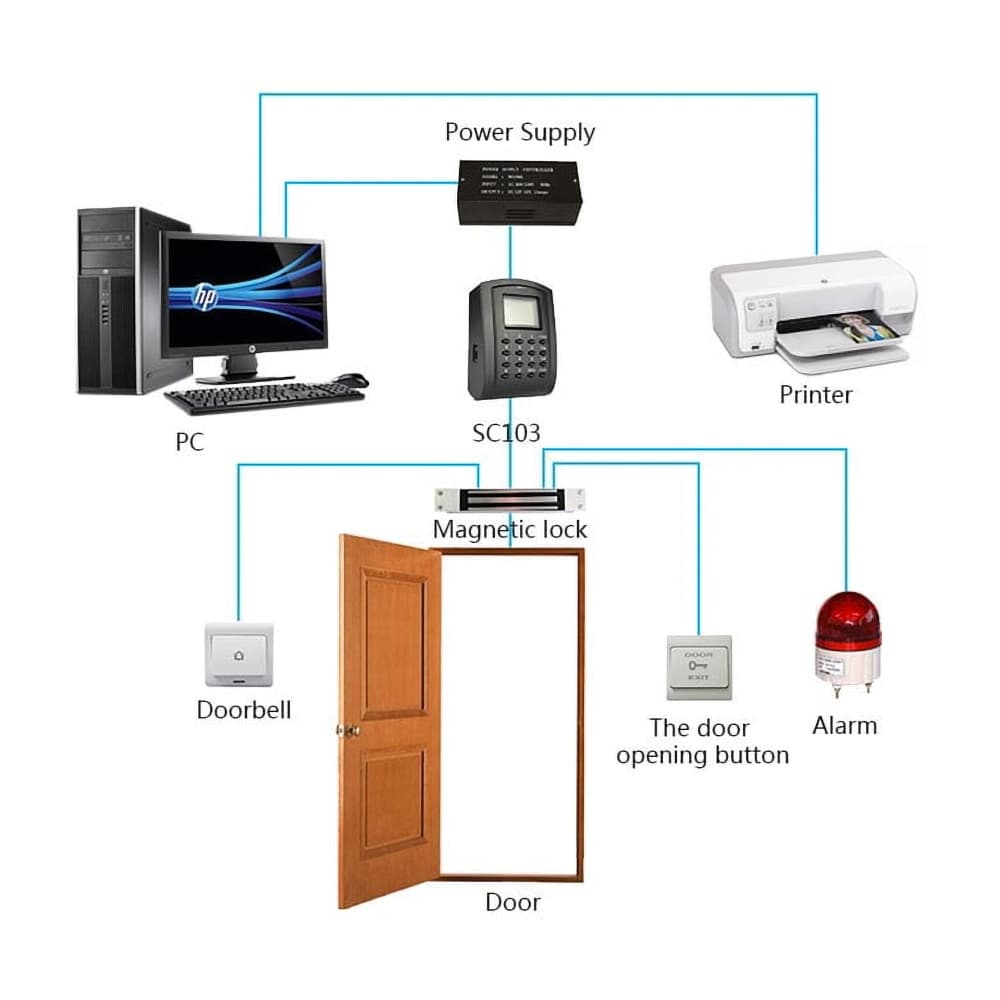

Thanks to the simplicity of installation and the included software, the device allows you to quickly build your own work time registration system combined with access control. The work time recorder has connection interfaces for controlling external devices such as: electronic lock, alarm, exit button, door alarm sensor. The recorder has a built-in loudspeaker and an LED to confirm the completion of user authorization operations.
Working time records

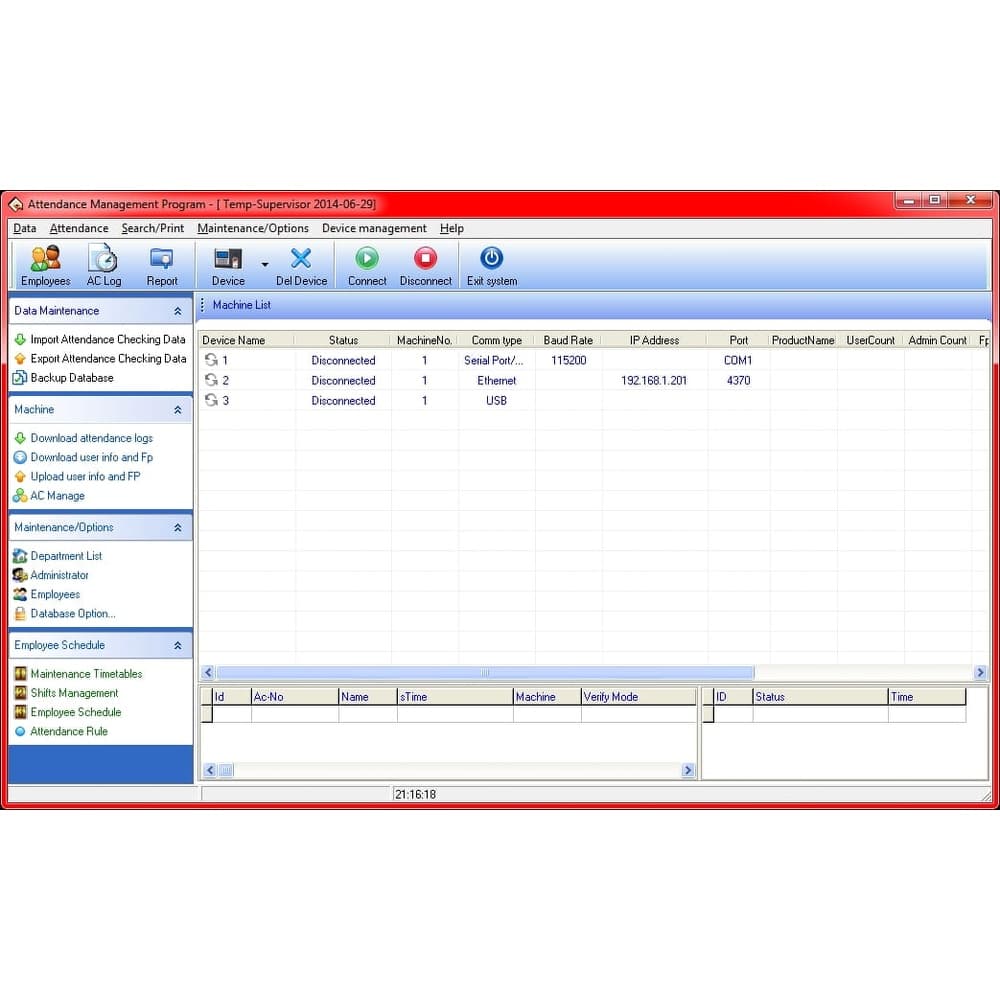

The device is supplied free of charge with complete working time control software (attendance management) along with instructions in English (247 pages). The software allows you to determine working time by department, define rules for automatic identification of lateness/absence, configure days off and holidays, and comprehensive reporting for human resources management (HR).
Access control

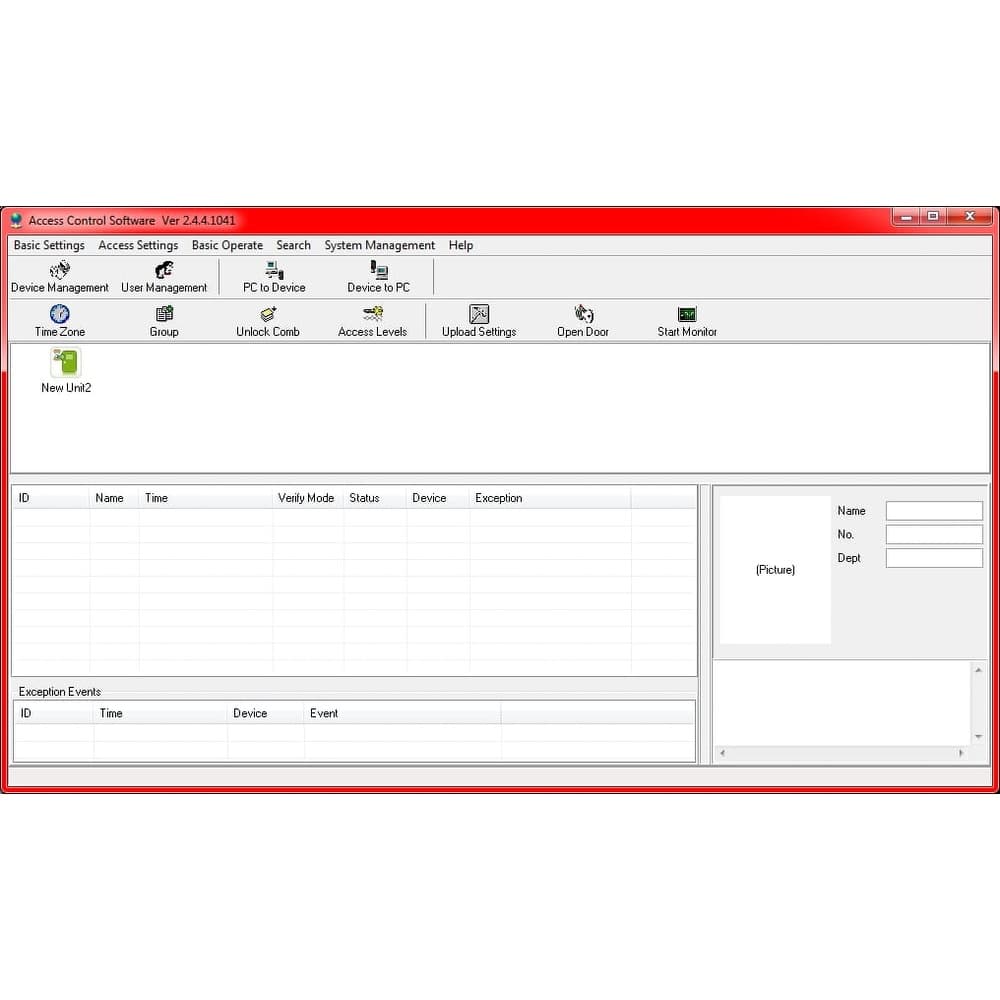

The device comes with access control software along with instructions in English (93 pages).
Interface programming API
The work time recorder is supplied with an SDK programming interface, making it an ideal solution for building your own access control/work time recording software. Provided free of charge, the SDK / API includes:
High-quality documentation in English (111 pages)
Libraries for RS, USB, TCP/IP communication
C# and VB.NET source codes - 11 projects illustrating the performance of key operations: working with logs, managing proximity cards, device configuration, authorization management, user data management, etc...
Communication

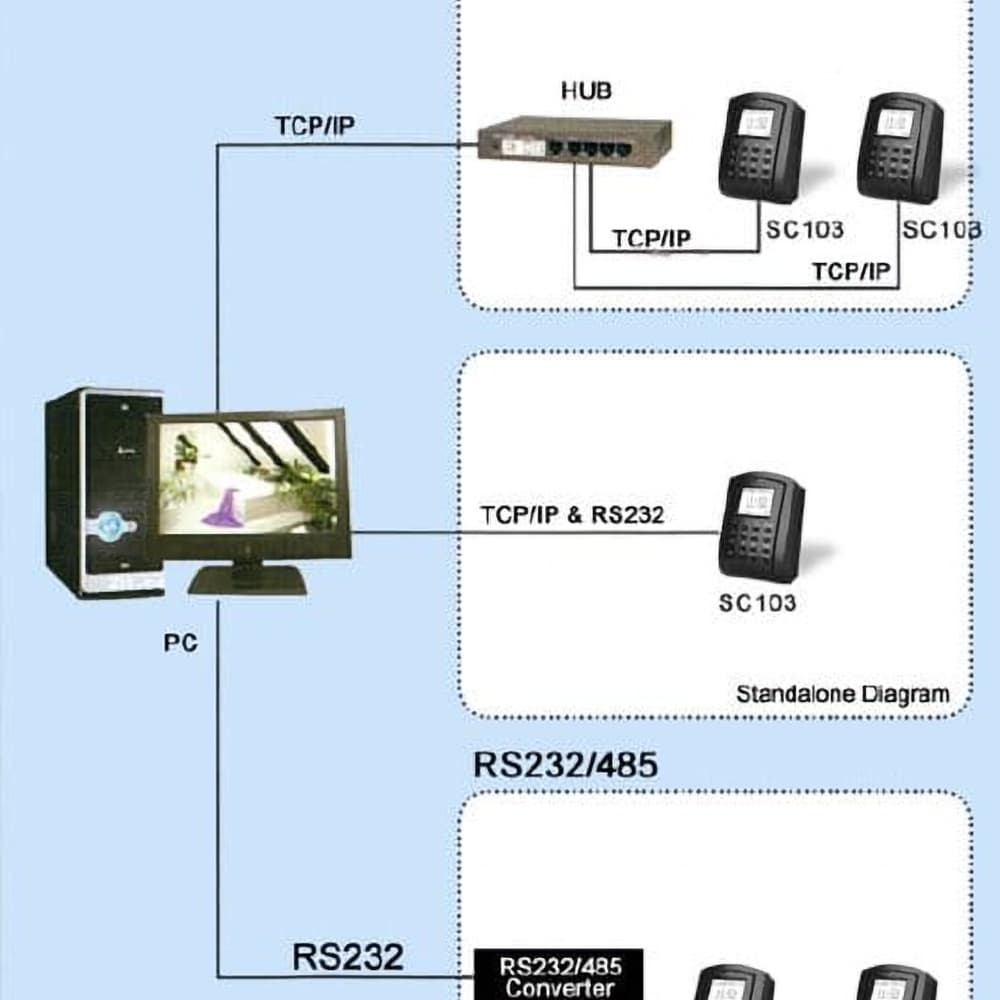

The work time recorder has the following connection interfaces:
- Wiegand in: for master-slave communication with an external reader
- Wiegand out: for connection to an external panel as a reader
- TCP/IP or RS232/485 for communication from a computer PC

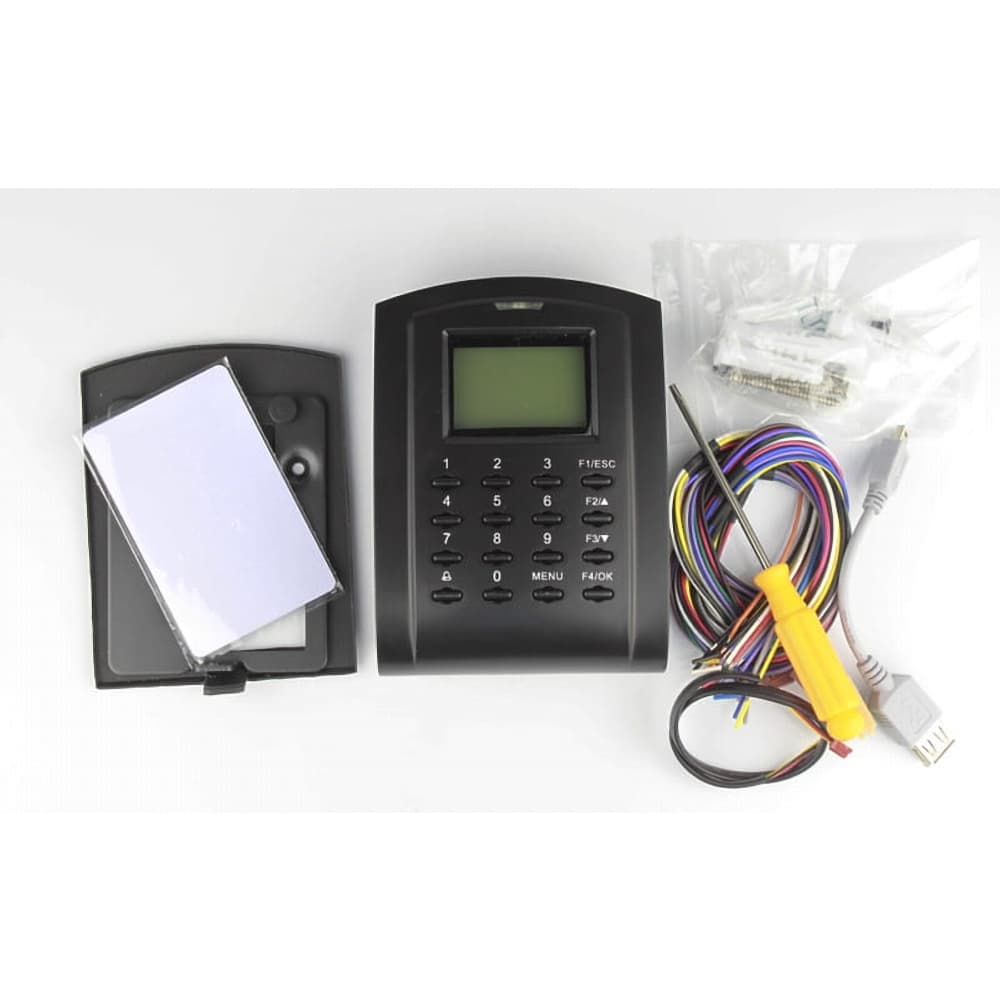

Package contents
The set includes everything necessary to implement your own access control system:
Working time recorder
Installation instructions in paper form in English
Software (access control system, working time recording system)
SDK / API in .NET technology
Cables connection with the necessary connectors
Mounting bracket
Mounting pins
USB cable
Screwdriver
RFID software
Are you interested in creating custom software for this device?
Quality
The product is manufactured in compliance with the highest quality control standards. We provide a 12-month warranty for the device through the manufacturer. We encourage you to read information about the device manufacturer.
