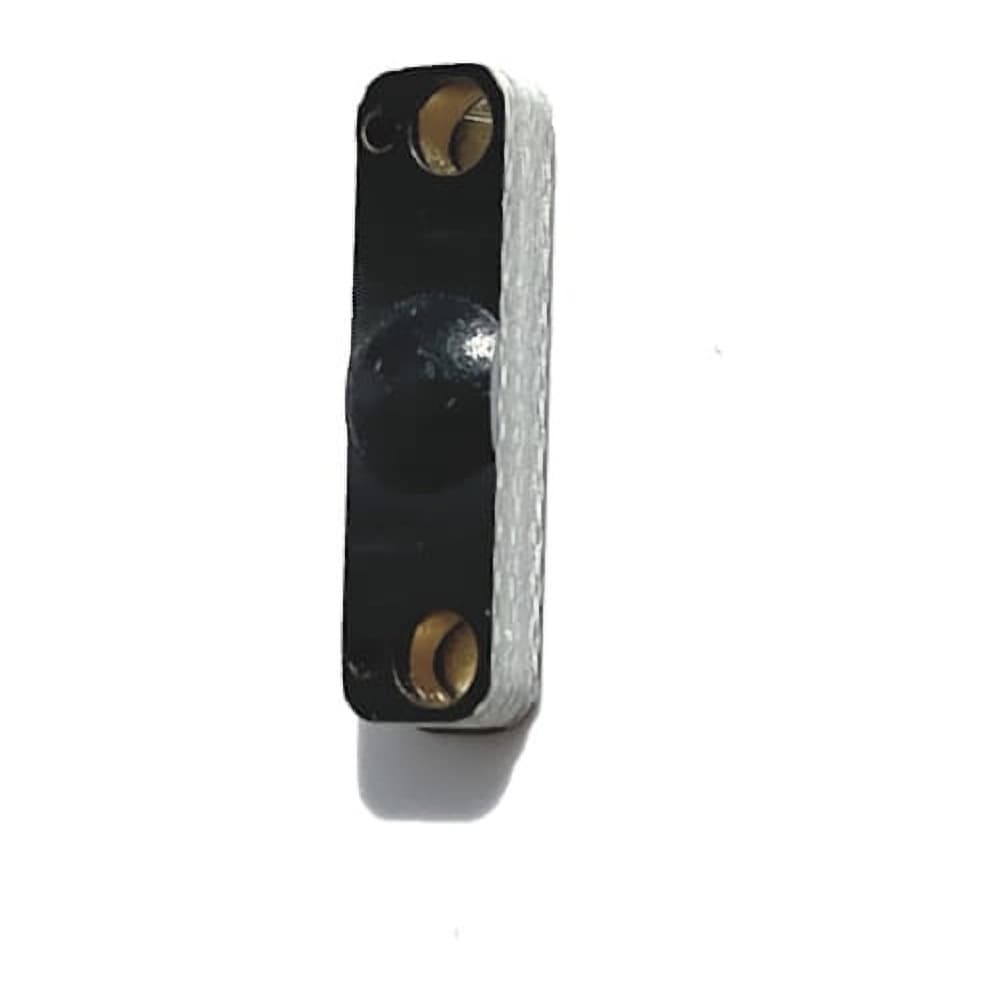

UHF PCB RFID Tool Tracker TAG

UHF RFID tags for tool monitoring:

Small size: 15 x 4 mm
Passive UHF RFID system: Alien Higgs 3
Can be applied to metal
Can be used outdoors
Designed for intensive use
Increased resistance to mechanical damage

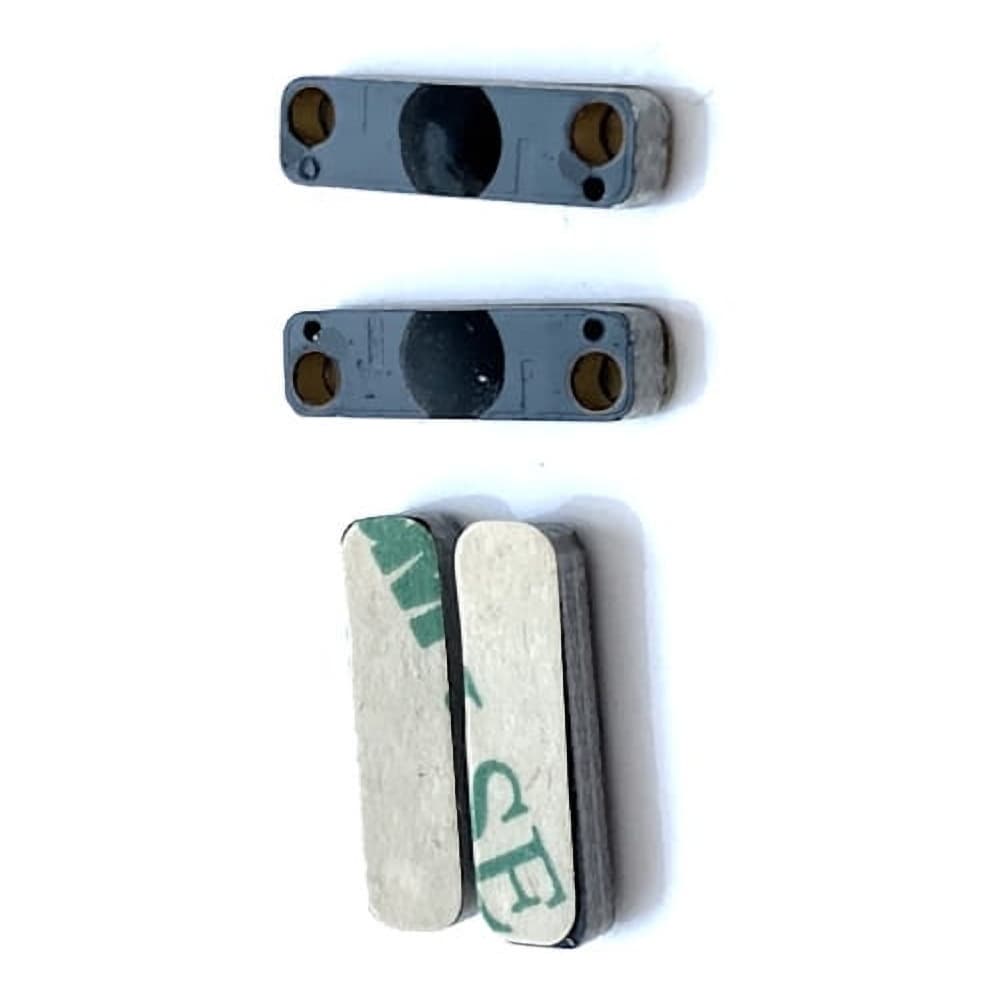

Self-adhesive layer and two mounting holes

RFID UHF - monitoring and identification tools

The small size of the markers allows them to be easily applied to compact and medium-sized tools. The use of epoxy laminate and glass fiber guarantees increased durability of the offered UHF RFID tags:

water resistance
dust resistance
resistance to direct application of aggressive chemicals
resistance to low and high temperatures
increased resistance to mechanical damage
high resistance to atmospheric conditions
possibility of use in production halls

Alien H3 UHF RFID tags

RFID system: Alien Higgs 3
Operating frequency: 860-960 MHz
Maximum wireless identification range: 220 cm
Work on surfaces metal: yes
Operating temperature: -40℃ - +150℃
Short-term resistance to high temperatures exceeding even 200℃
Tightness: IP68 standard
Dimensions: 15x4x2mm (2.8mm thick at the central point), two mounting holes with a diameter of 2mm
Weight: 0.7g

TAG RFID 9662 Alien H3

UHF RFID tags intended for tool monitoring are equipped with the Alien H3 RFID chip operating in the frequency range of 860 - 960 MHz.

Memory of the Alien H3 RFID UHF chip:
EPC 96b
User Memory 512b
TID 64b
Access configuration 32b

UHF RFID tags for tool identification do not have an internal power supply. Information is exchanged when the RFID tag is wirelessly powered by the RFID UHF reader.

RFID UHF

EPCglobal Gen2

ISO/IEC 18000-6C
