UHF UCODE9 long range RFID tags
Long range UHF EPC 96 bit RFID tags
UCODE 9 UHF labels
Self-adhesive RFID UHF NXP UCODE 9 labels of the new generation in a large size of 73 x 15 mm.
The most important advantages of the product:
- large antenna size (70 x 12 mm) ensuring large reading range
- fast and stable communication
- identification of multiple UHF RFID tags in a unit of time (Anti-Collision)
- new generation UCODE 9 system designed toincrease efficiency, while at the same time limiting the amount of aluminum used in production
- programmable value EPC 96bit (Gen2)
- cooperation with all popular readers RFID UHF ISO 18000-6C
- low price
Offered by us self-adhesive UHF RFID labels are commonly used in:
- identification of products and semi-finished products in the supply chain management process
- monitoring of fixed assets
- warehouse management automation
Large range of RFID UHF UCODE 9 labels

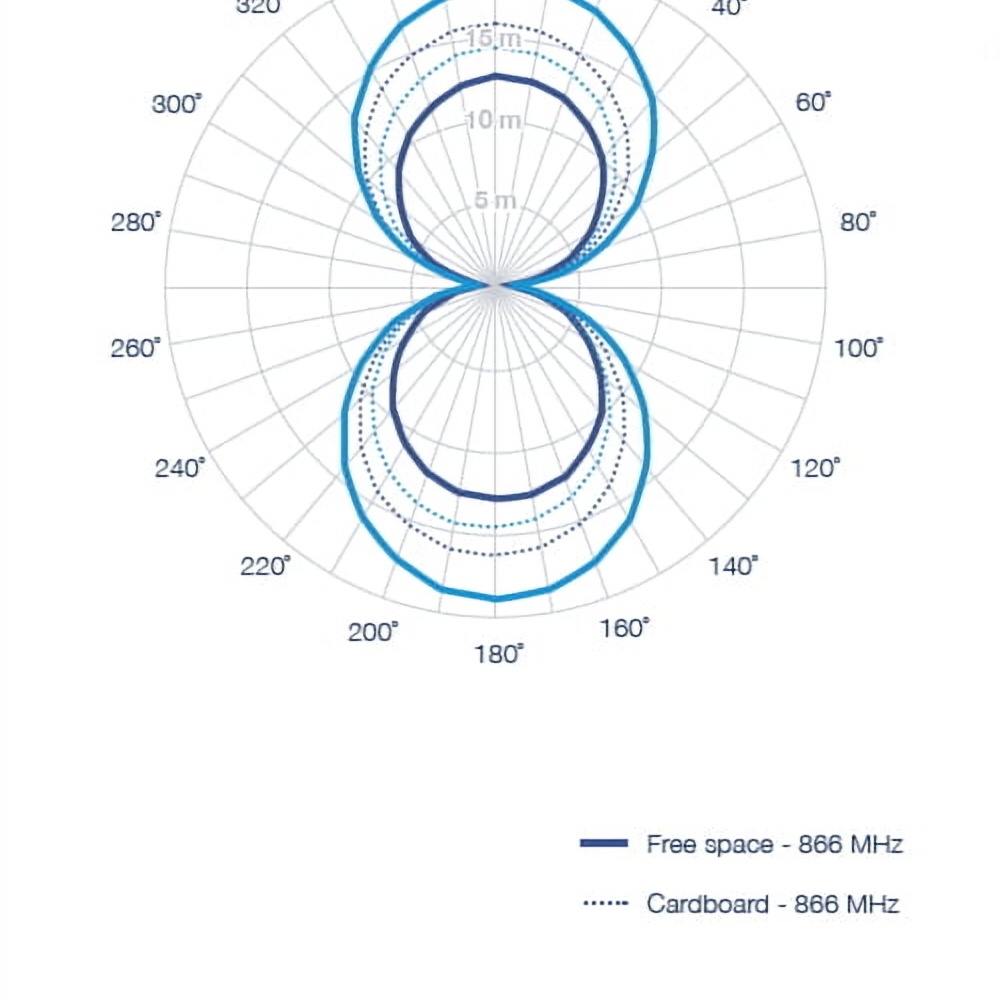

Theoretical maximum Thereading range of the offeredUHF RFID tags is presented in the attached diagram. The actual range achieved depends on many factors (reader used, environmental conditions, method of applying UHF labels, etc.) and may differ from the data presented.
UHF RAIN RFID labels
EPC 96 bit (GEN2 v2)
TID 96 bit
Unique serial number 48 bit (encoded in TID)
RFID UHF EU frequency: 860 - 960 MHz
Information recording speed: 0.96 ms (32 bit)
Sensitivity (read / write): -24 dBm / -22 dBm

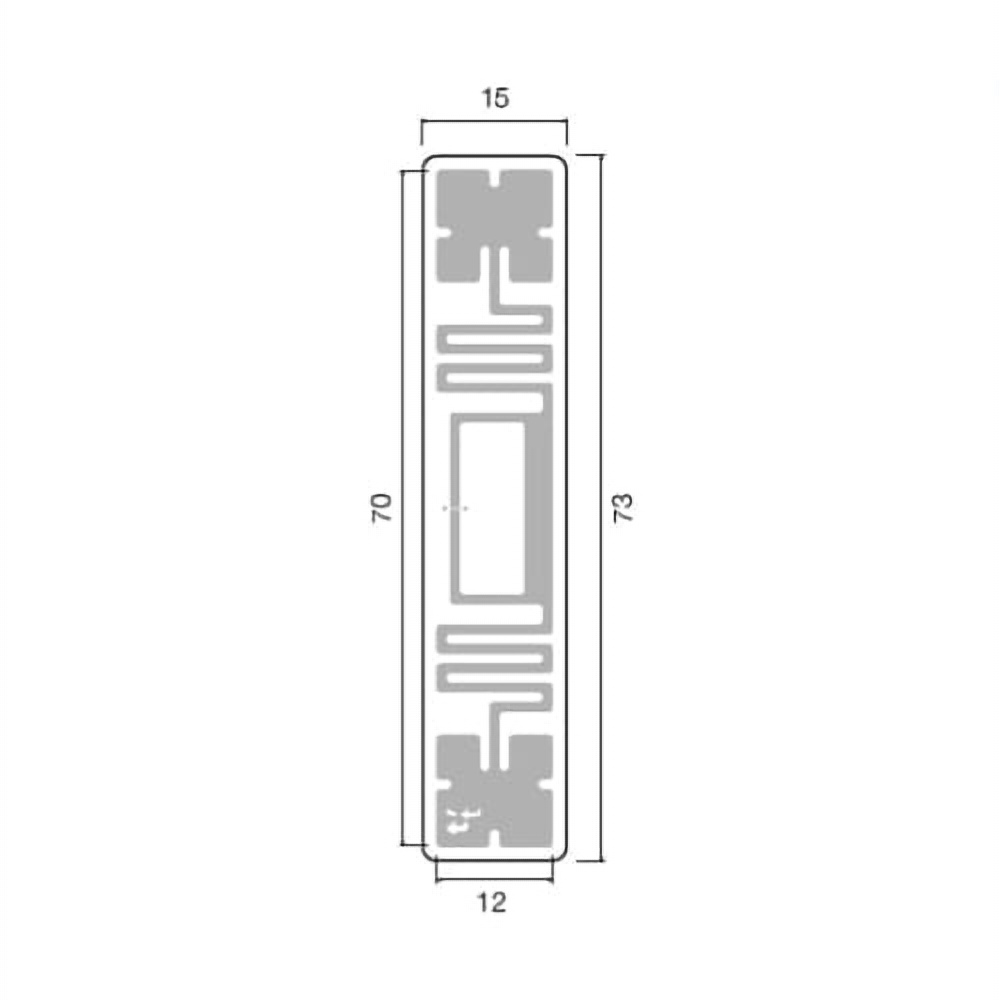

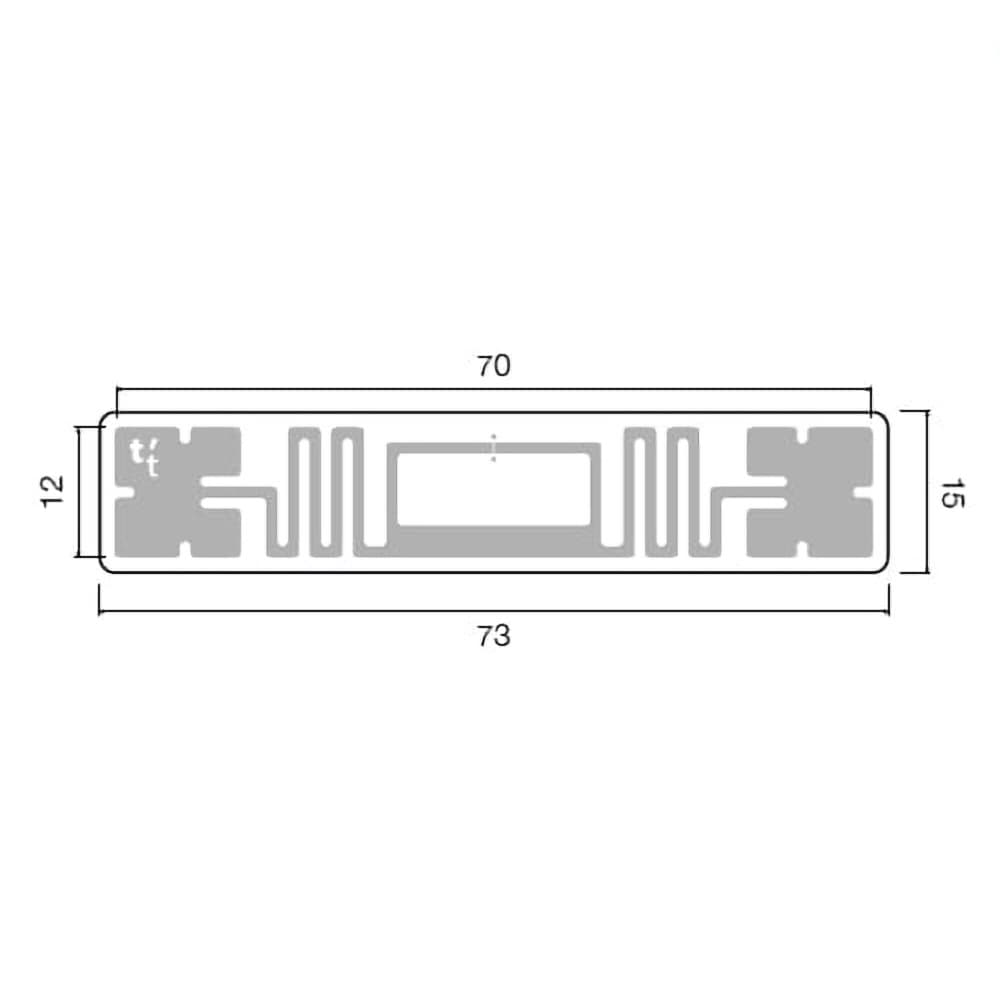

Antenna size: 70 x 12 mm
Maximum range: 10 - 16 m
Number of declared coding cycles: 100,000
Data retention: 20 years
Passive label: yes
Battery powered: no
RFID UHF compatibility
ISO 18000-6C
EPC Global C1 GEN2 v2
RAIN RFID
